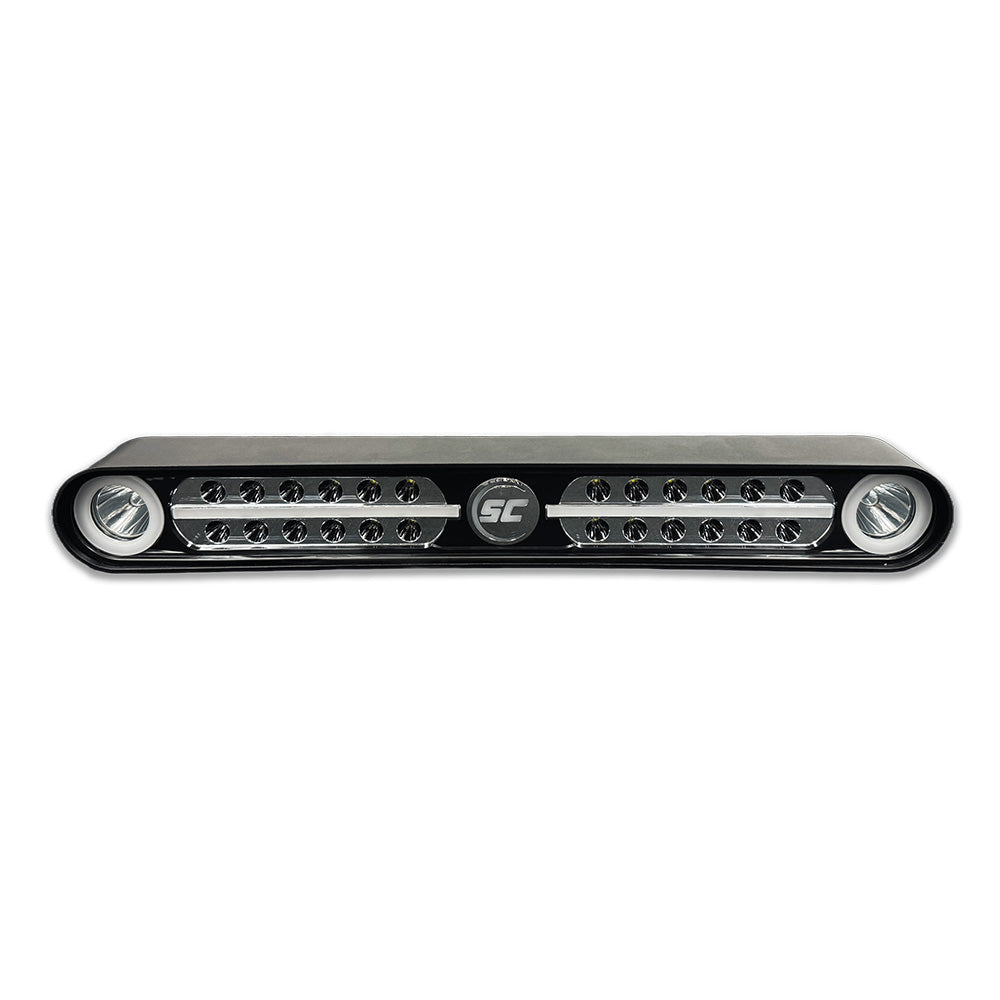

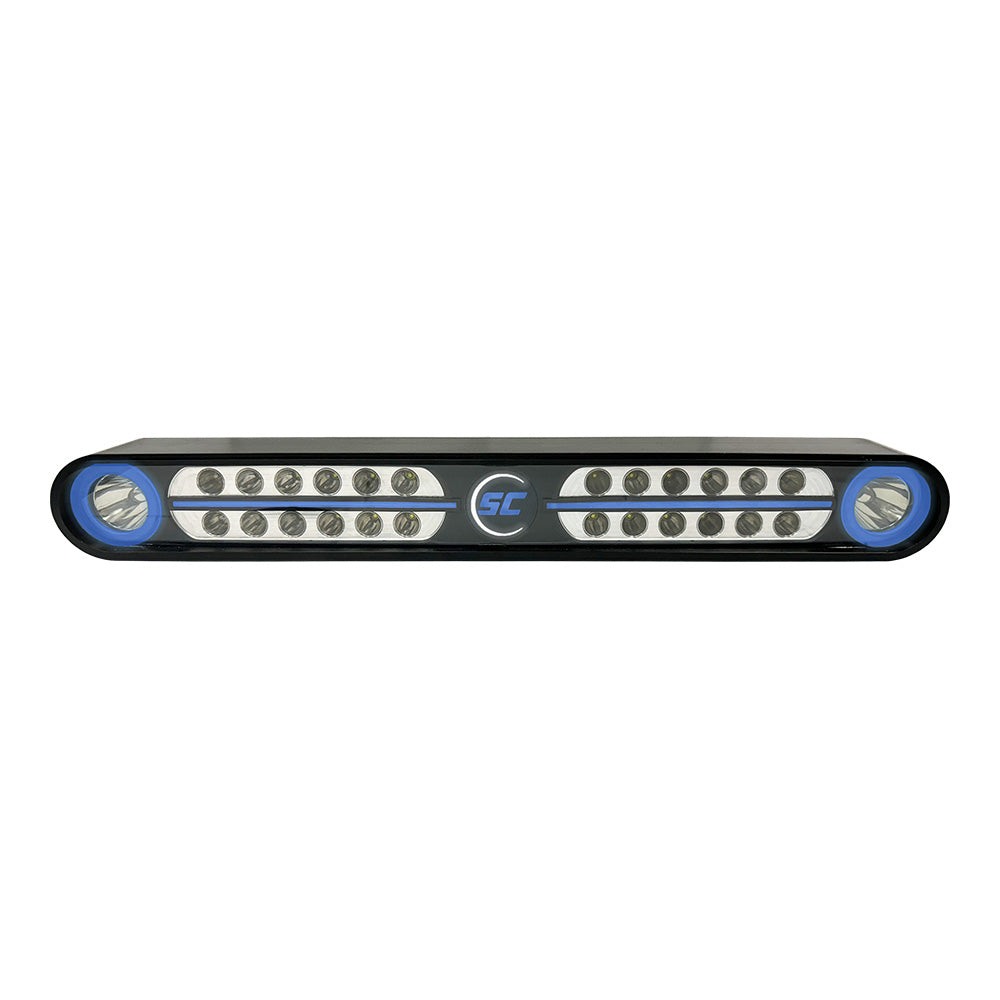

Shadow-Caster Eagle Ray LED Light Bar - Black Housing Dual Optics

The Eagle Ray LED Light Bar by Shadow-Caster delivers unparalleled illumination for your marine adventures, combining advanced automotive lighting technology with innovative beam shaping optics. Designed for boaters who demand reliability and performance, this dual-optic light bar ensures both long-distance visibility and wide-area lighting, enhancing safety and navigation in all conditions.

Unmatched Dual Optics for Superior Lighting

The Eagle Ray features a cutting-edge combination of focused, laser-driven white light beams and a broad 60-degree LED flood array. Whether you're navigating through fog, rain, or mist, the Eagle Ray's adjustable beam ensures you have clear, long-distance visibility, while the wide flood lights illuminate your immediate surroundings with exceptional clarity.

Laser-Driven White Lights

• Automotive-grade laser-driven white lights for bright, reliable illumination
• Blue halo illumination around optics indicates the current power state
• Adjustable beam angle from 5° to 100° via push button or Shadow-Caster® NMEA 2000 Light Commander interface

60-Degree LED Flood Array

• Equipped with 24 high-intensity white LEDs
• Blue accent light strips signify brightness levels for easy adjustments
• Wide 60-degree beam angle for comprehensive area lighting
• Adjustable brightness settings accessible through a switch or MFD interface

Advanced Technical Specifications

Feature	Details
Lumens	20,000 lumens
Housing	Billet Aluminum in Black Finish
Power Trigger	Remote power trigger for simplified installation
Window	Borosilicate Glass
Input Voltage	10-30V
Maximum Power	200W
Current Draw	16.5A at 12V DC
Dimensions	2.5” H x 20” W x 5.4” D (65.3 x 506.5 x 136.9mm)

Flexible Control Options

On/Off Push Buttons

Easily operate your Eagle Ray Light Bar with intuitive push buttons. Click to turn the laser and flood lights on or off. Press and hold to adjust the laser beam angle or floodlight brightness, providing quick and convenient control right at your fingertips.

Standard Marine Rocker Switch

Integrate seamlessly with your marine setup using the standard rocker switch. Click the switch to toggle the lights, or press and hold to fine-tune the beam angle and brightness, ensuring your lighting is always tailored to your needs.

Shadow-NET® / NMEA 2000 Control

Experience ultimate control with the Shadow-NET® Light Commander through your Multi-Function Display (MFD). Adjust brightness and beam angle independently, and create or store custom lighting scenes for effortless operation during night navigation.

Note: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
