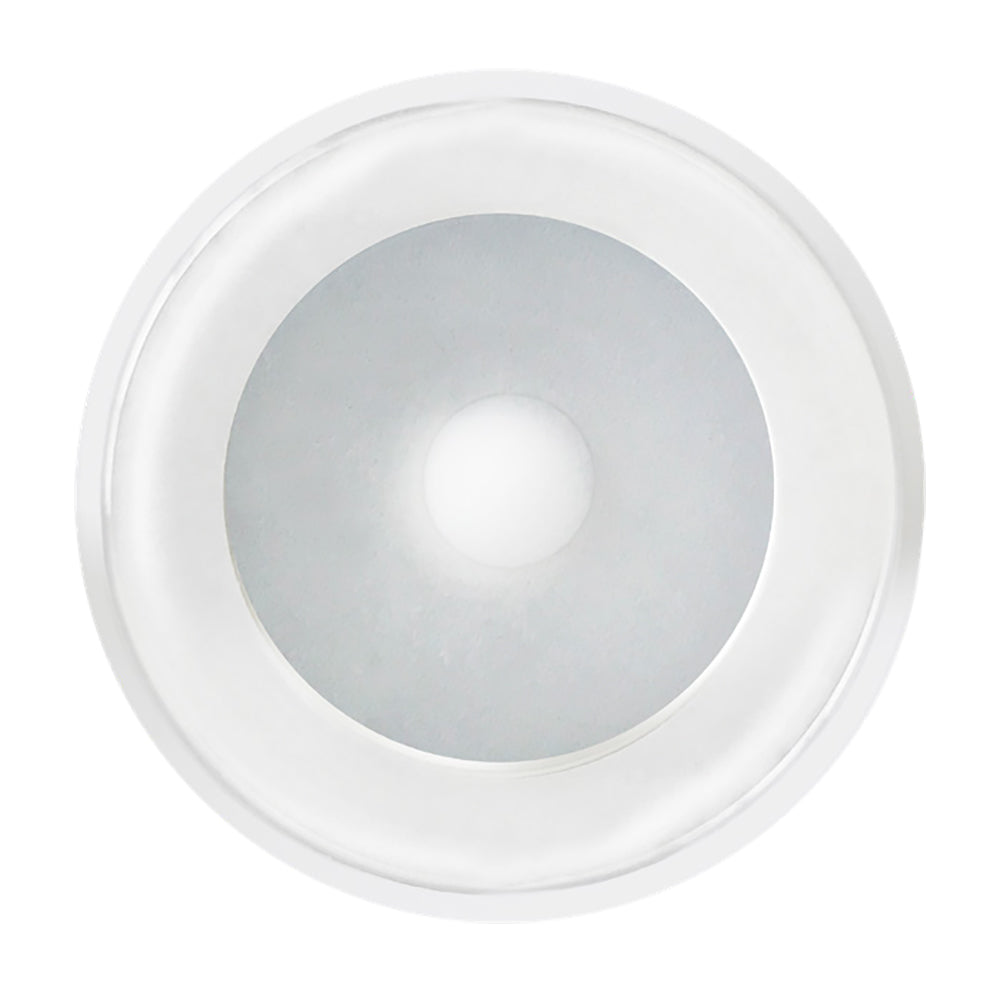

Shadow-Caster DLX Series Down Light - White Housing - Full-Color

The Shadow-Caster® Large Down Light (SCM-DLX) is expertly designed to illuminate both the interior and exterior spaces of your boat or yacht. With its compact 3” diameter and wide-angle light spread, this versatile down light is perfect for T-Tops, cabins, towers, and other critical areas on your vessel. Available in single color white, multi-color options (white, blue, and red), and full-color versions, the SCM-DLX series offers customizable lighting solutions to enhance your marine environment. Choose from elegant white, sleek black, or polished chrome finishes and enjoy effortless control over brightness and color using a standard switch.

Key Features

• Soft start technology gently ramps up brightness over 2 seconds for a smooth lighting experience
• Power toggle feature allows you to easily set brightness levels and change colors
• True white LED ensures superior color performance and clarity
• Wide 120-degree viewing angle provides extensive light coverage
• High-efficiency switch mode power supply for reliable performance
• Durable, waterproof low-profile aluminum housing designed to withstand marine conditions
• Available in white, black, or polished chrome finishes to match your boat’s aesthetic
• All-glass reveal offers a modern and sleek appearance

Specifications

Feature	Details
Light Output	300 lumens
Beam Angle	120 degrees
Power Draw	3 watts
Input Voltage	10-30 volts
Current	250mA at 12 volts, 125mA at 24 volts
Color Temperature	6200 Kelvin cool white
Dimensions	3” (76mm) OD, 0.175” (4mm) mounting height
Mounting Hole	2 inches
Ingress Protection	IP67 waterproof design
Lens	Durable glass lens
Control Interface	Color change version includes Shadow-NET® interface for advanced control

What’s Included

• Shadow-Caster® Large Down Light (SCM-DLX)
• Flush-mounting bracket with three #4 X 0.5” SS316PH stainless steel screws
• Quick start guide for easy installation
• Standard 2-year warranty for peace of mind

Why Choose SCM-DLX for Your Boat or Yacht?

The SCM-DLX series is engineered to meet the demanding needs of marine environments. Its waterproof aluminum housing and durable glass lens ensure long-lasting performance, even in harsh weather conditions. The all-glass reveal not only provides a contemporary look but also enhances light diffusion for optimal illumination. Whether you're upgrading your boat’s lighting system or outfitting a new vessel, the Shadow-Caster® Large Down Light offers unmatched quality, versatility, and style.

Easy Installation and Control

Installing the SCM-DLX down light is straightforward with the included flush-mounting bracket and stainless steel screws. Once mounted, you can effortlessly control the light’s brightness and color settings using a standard switch, thanks to the integrated power toggle feature. For versions equipped with the Shadow-NET® interface, advanced control options allow for seamless integration with your boat’s existing lighting system, providing enhanced customization and convenience.

Enhance Your Marine Lighting Today

Upgrade your boat or yacht with the Shadow-Caster® Large Down Light (SCM-DLX) and experience superior lighting performance tailored for marine applications. Its combination of high-efficiency LEDs, robust construction, and customizable features make it the perfect choice for discerning boaters seeking reliable and stylish lighting solutions.
