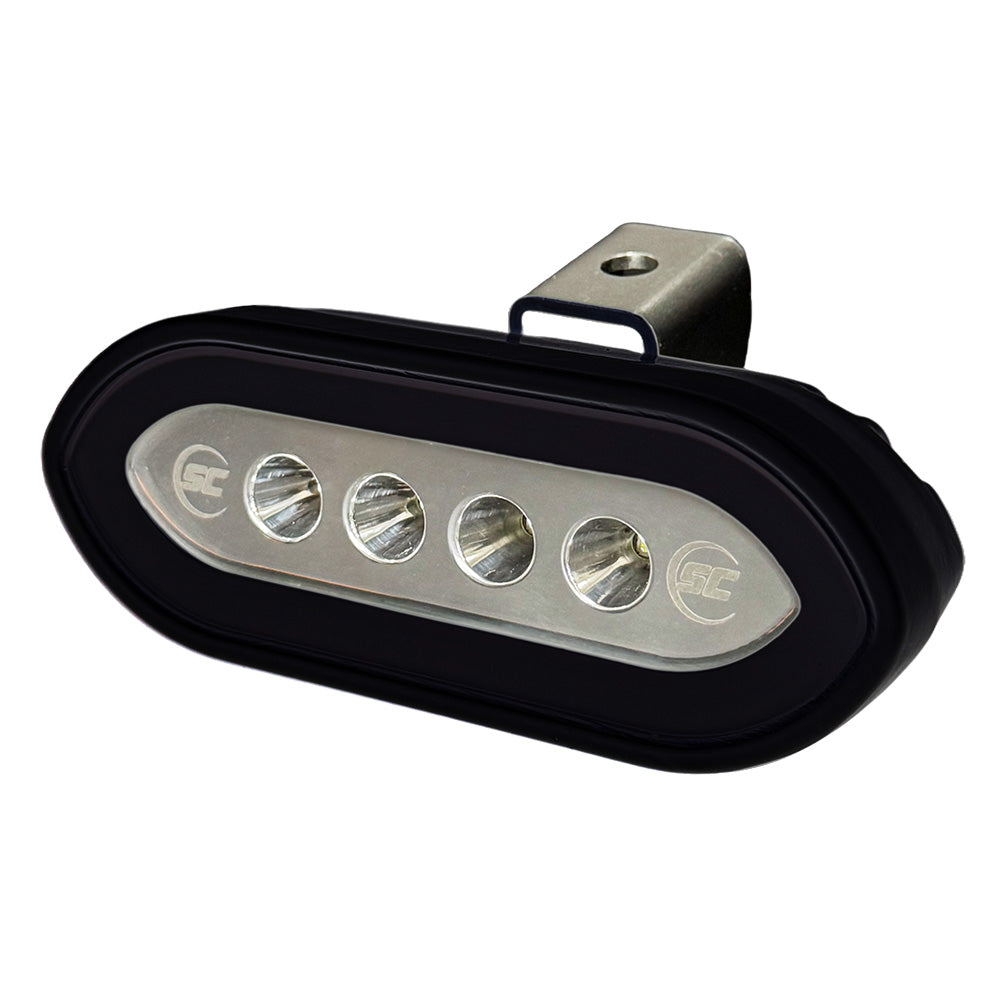

Shadow-Caster Bracket Mount Spreader Light - Black Housing - White

The Shadow-Caster 4X Bracket Mount Spreader Light is meticulously designed to deliver superior illumination for decks and expansive areas on your boat or yacht. Whether you're enhancing a new installation or upgrading an existing setup, this spreader light offers robust performance and reliability tailored for marine environments.

Key Features

• Soft Start Technology: Gradually ramps up brightness over 2 seconds, ensuring a smooth transition and protecting the LED lifespan.
• Adjustable Brightness: Utilize the power toggle feature to easily set your preferred brightness level.
• Premium LED Performance: Equipped with cool white LEDs (6200 Kelvin) for optimal visibility and reduced eye strain during night voyages.
• Efficient Power Supply: High-efficiency switch mode power supply minimizes energy consumption while maximizing output.
• Durable Construction: Housed in waterproof aluminum casing (IP67 rated) to withstand harsh marine conditions.
• Glare-Reducing Reflector: Unique parabolic reflector design ensures a focused 60-degree beam while minimizing glare for a comfortable viewing experience.

Technical Specifications

Output	3000 lumens
Beam Angle	60 degrees
Power Draw	20 watts
Input Voltage	10-30 volts
Current Draw	1.5 amps
Color Temperature	6200 Kelvin (Cool White)
Dimensions	4.25” (108mm) L x 1.6” (41mm) W x 2.8” (71mm) H
Waterproof Rating	IP67
Lens Material	Durable Glass

What's Included

• Shadow-Caster 4X Spreader Light
• 3’ (1m) Submersible Grade Cable
• Stainless Steel 316 Bracket
• Standard 3-Year Warranty

Control Options

Customize your lighting experience with versatile control methods:

• Standard Switch: Easily manage brightness levels with a traditional switch.
• Shadow-Caster Light Commander: Advanced controller for seamless brightness adjustments.
• NMEA 2000 Interface: Integrate with your vessel's network for automated lighting control.

Additional Resources

For more detailed information, please refer to the following documents:

• Quick Guide (PDF)
• Brochure (PDF)
