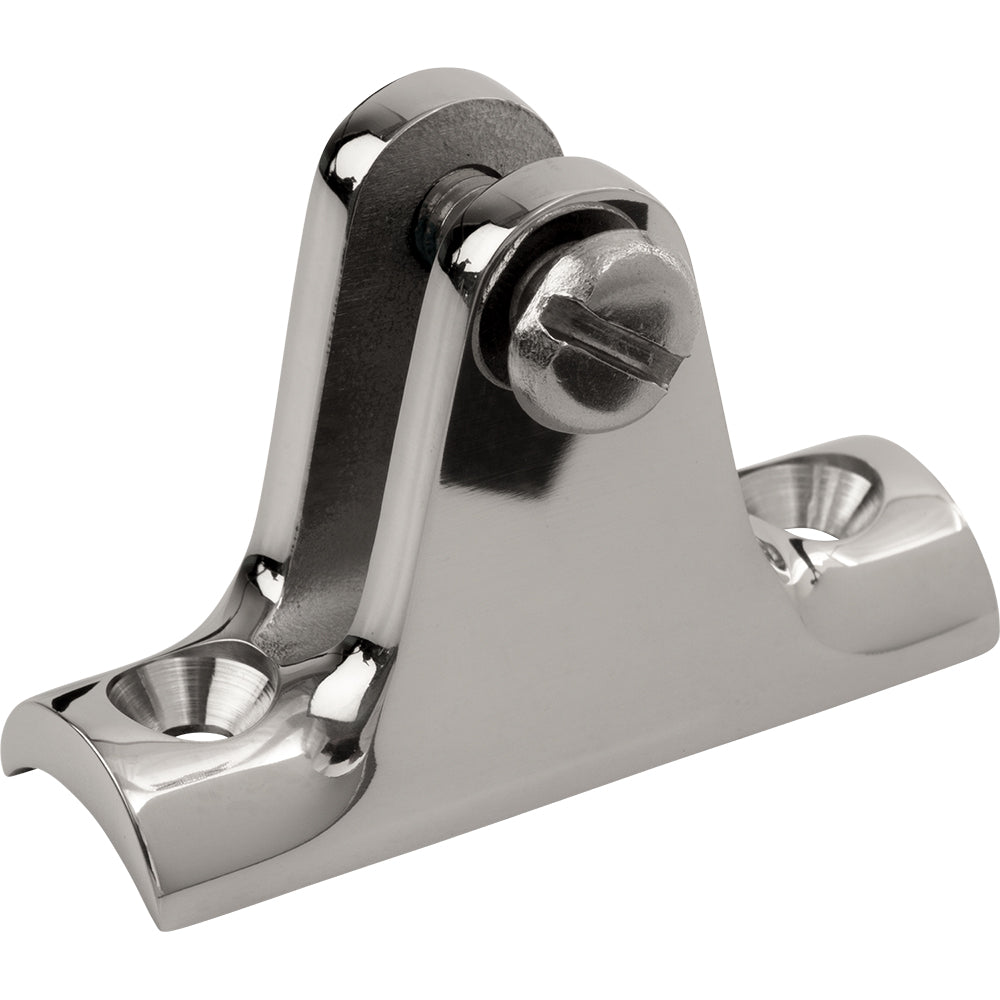

Sea-Dog Stainless Steel 90 Concave Base Deck Hinge

The Stainless Steel 90° Concave Base Deck Hinge is engineered for optimal performance in marine and boating applications. Its robust design ensures secure attachment and long-lasting durability, making it an essential component for various deck installations.

Key Features

• Designed for horizontal mounting in Bimini top applications
• Concave hinge allows rail mounting on 7/8” tubing
• Angled hinge option for installation on sloped gunwales
• Constructed from UV-stabilized injection molded nylon for enhanced durability
• 3/16” pin size ensures a secure connection
• Installation requires two #10 FH fasteners (not included)
• Available in sleek black or classic white finishes

Specifications

Material	UV-stabilized injection molded nylon
Pin Size	3/16”
Mounting Type	Horizontal or Angled
Compatible Tubing	7/8” tubing
Fasteners Required	Two #10 FH fasteners (not included)
Available Colors	Black, White

Installation Instructions

Installing the Stainless Steel 90° Concave Base Deck Hinge is simple and straightforward. Follow these steps to ensure a secure and stable installation:

1. Position the hinge horizontally or at the desired angle on the mounting surface.
2. Align the hinge with the 7/8” tubing rail for concave mounting.
3. Secure the hinge using two #10 FH fasteners, ensuring they are tightly fastened.
4. Attach the eye end of the hinge to the tubing in your Bimini top or other applications.
5. Verify that all connections are secure and the hinge operates smoothly.

Color Options

• Black: Provides a sleek and modern look that complements most marine finishes.
• White: Offers a clean and classic appearance, ideal for traditional boat designs.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
