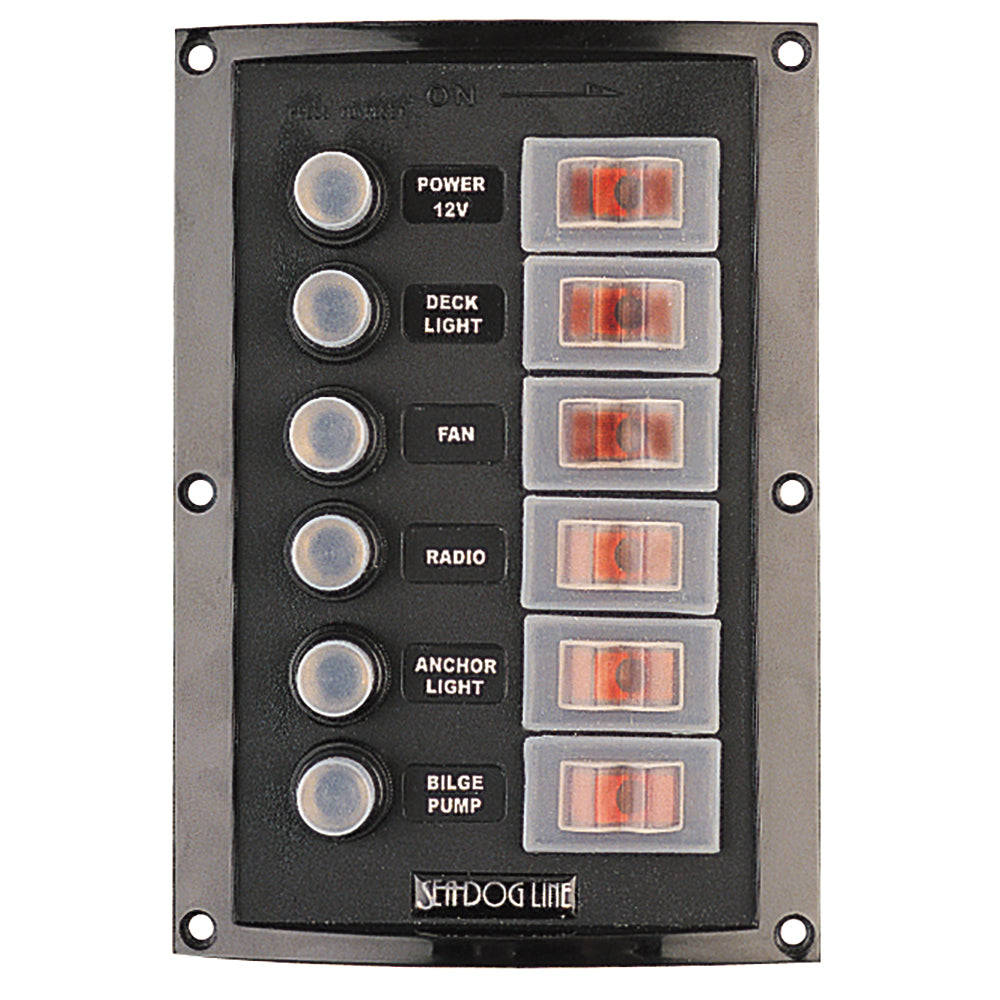

Sea-Dog Splash Guard Circuit Breaker Panel - 6 Circuit

The Splash Guard Vertical 6-Gang Breaker Rocker Switch Panel is designed specifically for marine and boating applications, ensuring reliable performance in environments exposed to light spray and water. Constructed from durable injection-molded nylon, this fire-resistant panel offers both functionality and protection for your vessel's electrical systems.

Key Features

• 6 illuminated SPST On/Off rocker switches with 15A, 12VDC rating
• 6 thermal AC/DC circuit breakers: two 3A, two 6A, one 8A, and one 10A
• Maximum individual circuit rating of 10A and a total of 37A
• Additional sizes available (420805-420810) to suit various applications
• Splash guard switch covers to protect against light spray and water
• Fire-resistant construction ideal for engine room compartments
• Includes mounting gasket and a sheet of 20 preprinted decals for customization
• Easy installation with six #6 RH fasteners (not included)
• Operates on 12VDC power supply

Technical Specifications

Feature	Specification
Switches	6 x 15A, 12VDC Illuminated SPST On/Off Rocker Switches
Circuit Breakers	2 x 3A, 2 x 6A, 1 x 8A, 1 x 10A (Thermal AC/DC)
Maximum Current	Individual Circuit: 10A Total: 37A
Material	Injection Molded Nylon
Mounting	Includes Gasket Requires Six #6 RH Fasteners
Dimensions	Available Sizes: 420805-420810
Power Supply	12VDC

Why Choose the Splash Guard Circuit Breaker Panel?

Designed with the harsh marine environment in mind, this breaker panel provides robust protection against electrical hazards while ensuring ease of use. The splash guard covers prevent light spray and water from compromising the electrical components, making it ideal for engine rooms and other critical areas on your boat.

The illuminated rocker switches offer clear visibility, allowing for easy operation even in low-light conditions. With customizable decals, you can label each circuit to match your specific setup, enhancing organization and efficiency onboard.

Installation and Customization

Installing the Splash Guard Circuit Breaker Panel is straightforward with the included mounting gasket and recommended fasteners. Customize your panel with the preprinted decals provided, ensuring each switch and breaker is clearly labeled for your boating needs.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, visit P65Warnings.ca.gov.
