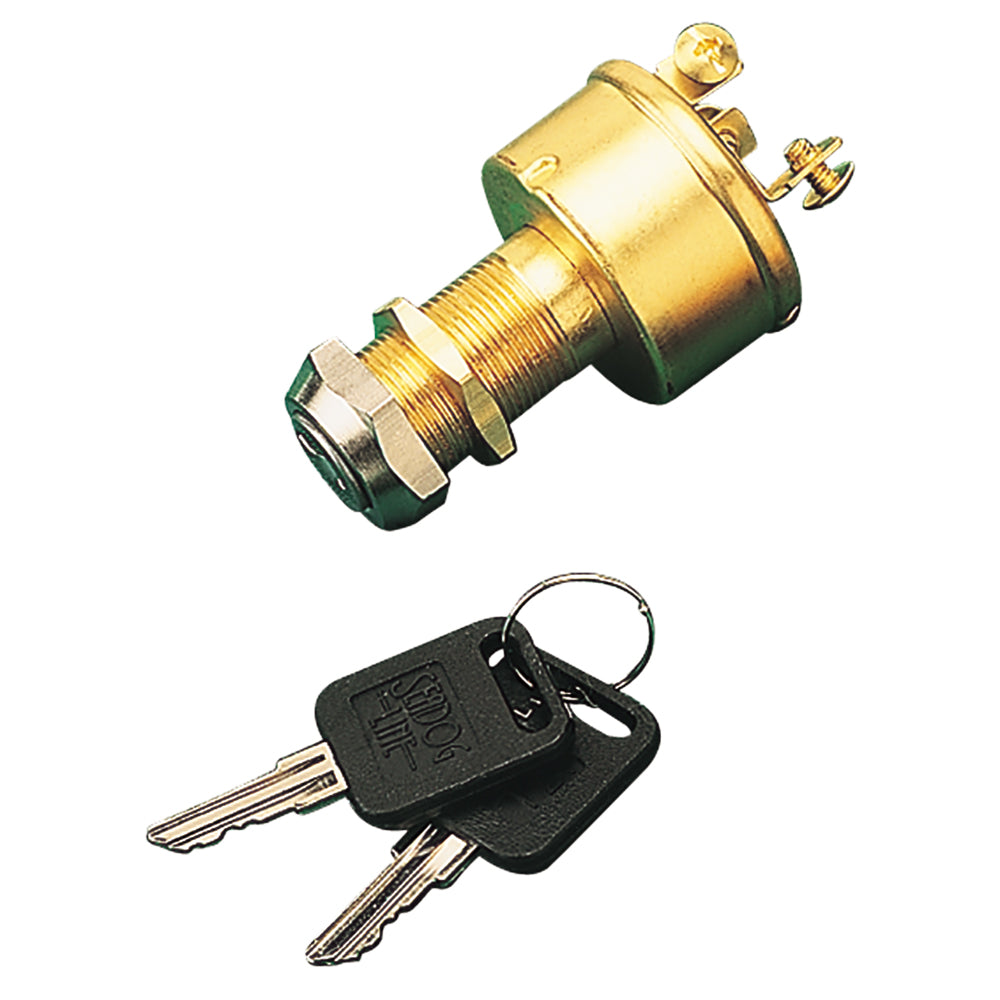

Sea-Dog Brass 3-Position Key Ignition Switch

The Brass 3-Position Key Ignition Switch is expertly crafted for marine and boating applications, ensuring reliable performance and durability in demanding environments. Whether you're navigating calm waters or facing rough seas, this ignition switch provides seamless control for off, ignition, and start functions, making it an essential component for your vessel's electrical system.

Features

• Constructed from high-quality stamped brass for enhanced durability and corrosion resistance
• Three positions: Off, Ignition, and Start for intuitive operation
• Long 13/16" diameter shaft for easy access and maneuverability
• Compatible with panel thickness up to 1-1/8”
• Includes two keys for convenient use and security
• Optional rubber boot available to protect against marine elements

Technical Specifications

Parameter	Details
Shank Diameter	13/16"
Panel Thickness	Up to 1-1/8”
Electrical Connections	Three screw terminals
Ignition Load	15A @ 12VDC
Solenoid Load	30A @ 12VDC
Included Accessories	Two keys
Optional Accessories	Rubber boot

Installation

Installing the Brass 3-Position Key Ignition Switch is straightforward. Ensure your panel thickness does not exceed 1-1/8” and use the provided screw terminals for secure electrical connections. The long shaft allows for easy placement and access, while the optional rubber boot can be added to protect the switch from moisture and debris commonly found in marine environments.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information visit P65Warnings.ca.gov.
