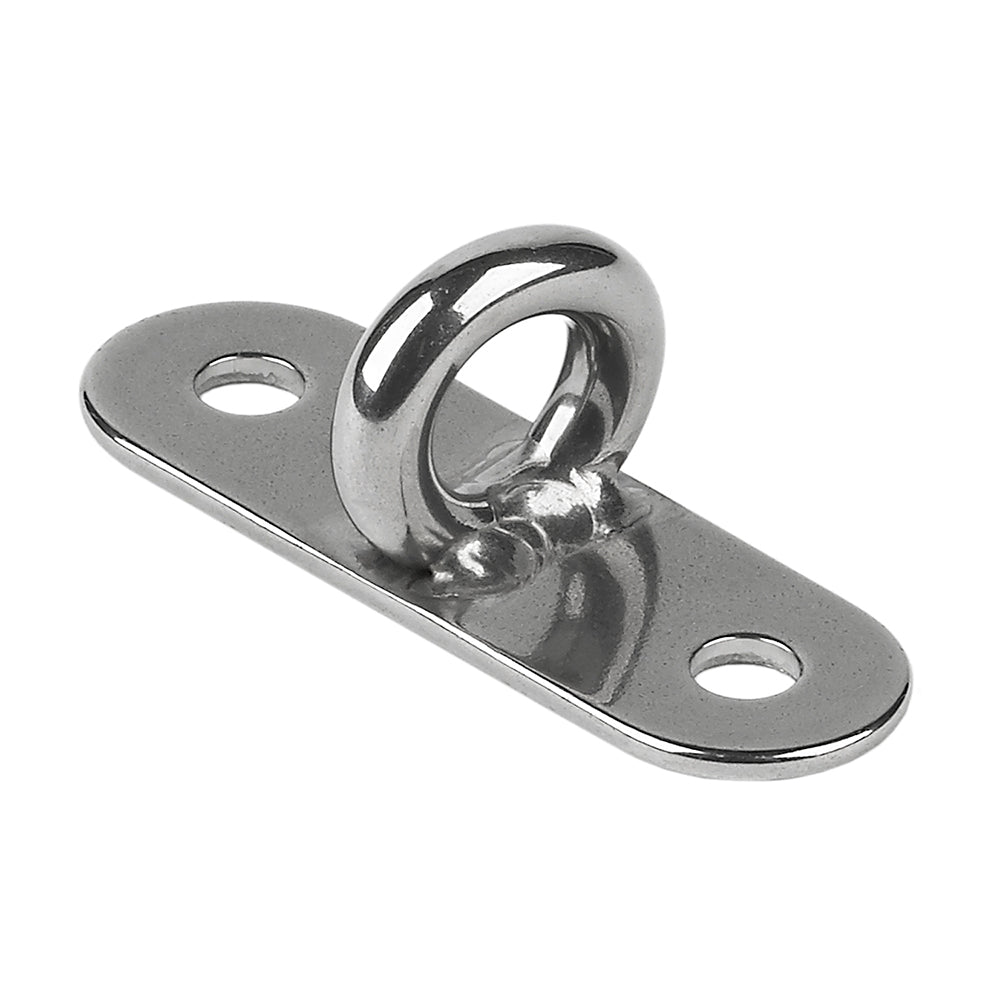

Schaefer Stainless Steel Welded Pad Eye - 1-7/8"L x 5/8"W

Enhance the safety and functionality of your marine setup with our Stainless Steel Welded Pad Eye. Designed specifically for marine and boating applications, this durable pad eye ensures reliable anchoring and secure mooring for all your nautical needs.

Features

• Constructed from high-quality stainless steel for superior corrosion resistance
• Welded design provides added strength and durability in harsh marine environments
• Suitable for a wide range of boating and marine applications
• Easy to install with included fasteners
• Load capacity of up to 250 lbs (115 kg) for secure anchoring

Technical Specifications

Dimension	Measurement
Eye Width	3/8" (10 mm)
Eye Height	3/8" (10 mm)
Eye Stock	3/16" (5 mm)
Length	1-7/8" (48 mm)
Width	5/8" (16 mm)
Fasteners	2 x #10 RH (5 mm)
Center-to-Center (C/C)	1-5/16" (33 mm)
Safe Working Load (SWL)	250 lbs (115 kg)
Weight	0.5 oz. (14 g)

Additional Information

• Color: Stainless
• Box Dimensions: 1"H x 2"W x 4"L
• Weight: 0.05 lbs
• UPC: 740507007774

Applications

Our Stainless Steel Welded Pad Eye is ideal for securing docks, boats, and other marine equipment. Whether you're anchoring a vessel or setting up a permanent mooring solution, this pad eye provides the strength and reliability you need to keep your equipment safely in place.

Installation Instructions

1. Determine the appropriate location for installation on your marine structure.
2. Mark the drilling points based on the center-to-center measurements.
3. Drill holes to accommodate the #10 RH fasteners.
4. Secure the pad eye using the provided fasteners, ensuring it is firmly attached.
5. Verify the installation by applying a load below the SWL to ensure stability.
