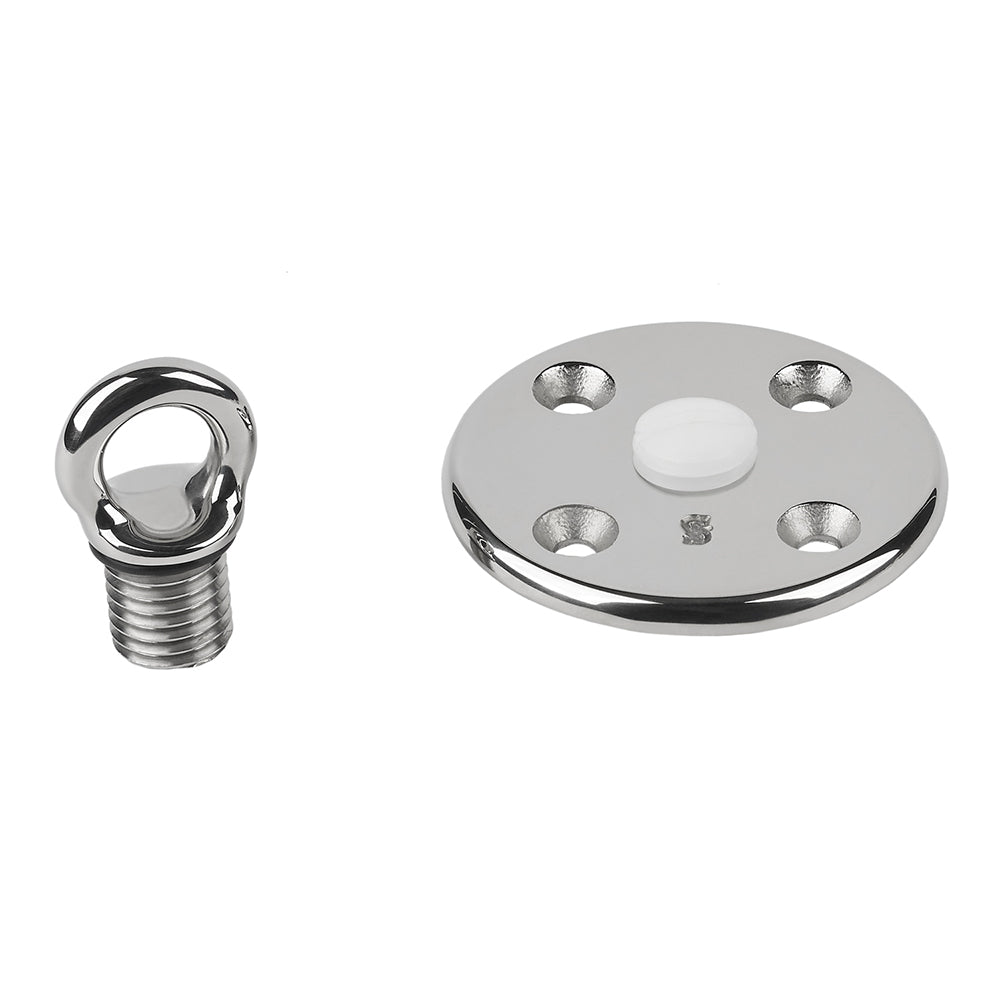

Schaefer Removable Eye Deck Plate/Assembly

Enhance the functionality and safety of your vessel with our Removable Eye Deck Plate Assembly. Designed specifically for marine applications, this durable deck plate provides a secure and reliable connection point for various rigging and hardware needs. Its robust construction ensures longevity and performance, making it an essential component for any boating enthusiast.

Key Features

• Durable Construction: Crafted from high-quality materials to withstand harsh marine environments.
• Easy Installation: Removable design allows for quick and hassle-free setup and removal.
• High Load Capacity: Supports up to 2,250 lbs. (1,020 kg) ensuring reliable performance under stress.
• Precision Engineering: Exact dimensions and specifications for seamless integration with your vessel.

Specifications

Attribute	Details
Eye Width	5/8" (16 mm)
Eye Height	5/8" (16 mm)
Eye Stock	1/4" (6 mm)
Length	3" (76 mm)
Width	3" (76 mm)
Fasteners	4 x 1/4" FH (6 mm)
Center-to-Center A (C/C A)	2" (51 mm)
Center-to-Center B (C/C B)	2" (51 mm)
Safe Working Load (SWL)	2,250 lbs. (1,020 kg)
Weight	9.5 oz. (269 g)
Deck Plate Hole Size	3/4"-10

Installation Instructions

Installing the Removable Eye Deck Plate Assembly is straightforward. Follow these steps to ensure a secure fit:

1. Choose the desired location on your deck and mark the hole positions according to the specified center-to-center measurements.
2. Drill holes matching the deck plate hole size of 3/4"-10.
3. Align the deck plate with the drilled holes and secure it using the included 1/4" FH fasteners.
4. Tighten all fasteners to ensure the plate is firmly in place, ready to support your rigging apparatus.

Why Choose Our Removable Eye Deck Plate Assembly?

Our deck plate assembly stands out in the marine industry due to its superior build quality, ease of installation, and exceptional load-bearing capacity. Whether you’re setting up sails, securing equipment, or enhancing your vessel’s structural integrity, this deck plate provides the reliability and performance you need. Invest in our Removable Eye Deck Plate Assembly to ensure your boating adventures are both safe and enjoyable.
