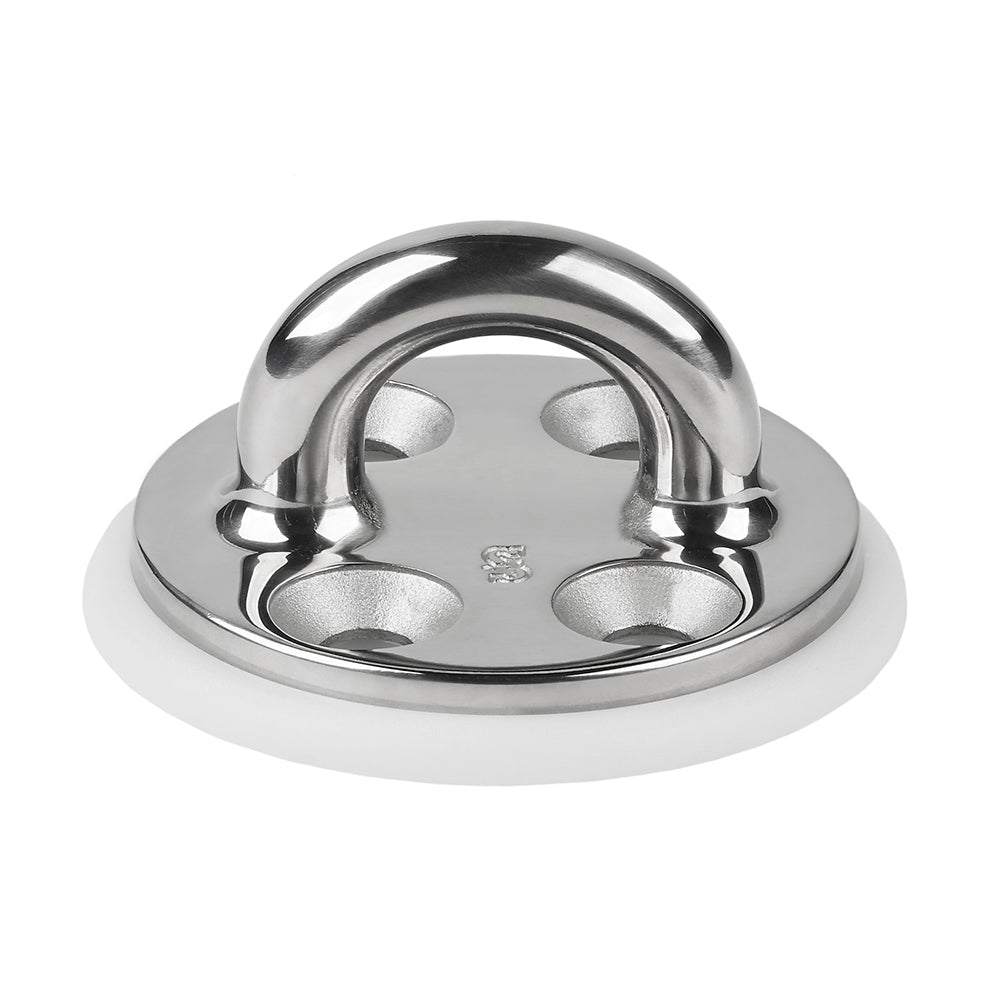

Schaefer Investment Cast Pad Eye - 3" OD Base

Create secure and reliable attachment points on your vessel with our Investment Cast Pad Eye, featuring a robust 3" OD base. Crafted from high-grade 316 stainless steel, this pad eye is designed to endure the harsh marine environment, ensuring long-lasting performance for all your boating and marine rigging needs.

Key Features

• Premium 316 stainless steel construction for exceptional corrosion resistance
• Includes a Delrin™ base for secure and stable mounting
• Compact 3" outer diameter (OD) base suitable for various applications
• Impressive Safe Working Load (SWL) of 8,500 lbs (3,800 kg)
• Easy installation with four 3/8" FH fasteners
• Versatile design compatible with a range of marine equipment

Technical Specifications

Specification	Details
Eye Width	1-1/8" (29 mm)
Eye Height	7/8" (22 mm)
Eye Stock	1/2" (13 mm)
Length	3" (76 mm)
Width	3" (76 mm)
Fasteners	4 x 3/8" FH (10 mm)
Center-to-Center A	1-1/8" (29 mm)
Center-to-Center B	1-11/16" (43 mm)
Safe Working Load (SWL)	8,500 lbs. (3,800 kg)

Additional Details

• Color: Stainless
• Box Dimensions: 2"H x 4"W x 5"L
• Weight: 0.75 lbs
• UPC: 740507007866

Note: Backing Plate 97-54 is sold separately.
