Scanstrut SB-8-5 Junction Box
Scanstrut SB-8-5 Junction Box is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Optimize your marine electrical systems with Scanstrut's SB-8-5 Junction Box, engineered to provide secure and waterproof connections for multiple electrical cables in demanding boating environments. Crafted from durable marine-grade polypropylene, this junction box ensures long-lasting performance and reliable protection against the elements.
Product Overview

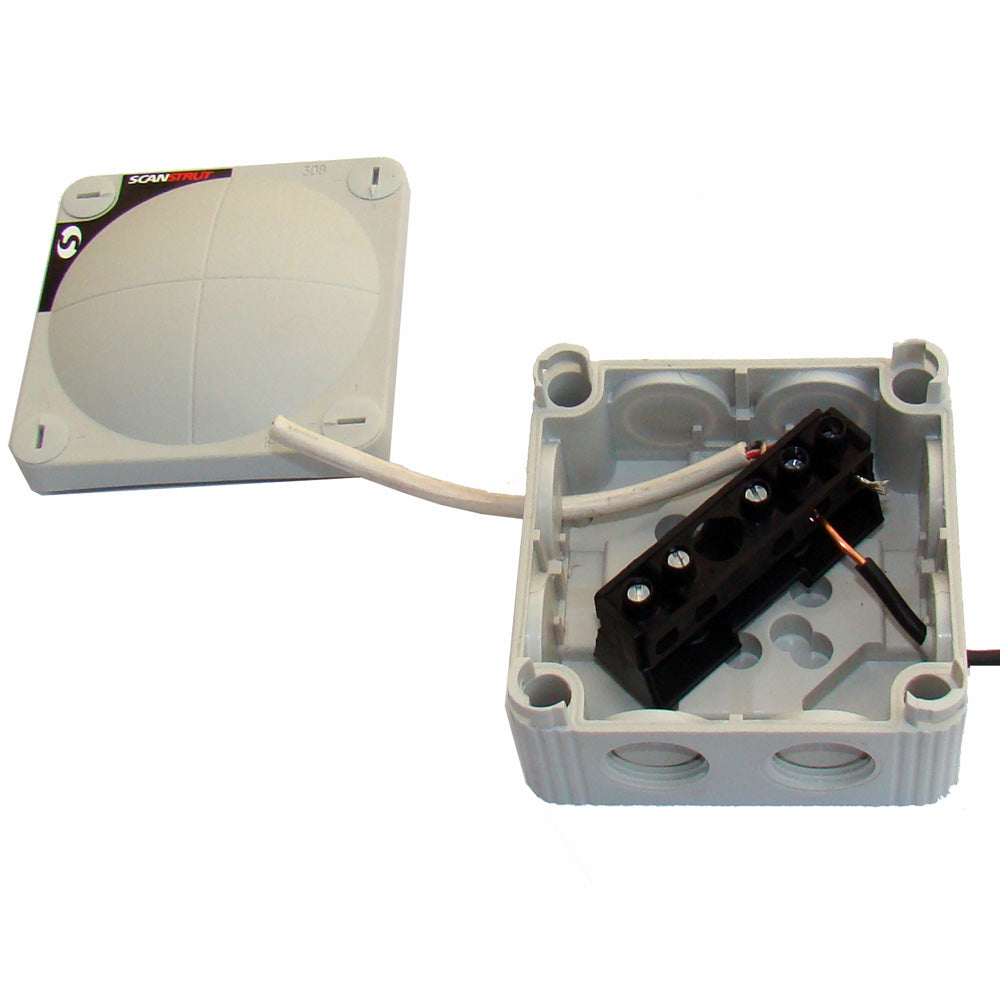

The SB-8-5 Junction Box is specifically designed for marine and boating applications where multiple electrical connections are required. Its robust construction from marine-grade polypropylene offers exceptional resistance to corrosion and harsh marine conditions. Featuring five screw-down terminals, this junction box allows for flexible and secure termination of your electrical cables, ensuring a safe and efficient power distribution system on your vessel.
Outstanding Features for Marine Applications
- Five Screw-Down Terminals: Provides versatile connection points for different electrical circuits, accommodating complex marine electrical setups.
- High Cable Capacity: Supports up to eight cables entering the junction box, allowing for extensive wiring configurations typical in boats and marine equipment.

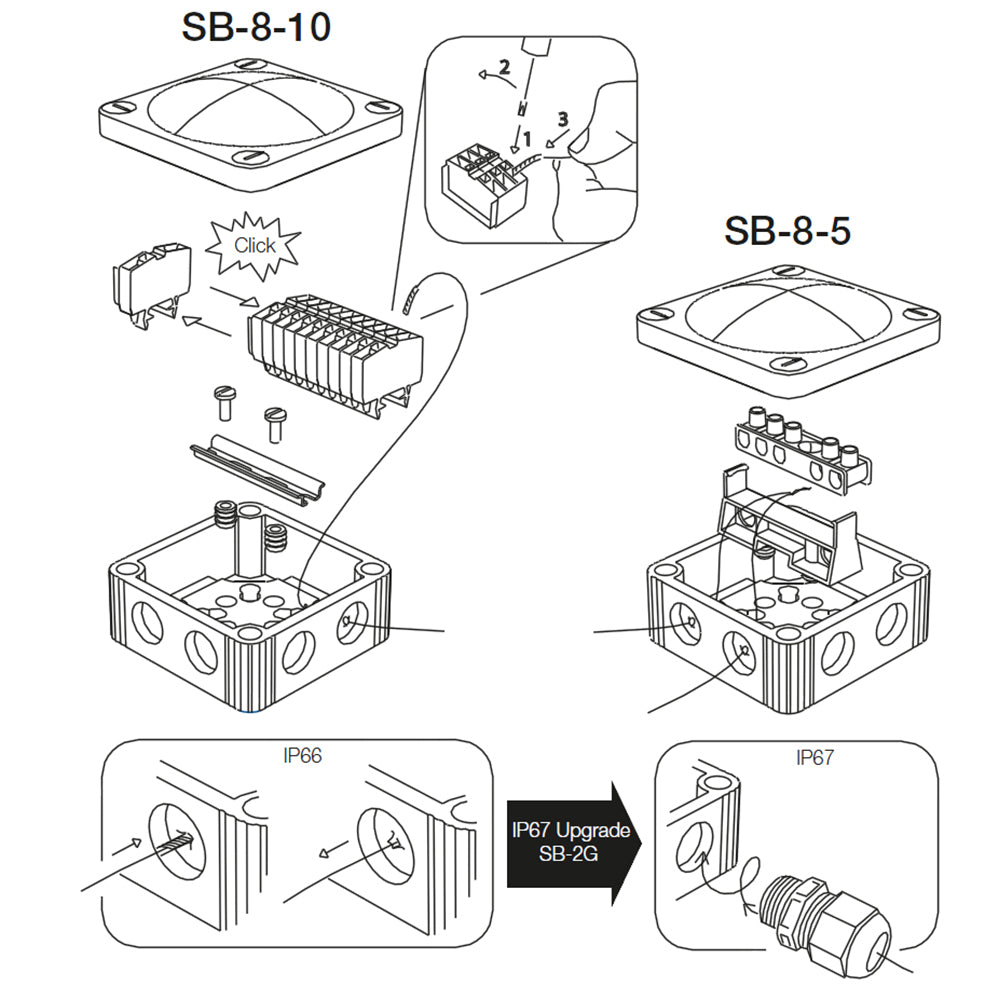

- Watertight Installation: Equipped with an IP66 elastomeric membrane, the junction box guarantees a watertight seal, preventing water ingress and ensuring the safety of your electrical systems.
- Upgradeable Protection: Can be enhanced to an IP68 rating with the use of SB-2G Cable Seals (sold separately), providing even greater protection in submerged conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Maximum Cable Diameter | 0.50" (12 mm) |
| Maximum Wire Size | 16/1.5 to 11/4 |
| Dimensions (L x W x H) | 3.35" x 3.35" x 2" (85 x 85 x 50 mm) |
| Terminal Block Rating | 400 V, 32 A per terminal |
| Color | Grey |
| Material | Marine Grade Polypropylene |
| UPC | 5060114793439 |
| Weight | 0.3 lbs |
| Box Type | Junction Box |
| Box Dimensions | 3"H x 5"W x 7"L |
Included Components
- SB-8-5 Junction Box with five screw-down terminal blocks
- Mounting Hardware for secure installation
- Comprehensive Installation Manual
Note: Sold individually
Additional Resources
Watch Our Installation Video
