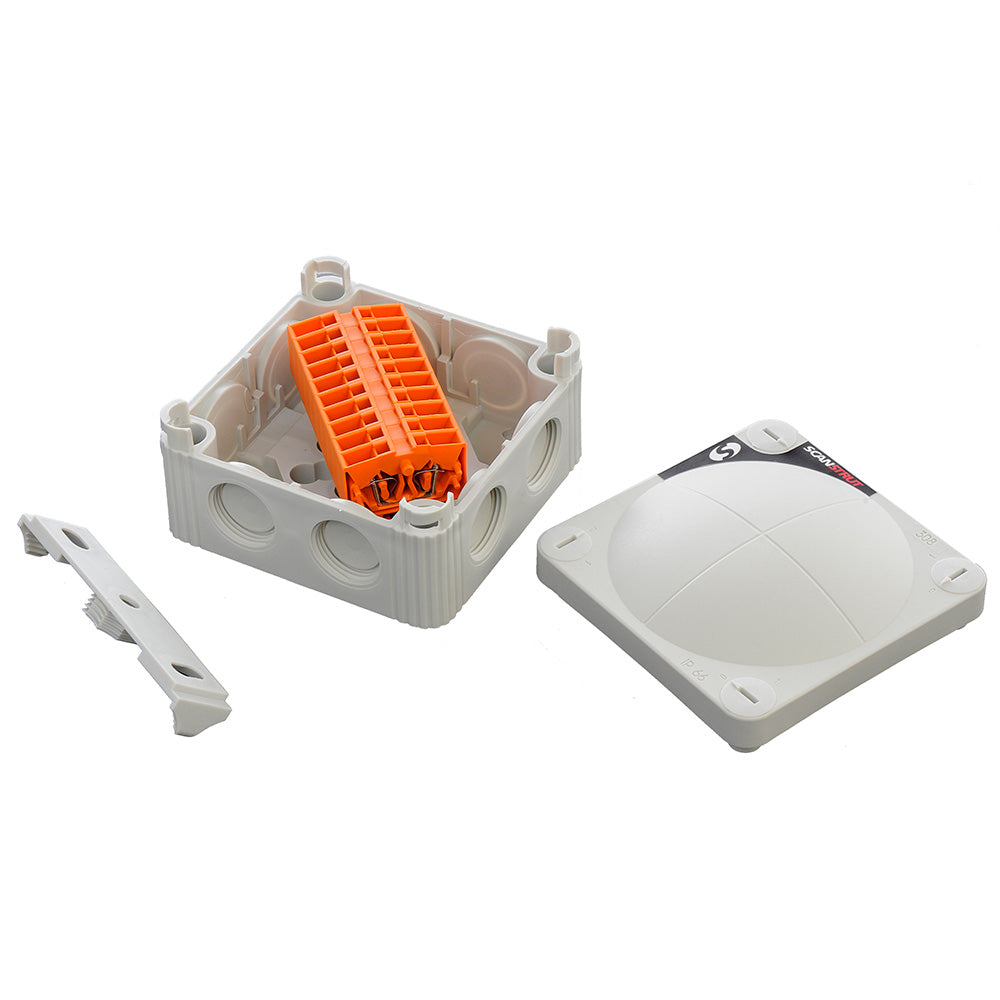

Scanstrut SB-8-10 Junction Box
Scanstrut SB-8-10 Junction Box is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Scanstrut SB-8-10 Junction Box is the ultimate choice for marine and boating electrical installations, offering robust and waterproof connections for multiple cables. Designed with marine-grade materials, this junction box ensures reliable performance and protection in the most demanding marine environments.
Features- 10 Screw-Down Terminals: Supports up to ten secure electrical connections, allowing for comprehensive wiring setups.
- Multiple Cable Entries: Accommodates up to eight cables entering the box, providing flexibility for various installation needs.
- Waterproof Installation: Equipped with an IP66 elastomeric membrane, ensuring watertight protection against harsh marine conditions.
- Enhanced Water Resistance: Upgrade to IP68 protection by using SB-2G Cable Seals (sold separately), offering superior resistance against water ingress.
- Durable Construction: Made from marine-grade polypropylene, ensuring longevity and resistance to corrosion in marine environments.

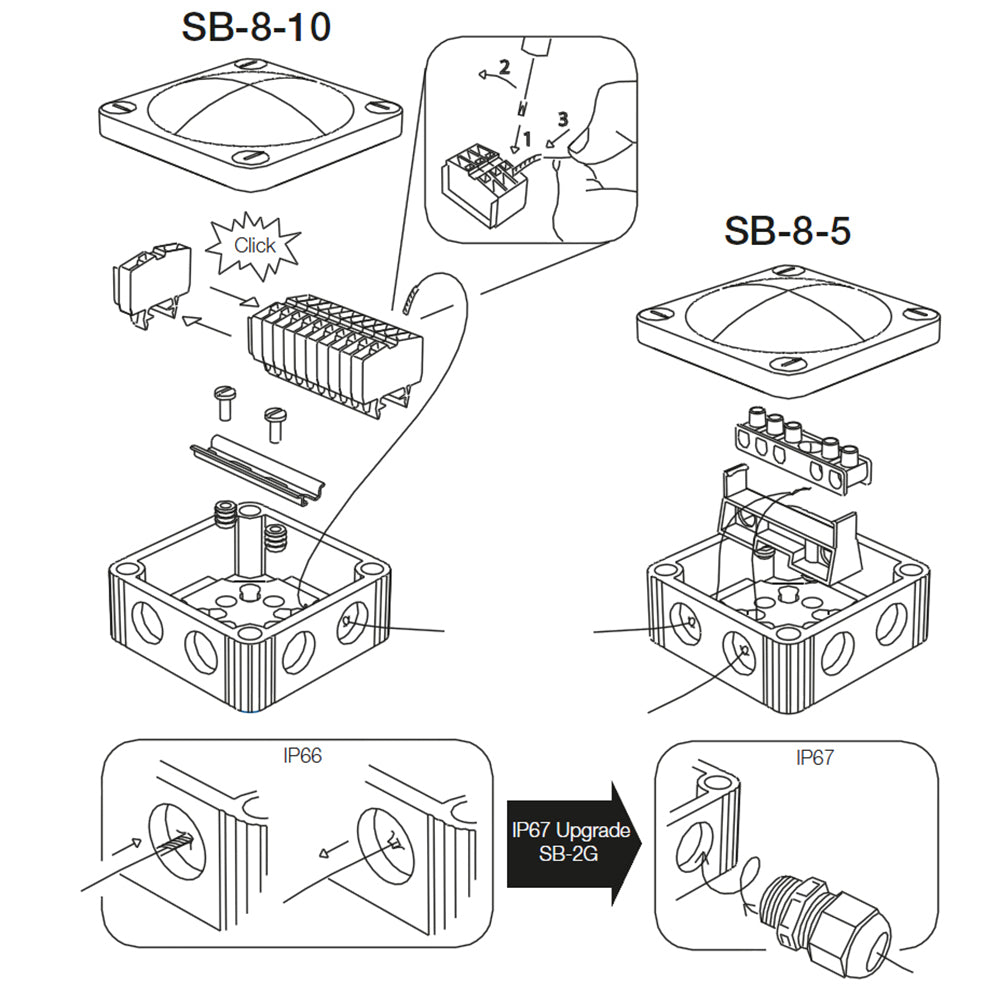

- Easy Cable Management: Cables are push-fit into terminals and secured with a sprung leaf retention system that prevents wire damage and simplifies maintenance.
| Maximum Cable Size (Diameter) | 0.50" (12 mm) |
|---|---|
| Maximum Wire Size | 28/0.08 to 12/3-3 |
| Box Dimensions (L x W x H) | 3.35" x 3.35" x 2" (85 x 85 x 50 mm) |
| Terminal Blocks | 10 screw-down terminal blocks with 600 V rating and 20 A capacity each |
| Overall Box Dimensions | 3"H x 5"W x 7"L |
| Weight | 0.4 lbs |
| Color | Grey |
| Material | Marine-grade polypropylene |
| UPC | 5060114793446 |
- SB-8-10 Junction Box with ten (10) screw-down terminal blocks
- Mounting hardware for secure installation
- Comprehensive installation manual
*Sold as an individual unit.
