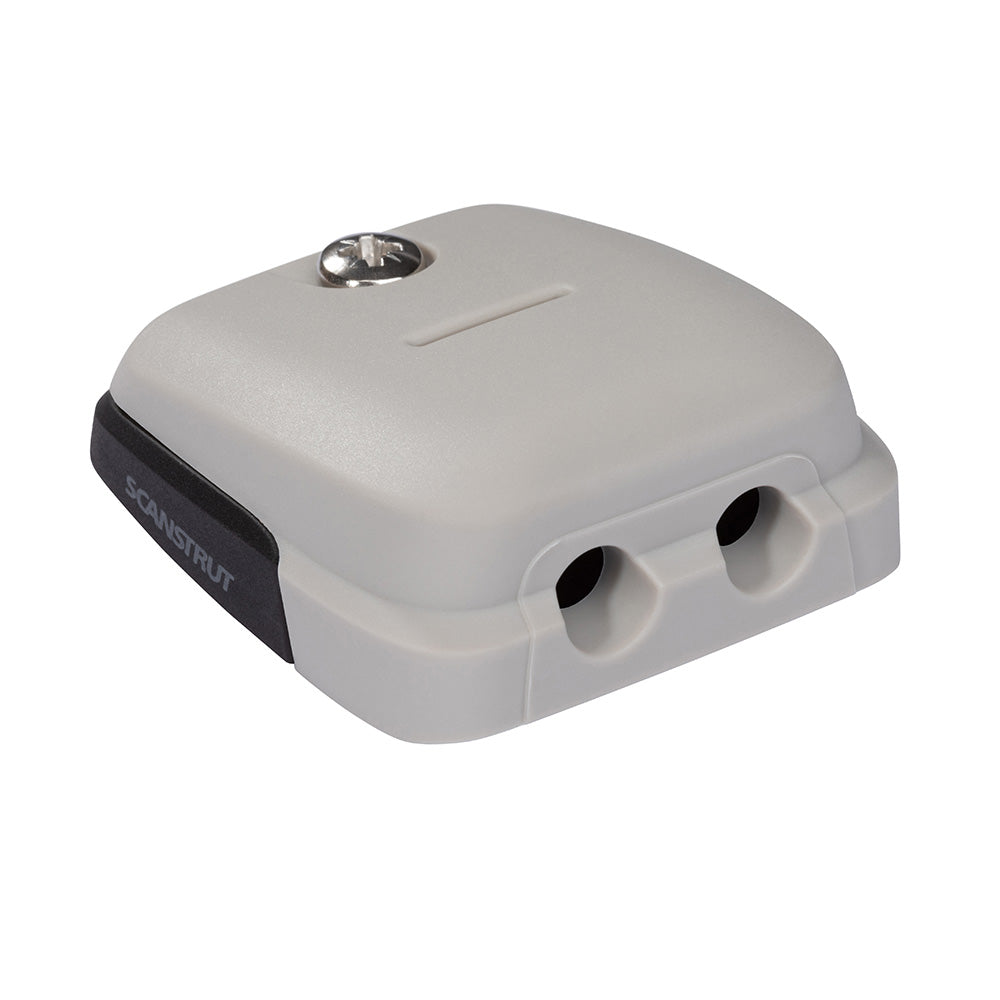

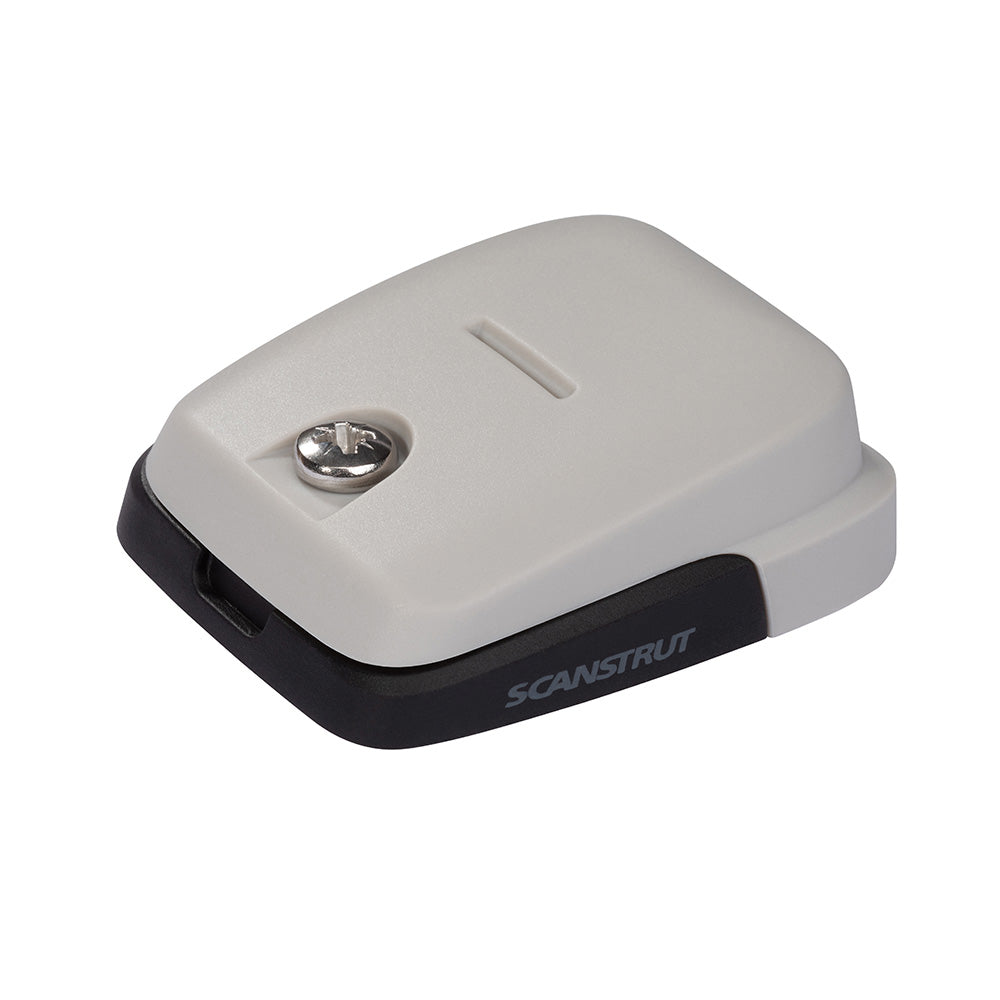

Scanstrut Horizontal Double-Entry Cable Seal - Grey

The Horizontal Double-Entry Cable Seal in Grey by Scanstrut is the ultimate solution for efficiently routing solar panel cables on your boat. Engineered for marine environments, it ensures a secure, watertight, and seamless installation, enhancing both functionality and aesthetics.

Key Features

• Optimized for Solar Panel Installations: Streamlines the routing of solar panel cables, enhancing installation efficiency and appearance.
• Compact Design: Measures just 54mm (W) x 63mm (L) x 24mm (H), allowing installation close to solar panels without occupying excessive space.
• Easy Installation: Simplifies cable routing through various materials such as wood, metal, and GRP, significantly reducing installation time.
• Superior Waterproofing: Features an IP68 rating, ensuring a 100% watertight seal to protect your vessel's integrity.
• Durable Construction: Made from high-impact grey plastic that is UV-stable and hard-wearing, suitable for harsh marine environments.

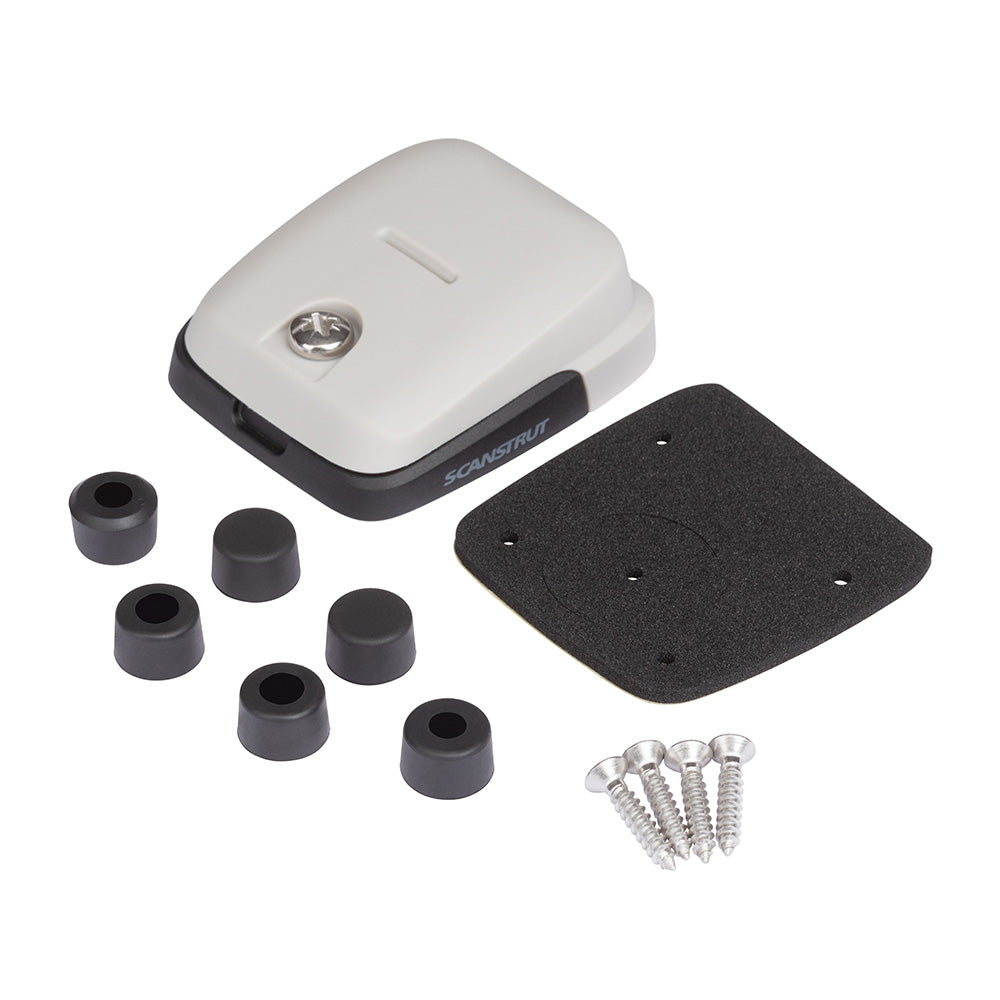

• Included Hardware: Comes with 316 stainless steel fixings and a waterproof 3M gasket for a reliable and secure fit.
• Sleek Aesthetic: Clean and simple design with low-profile construction that is impact-resistant, providing added protection against water ingress.
• Reusable Assembly: Equipped with captive nuts for easy assembly and reliable repeat installations without the need for messy sealant.
• Premium Marine-Grade Materials: Constructed from materials selected to withstand UV exposure and wear, ensuring long-lasting performance.
• No Messy Sealant: Eliminates the need for messy sealant on the bungs, streamlining the installation process.

Installation Options

Install up to two cables in any combination of 5mm (0.19”) and 6mm (0.23”) sizes, providing flexibility to accommodate different cable requirements for your solar panel setup.

Specifications
