Samlex Flush Mount Solar Charge Controller w/LCD Display - 30A

Optimize your marine power system with our top-of-the-line Flush Mount Solar Charge Controller featuring a clear LCD display and robust 30A capacity. Designed to regulate current effectively and safeguard your boat’s batteries from overcharging, this charge controller ensures reliable and efficient energy management on all your maritime adventures.

Key Features

• PWM Charging Technology: Utilizes Pulse Width Modulated (PWM) charging for maximum efficiency and effective battery maintenance.
• 4-Stage Charging Process: Includes Bulk, Absorption, Float, and manual/automatic Equalization stages to ensure optimal battery health.
• Versatile Charging Profiles: Offers 8 selectable charging profiles to easily set up for various battery types commonly used in marine settings.
• Temperature Compensated Charging: Optional DC-BTS-A-C Battery Temperature Sensor available to adjust charging based on ambient temperature, enhancing battery performance.

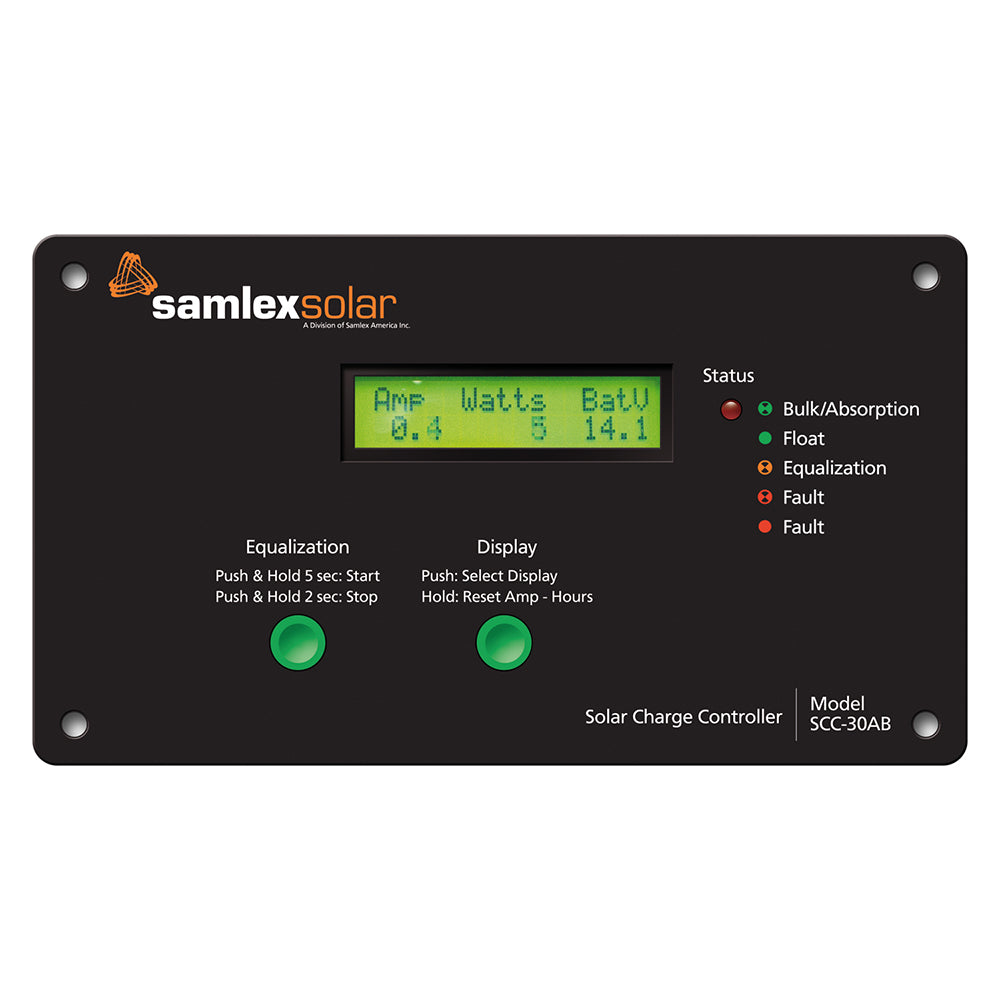

• Digital LCD Display: Provides comprehensive display of operational parameters and fault messages for easy monitoring and troubleshooting.

Technical Specifications

Input Voltage	12V / 24V
Charging Current	30 Amp
Weight	0.8 lbs / 0.36 kg
Dimensions	7.5 x 4.25 x 1.5 inches (19.1 x 10.8 x 3.8 cm)
Warranty	5 Year Limited

Ideal Applications

• Recreational Boats
• Marine Service Vehicles
• Fishing Vessels
• Field Work Boats
• Maritime Telecommunications
• Mobile Marine Offices
• Construction Boats

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
