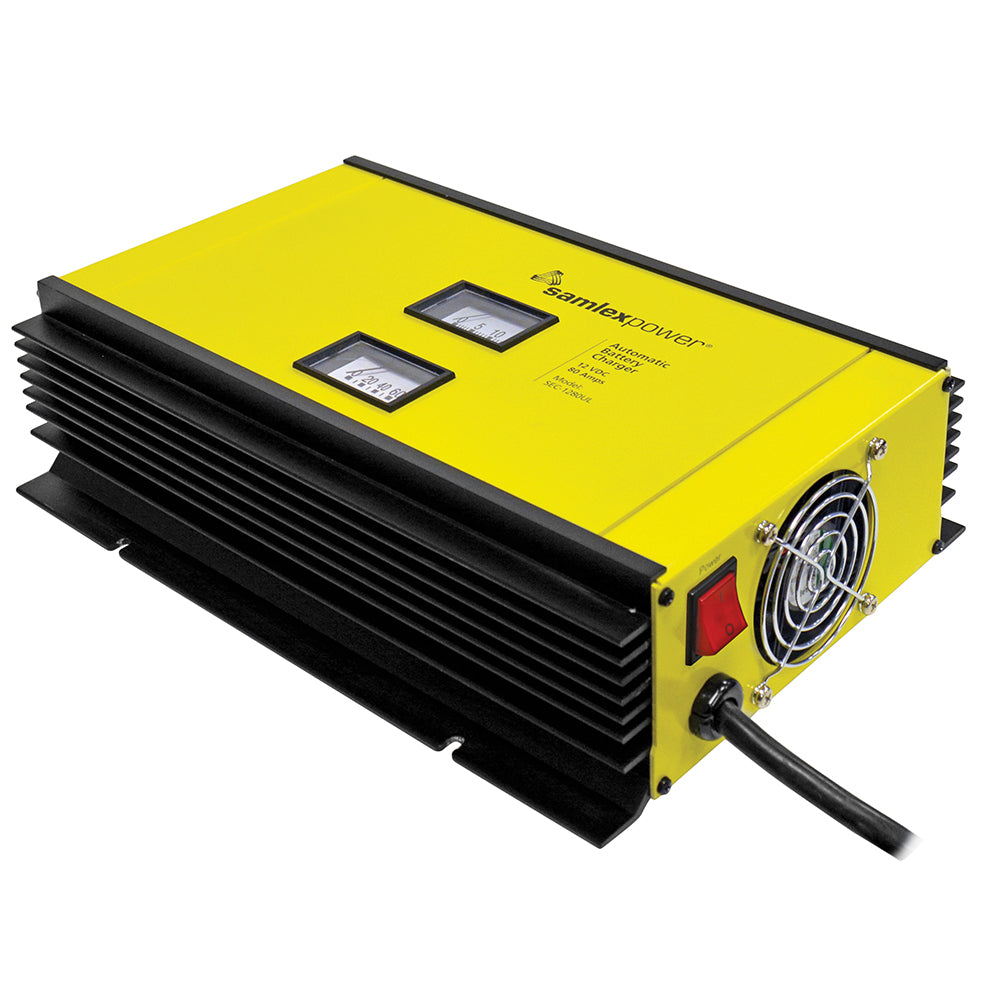

Samlex 80A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor

The 80A Marine Battery Charger is your reliable solution for maintaining and charging 12V lead-acid batteries on your boat. Designed specifically for marine and boating applications, this robust charger ensures your battery banks are efficiently and safely charged, keeping your vessel powered and ready for any adventure on the water.

Key Features

• Advanced Three-Stage Charging: Automatically adjusts the charging process to suit Flooded, AGM, or Gel Cell batteries, ensuring optimal battery health and longevity.
• Dual Battery Bank Capability: Charge up to two separate battery banks simultaneously without the need for an isolator, perfect for managing both your starting and house batteries.
• Configurable Charging Modes: Switch between 2-stage and 3-stage charging via DIP switch to accommodate different charging requirements or integrate with DC loads like UPS systems.
• High Efficiency Switch Mode Technology: Ensures lightweight, quiet operation with minimal energy loss, ideal for marine environments where power efficiency is crucial.
• Flexible Power Input: Compatible with both 120V/60Hz and 230V/50Hz AC sources, providing versatility for different marine power setups.
• Safety Protections: Equipped with overload, short-circuit, reverse battery connection, and over-temperature protections to safeguard your batteries and equipment.
• Integrated Monitoring: Features a voltmeter and ammeter for real-time monitoring of charging status, allowing you to keep track of your battery performance.
• Cooling System: Fan-cooled based on output current to maintain optimal operating temperatures, enhancing reliability in demanding marine conditions.
• Half Power Mode: Reduces the maximum charging current to half the rated capacity, enabling safe charging of lower capacity batteries.
• Temperature Sensor: Prevents under or overcharging by adjusting the charging process based on temperature variations, ensuring safe and efficient charging.

Technical Specifications

Parameter	Details
Input Voltage	120 VAC 60 Hz or 230 VAC 50 Hz
Output Voltage	12 VDC
Charging Current	80 Amps
Charging Banks	2
Portable	No
Dimensions	6" H x 11" W x 19" L (15 x 9.61 x 3.82 in)
Weight	14 lbs (6.4 kg)
Remote Control	900-RC
Safety Certifications	UL-1564 Listed, FCC Part 15(B) EMI Compliant, Class B
Warranty	2 Year Limited
UPC	622988083044

Applications

• Marine and Boating Systems
• Automotive Batteries
• Recreational Vehicles (RVs)
• Communications Sites
• Battery Backup Systems

Additional Information

Half Power Mode: Allows for safe charging of lower capacity batteries by reducing the maximum charging current to half the rated capacity.

Monitoring Tools: Equipped with a voltmeter and ammeter to help you keep track of your battery's charging status.

Cooling: Features a fan-cooled design that operates based on the output current to maintain optimal temperature.
