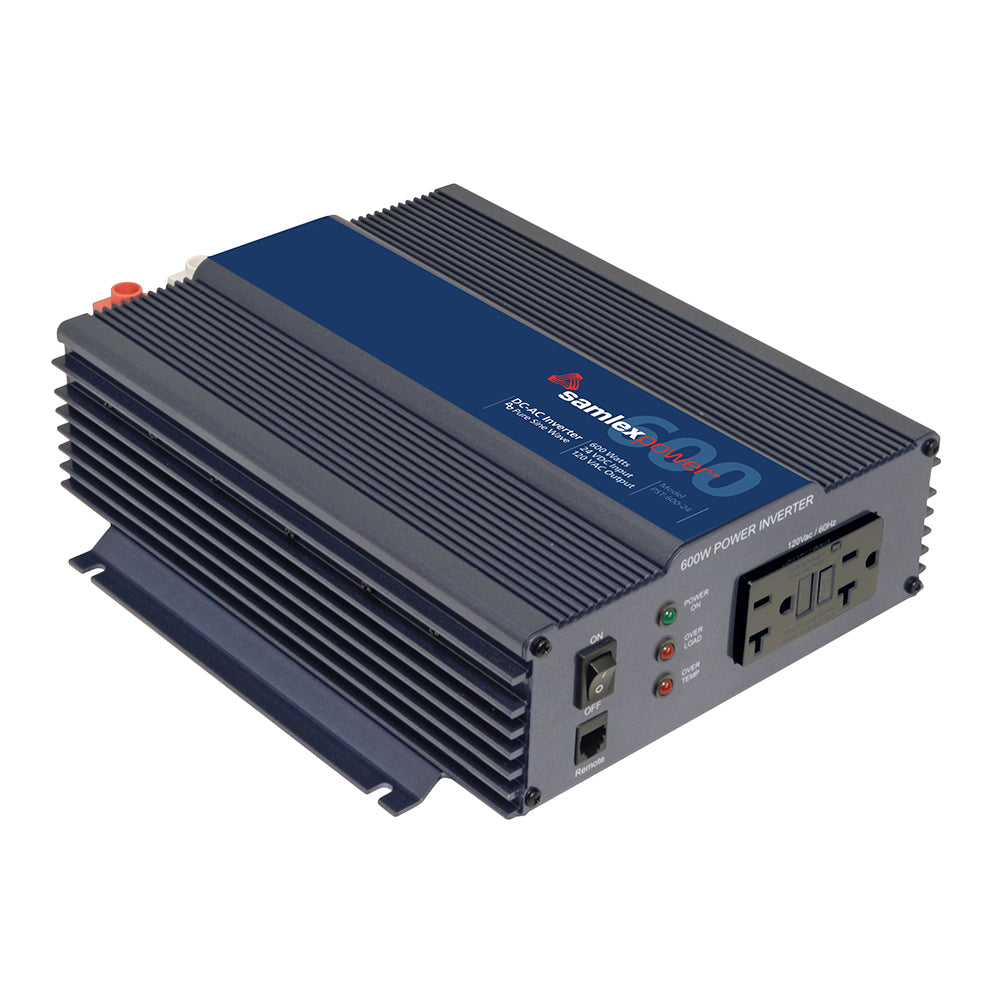

Samlex 600W Pure Sine Wave Inverter - 24V

Upgrade your boat's power system with our 600W Pure Sine Wave Inverter - 24V PST Series, specifically engineered for marine and boating applications. This inverter ensures reliable conversion of 24V DC from your vessel's battery into clean and stable 120V AC power, perfect for powering essential marine electronics and appliances.

Reliable Power Conversion for Your Vessel

This high-efficiency pure sine wave inverter delivers 600 Watts of continuous AC power with a surge capacity of 1000 Watts, making it ideal for running navigation systems, marine radios, lighting, and other onboard devices without interference or instability.

Key Features

• High Efficiency: Maximizes power usage, extending your battery life during extended voyages.
• Temperature Controlled Cooling Fan: Maintains optimal operating temperatures while reducing energy consumption.
• Wide DC Input Range: Operates seamlessly with a 24V system, handling input voltages from 21.4 to 33.0 VDC.
• Commercial Grade Design: Built for heavy-duty marine environments, ensuring durability and long-term reliability.
• Universal Protection Circuit (UPC): Protects against low voltage, over voltage, over temperature, overloads, and short circuits.
• Low Idle Power Draw: Consumes less than 0.5 Amps when idle, preserving your battery power when not in use.
• Dual GFCI Protected AC Outlets: Provides safe and convenient access to AC power with NEMA-20R duplex outlets.
• Optional Remote Control: Control the inverter remotely with the RC-15A model (sold separately).
• Secure Installation: Comes with pin-type battery cable lugs for a stable connection to your boat's battery.
• Safety Certified: Complies with UL standards and FCC regulations for safe marine use.

Technical Specifications

Parameter	Specification
Input Voltage	24 VDC
Output Voltage	120 VAC
Continuous Power	600 Watts
Surge Power	1000 Watts
Waveform	Pure Sine Wave
DC Input Range	21.4 - 33.0 VDC
Cooling	Temperature Controlled Fan
AC Outlets	2 Duplex GFCI
Remote Control	RC-15A (sold separately)
Dimensions	9.37 x 10.87 x 3.23 inches (238 x 276.2 x 82 mm)
Weight	5.9 lbs (2.7 kg)
Safety Certification	UL, ETL Standards; FCC Compliant
Warranty	2 Year Limited
UPC	622988072161

Perfect for Marine Applications

• Service Vehicles
• Mobile Offices on Boats
• Recreational Boats and Yachts
• Motorhomes and RVs
• Solar Power Systems for Marine Use
• Emergency Backup Power on Vessels
• Home Electronics: TVs, VCRs, Video Games
• Computers and Printers

Easy Installation and Use

The inverter's compact and lightweight design allows for easy installation in tight marine environments. Equipped with pin-type battery cable lugs, it ensures a secure and stable connection to your boat’s battery system. The optional remote control provides added convenience, enabling you to manage your power system from anywhere on board.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Resources

Owner's Manual (pdf)
Brochure (pdf)
