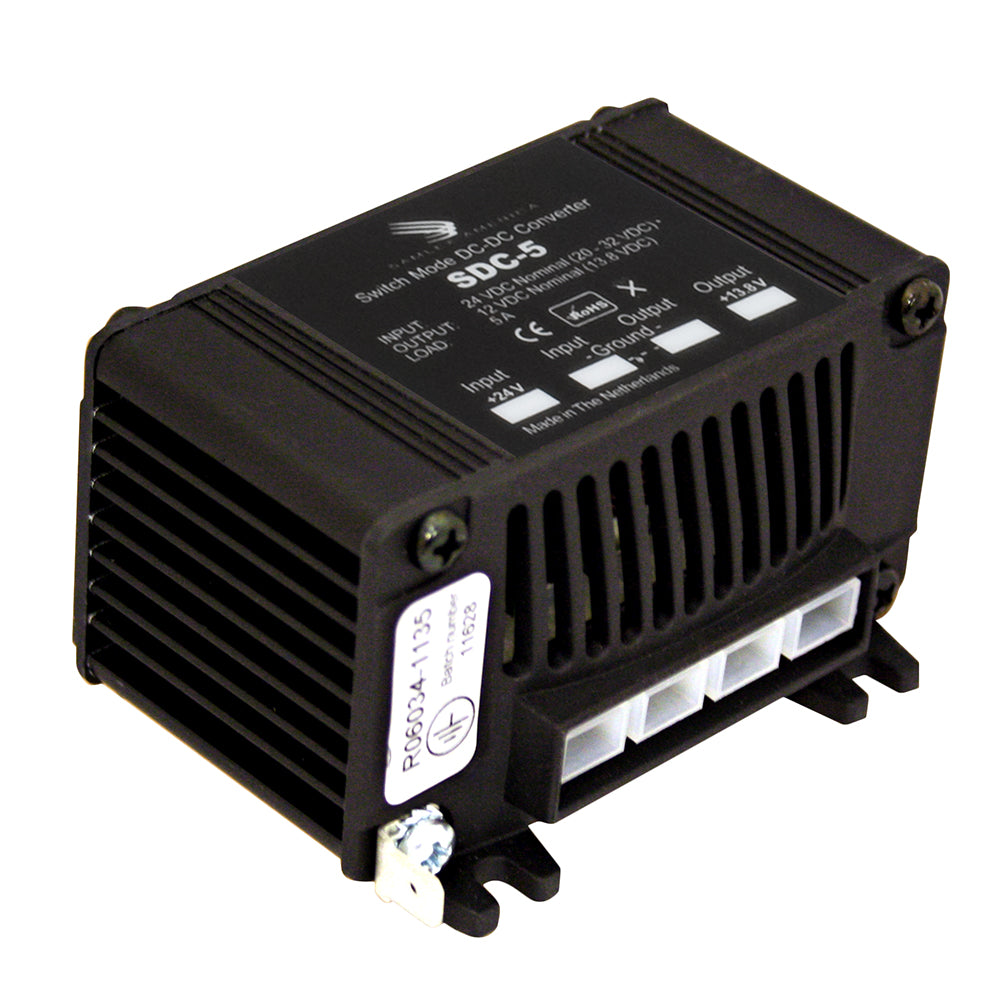

Samlex 5A Non-Isolated Step-Down 24VDC-12VDC Converter

This reliable 5A non-isolated step-down DC-DC converter is specifically designed for marine and boating applications, ensuring efficient power conversion from your vessel's 24V DC system to the essential 12V DC required by various marine electronics and accessories.

Features

• Advanced switch-mode technology for high efficiency
• Flexible mounting options for installation in tight spaces
• Compact and lightweight design (0.4 lbs / 0.18 kg)
• Built-in reverse polarity protection to prevent damage
• Optimized for marine environments with robust protection features
• Cycle-by-cycle current limiting for enhanced safety
• Overvoltage and short-circuit protection ensures device longevity

Specifications

Parameter	Details
Input Voltage	20-32 VDC
Output Voltage	13.8 VDC
Output Current	5 Amps
Weight	0.4 lbs / 0.18 kg
Dimensions	3.5 x 2.75 x 1.75 inches (8.9 x 7 x 4.4 cm)
Warranty	2 Year Limited

Applications

• Marine and boating equipment
• Heavy-duty marine vehicles
• Marine lighting systems
• Marine AM/FM sound systems
• CB radios for boats
• Hull and deck equipment on boats
• Navigation and communication systems

WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Owner's Manual (PDF)
Brochure (PDF)
