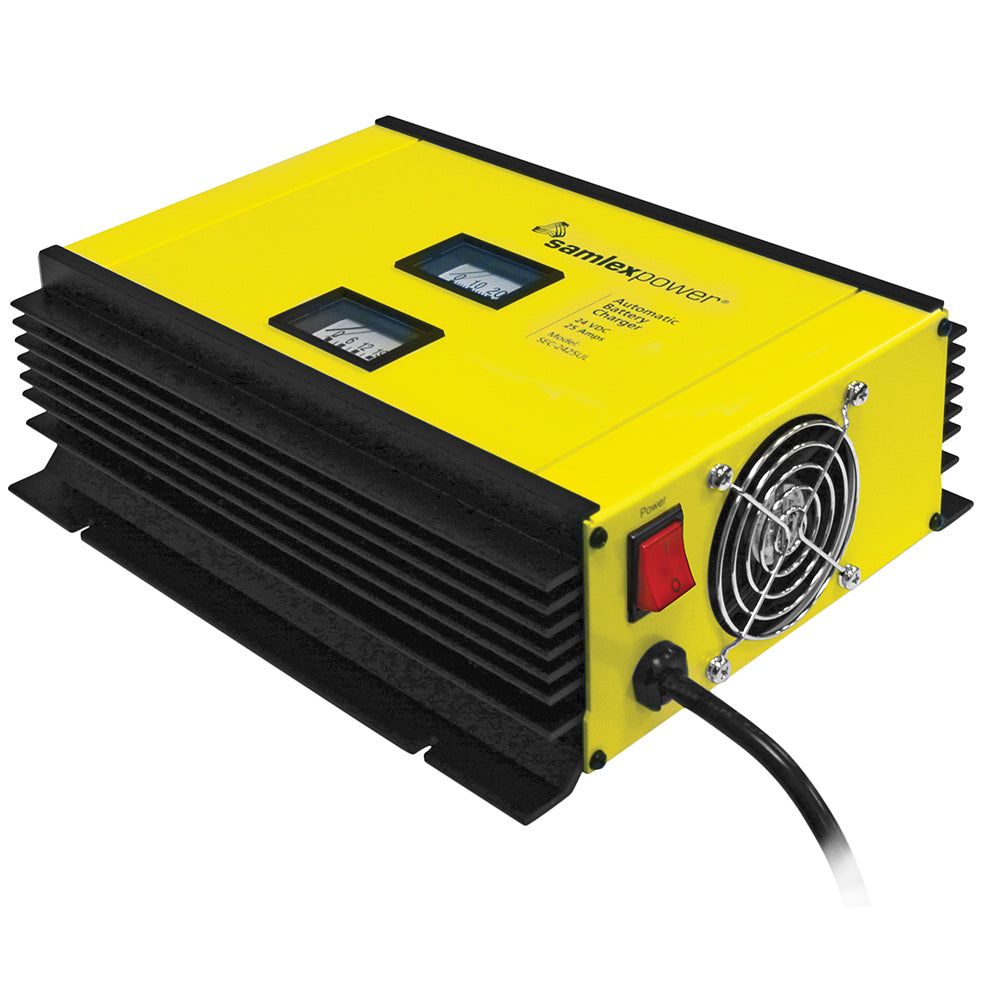

Samlex 25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch Lugs - Includes Temp Sensor

The 25A Battery Charger is a robust and versatile solution designed specifically for marine and boating applications. Capable of handling all types of 24V lead-acid batteries, including Flooded, Absorbed Glass Mat (AGM), and Gel Cell, this charger ensures your onboard power systems are always ready. With its advanced three-stage charging process and dual-bank capability, it provides efficient and reliable power management for your vessel.

Key Features

• High Efficiency: Utilizes switch mode technology for lightweight, quiet, and efficient operation.
• Versatile Charging: Automatically adapts to charge Flooded, AGM, or Gel Cell lead-acid batteries.
• Dual Bank Charging: Supports charging of two separate battery banks simultaneously without the need for an isolator.
• Multi-Functional: Can function as a power supply or DC UPS when paired with a battery.
• Configurable Input: User-selectable AC input voltage options of 120V or 230V, and frequency options of 50Hz or 60Hz via DIP switch.
• Adjustable Charging Stages: Switch between two-stage and three-stage charging algorithms for rapid and safe charging of both standalone and loaded batteries.
• Half Power Mode: Reduces maximum charging current to half the rated capacity, ideal for safely charging lower capacity batteries.
• Monitoring Tools: Equipped with a voltmeter and ammeter for real-time monitoring of charging status.
• Cooling System: Fan-cooled operation based on output current to maintain optimal temperature.
• Comprehensive Protections: Includes short circuit, overload, reverse polarity, and thermal overload protection to safeguard your equipment.
• Temperature Sensor: Prevents undercharging and overcharging by adjusting based on temperature fluctuations.

Specifications

Attribute	Details
Charger Output Voltage	24 VDC
Charger Output	25 A
Charging Banks	2
Portable	No
Charger Input Voltage	120 VAC / 230 VAC
Frequency	50 Hz / 60 Hz
Weight	9 lbs (4.1 kg)
Dimensions	13.03" x 9.6" x 3.82" (331 x 244 x 97 mm)
Safety Certifications	UL-1564 Listed, FCC Part 15(B) EMI Compliant, Class B
Warranty	2 Year Limited
Remote Control	900-RC
UPC	622988083068

Applications

• Marine and Boating: Ideal for maintaining and charging boat batteries.
• Test Bench: Perfect for testing battery performance and capacity.
• Automotive: Suitable for charging vehicle batteries and maintaining backup systems.
• Communications Sites: Ensures reliable power supply for communication equipment.
• Battery Backup Systems: Essential for UPS setups and emergency power solutions.
• Hobbyist Projects: Great for electronics and DIY battery-powered projects.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
