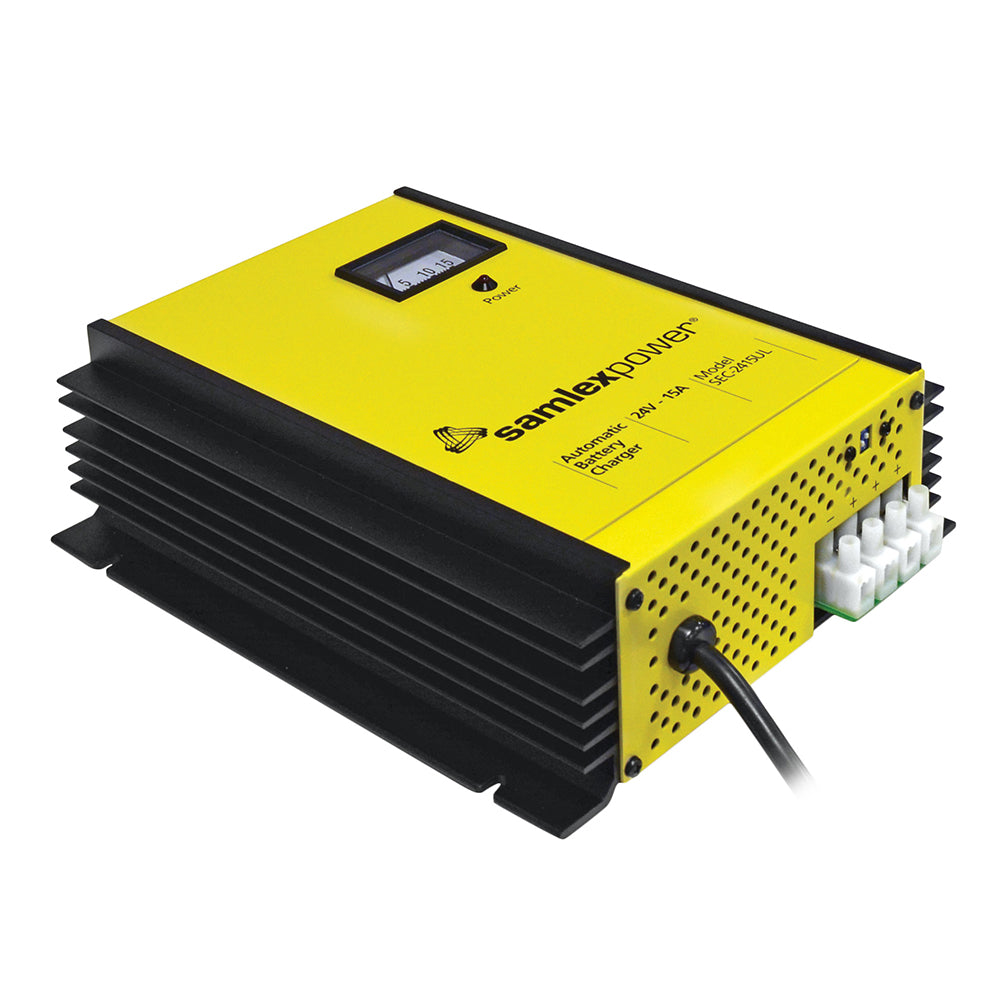

Samlex 15A Battery Charger - 24V - 3-Bank - 3-Stage w/Dip Switch Lugs

Ensure your marine adventures are powered smoothly with our high-performance 15A Battery Charger. Designed specifically for the demanding conditions of marine and boating environments, this 24V charger efficiently manages and maintains your lead-acid batteries, providing reliable power whether you're on the water or docked.

Key Features

• High Efficiency: Optimized to deliver maximum charging performance with minimal energy loss.
• Commercial Grade: Built to withstand the rigors of marine use with durable construction.
• Lightweight Design: Easy to install and handle onboard your vessel.
• Quiet Operation: Minimizes noise, ensuring a peaceful environment on board.
• Proven Reliability: Thousands of units successfully operating in various industries worldwide.
• Flexible Charging Stages: Select between 2 or 3-stage charging to suit your battery setup.
• Dual Voltage Input: Compatible with 120 VAC, 60 Hz or 230 VAC, 50 Hz power sources.
• Clear Voltage Display: Features an ammeter and LED indicators for real-time power status monitoring.
• Universal Compatibility: Suitable for all types of lead-acid batteries, including Flooded, AGM, and Gel Cell.
• Versatile Charging Options: Capable of charging with a battery load or as a standalone unit.
• Power Supply Capability: Can be used as a DC power supply or DC UPS for your onboard electronics.
• Advanced Protection: Equipped with a Universal Protection Circuit to guard against short circuits, overloads, and reverse polarity.
• Multi-Bank Charging: Simultaneously charge up to 3 separate battery banks without the need for an isolator.

Specifications

Feature	Details
Input Voltage	120 VAC or 230 VAC
Output Voltage	24 VDC
Charging Current	15 Amps
Charging Stages	2 or 3 stages (user selectable)
Remote Control	900-RC
Weight	6 lbs (2.72 kg)
Dimensions	10.5 x 8.5 x 3 inches (26.7 x 21.6 x 7.6 cm)
Safety Certifications	UL-1564 Listed, FCC Part 15(B) EMI Compliant, Class B
Warranty	2-Year Limited
UPC	622988083051

Ideal Applications

• Marine and Boating: Reliable charging for your vessel's battery systems.
• Recreational Vehicles: Keep your RV batteries in top condition for all your travels.
• Automotive: Perfect for maintaining and charging vehicle batteries.
• Communications Sites: Ensure uninterrupted power supply for critical communication equipment.
• Battery Backup Systems: Maintain backup power systems efficiently and safely.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Additional Specifications

• Charger Output Voltage: 24V
• Charger Output - Amps: 15A
• Charging Banks: 3
• Portable: No
• Charger Input - Voltage: 120/240V
• Box Dimensions: 5" H x 10" W x 14" L
• Weight: 7.1 lbs
• UPC: 622988083051

Owner's Manual (PDF)

Brochure (PDF)
