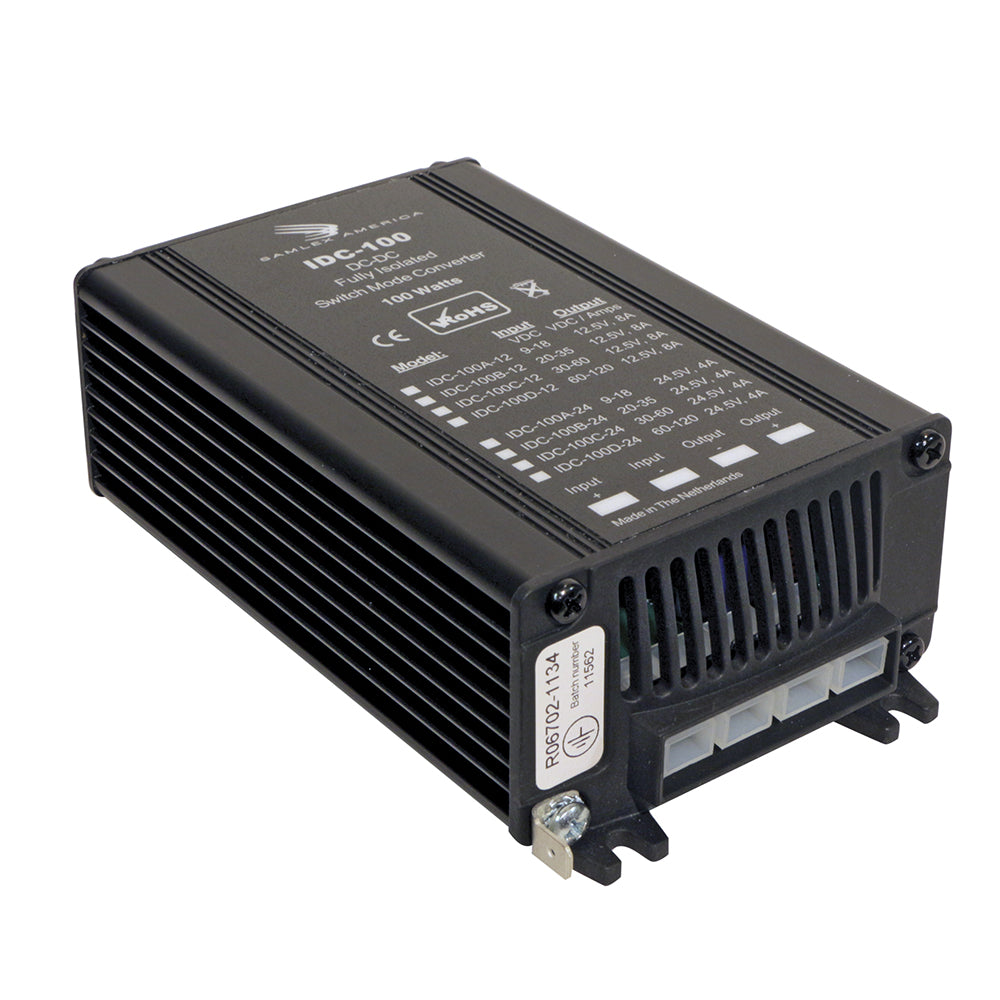

Samlex 100W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 12.5V Output

The IDC-100C-12 100W Fully Isolated DC-DC Converter is engineered specifically for marine and boating applications, ensuring reliable and efficient power conversion in harsh maritime environments. With its robust design and comprehensive protection features, this converter is the ideal solution for maintaining stable 12.5V power supply from a wide range of input voltages.

Key Features

• Full Galvanic Isolation: Ensures safety and prevents electrical interference between input and output.
• High Efficiency: Delivers up to 100 Watts of power with minimal energy loss.
• Comprehensive Protection: Includes short circuit protection, overcurrent limiting, overheating protection, overvoltage protection, and reverse polarity protection.
• Compact and Durable: Designed to withstand the vibrations and conditions typical in marine environments.
• Quick Disconnect Connectors: Equipped with 1/4” push-on flat blade connectors for easy installation and maintenance.
• EMI/EMC Compliant: Meets European standards EN50081-1 for EMI and EN50082-1 for EMC, ensuring minimal electromagnetic interference.
• CE Approved: Adheres to safety and performance standards required for marine equipment.
• 2-Year Limited Warranty: Provides peace of mind with reliable support and coverage.

Technical Specifications

Parameter	Specification
Input Voltage	30-60 VDC
Output Voltage	12.5 VDC
Maximum Output Current	8 Amps
Power Output	100 Watts
Weight	1.2 lbs / 0.54 kg
Dimensions	6 x 3.5 x 1.9 in / 15.2 x 8.9 x 4.8 cm
Safety Certification	CE
Warranty	2 Year Limited

Why Choose the IDC-100C-12 for Your Marine Vessel?

Marine environments demand power solutions that are not only efficient but also resilient against the challenges posed by moisture, salt, and constant movement. The IDC-100C-12 DC-DC Converter stands out with its fully isolated design, ensuring that sensitive equipment on your vessel receives clean and stable power. Its wide input voltage range accommodates the varying power sources found on boats and ships, while the robust protection features safeguard against electrical faults that could compromise your marine systems.

Ideal Applications

• Marine Lighting Systems
• Navigation and Communication Equipment
• Marine Sound Systems
• Battery Charging Systems
• Recreational Vehicle (RV) Marine Conversions
• Instrumentation and Control Systems
• Amateur Radio (CB/RF) Installations

Compliance and Safety

The IDC-100C-12 is designed to meet stringent safety and performance standards. It is CE approved and complies with European EMC and EMI regulations, ensuring that it operates seamlessly within your marine electrical systems without causing or being affected by electromagnetic interference.

Warranty and Support

We stand behind the quality and reliability of our products. The IDC-100C-12 comes with a 2-year limited warranty, providing you with assurance and support for your investment in marine power solutions.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (PDF)

Brochure (PDF)
