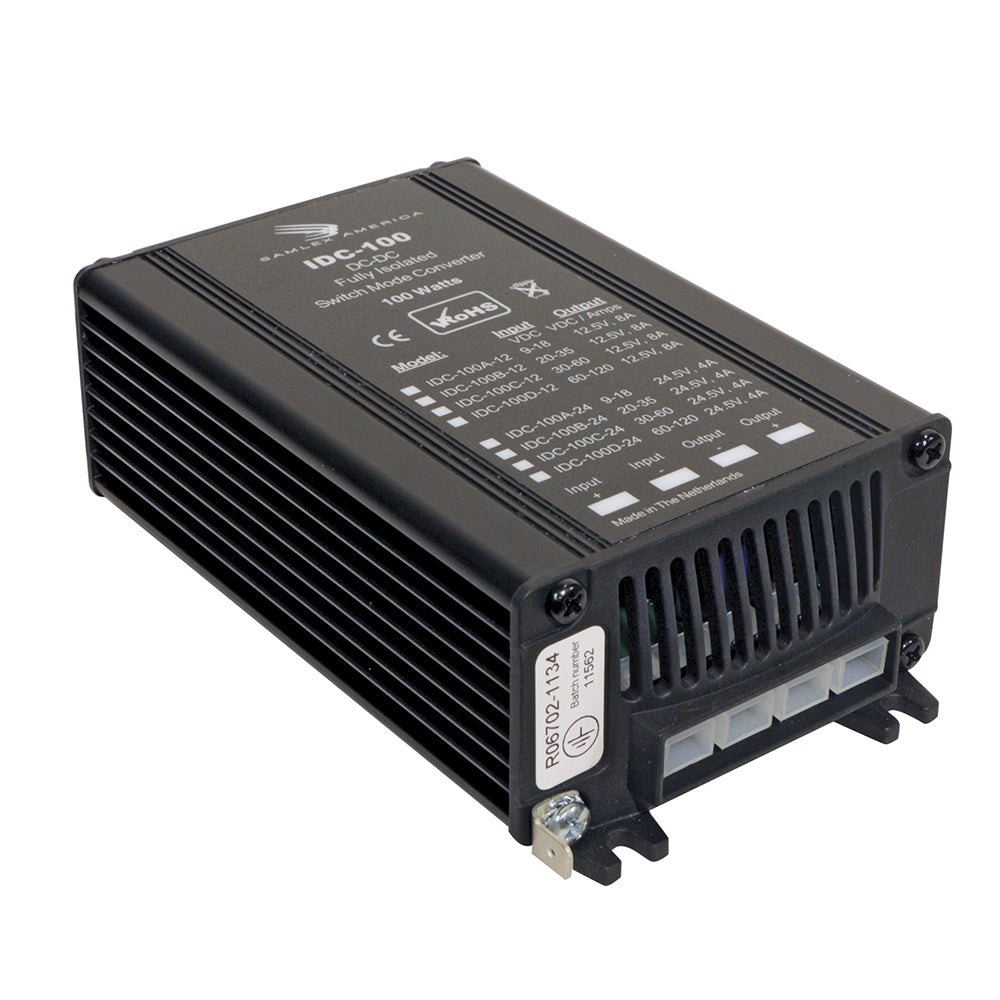

Samlex 100W Fully Isolated DC-DC Converter - 8A - 20-35V Input - 12.5V Output

Ensure your marine electrical systems run smoothly and reliably with our high-efficiency 100W Fully Isolated DC-DC Converter. Designed specifically for marine and boating applications, this converter provides a stable 12.5V output from a wide input range of 20-35V, ensuring your onboard electronics operate safely and efficiently even in demanding marine environments.

Key Features

• Fully Isolated: Provides complete galvanic isolation between input and output, enhancing safety and preventing electrical interference.
• Short Circuit Protection: Safeguards your equipment against unexpected electrical faults.
• Current Limited: Ensures consistent performance by regulating current flow.
• Compact Housing: Easy to install in tight marine spaces without sacrificing performance.
• Built-in Protections: Protects against overheating, overvoltage, and reverse polarity connections.
• Quick Disconnect: Equipped with 1/4” push-on flat blade connectors for easy and secure connections.
• EMI/EMC Compliant: Meets European standards EN50081-1 for EMI and EN50082-1 for EMC, ensuring minimal electromagnetic interference.
• CE Approved: Certified for safety and compliance with European regulations.
• 2-Year Warranty: Provides peace of mind with reliable performance backed by our warranty.

Technical Specifications

Parameter	Value
Input Voltage	20-35 VDC
Output Voltage	12.5 VDC
Output Current	8 Amps
Weight	1.2 lbs (0.54 kg)
Dimensions	6 x 3.5 x 1.9 in (15.2 x 8.9 x 4.8 cm)
Safety Certification	CE
Warranty	2-Year Limited

Ideal for Marine Applications

• Earth Moving Equipment on Boats
• Heavy Duty Marine Trucks
• Marine Buses and Ferries
• Marine Vessels and Yachts
• CB and Marine Radio Systems
• 12 Volt Marine Lighting Systems
• AM/FM Marine Sound Systems

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner's Manual (pdf)
Brochure (pdf)
