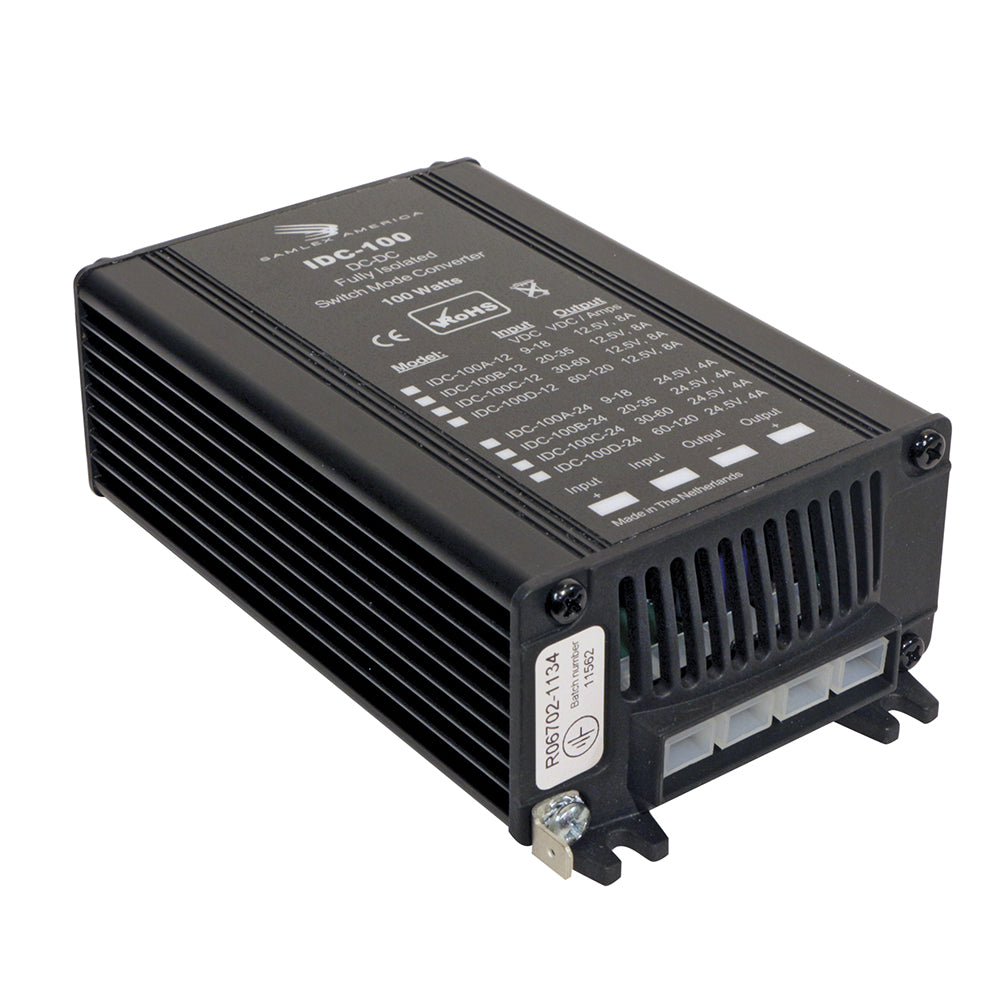

Samlex 100W Fully Isolated DC-DC Converter - 4A - 9-18V Input - 24V Output

The IDC-100A-24 isolated DC-DC converter is a robust and high-efficiency power solution designed specifically for marine and boating applications. With its fully isolated design, it ensures reliable and stable power delivery for your vessel’s critical systems, enhancing both safety and performance on the water.

Key Features

• Fully Isolated: Ensures galvanic isolation between input and output, protecting your equipment.
• Short Circuit Protected: Automatically safeguards against unexpected short circuits.
• Current Limited: Prevents overcurrent conditions, enhancing device longevity.
• CE Approved: Complies with European safety standards for peace of mind.
• 2 Year Warranty: Offers extended protection and reliability.

Specifications

Parameter	Details
Input Voltage	9.2-18 VDC
Output Voltage	24 VDC
Power Rating	100 Watts
Output Current	4 Amps
Weight	1.2 lbs (0.54 kg)
Dimensions	6 x 3.5 x 1.9 inches (15.2 x 8.9 x 4.8 cm)
Safety Certification	CE
Warranty	2 Year Limited

Why Choose the IDC-100A-24 for Your Marine Needs?

Marine environments demand power solutions that can withstand harsh conditions while delivering consistent performance. The IDC-100A-24 is engineered to provide a stable 24V output, making it ideal for various onboard systems. Its compact housing fits seamlessly into tight engine compartments, and the quick-disconnect connectors simplify installation and maintenance.

Applications in Marine and Boating

• Powering earth moving equipment on larger vessels
• Supplying energy to heavy-duty truck systems onboard
• Supporting electrical systems in buses used for marine transport
• Providing reliable power to marine vehicles’ critical components
• Operating CB radios for clear communication
• Driving 24 Volt lighting systems for enhanced visibility
• Supporting AM/FM sound systems for onboard entertainment

Enhanced Protection and Compliance

The IDC-100A-24 is built with multiple protective features to ensure the safety of your marine equipment. It includes fold-back current limiting, and protection against short circuits, overheating, overvoltage, and reverse polarity connections. Additionally, it is EMI/EMC compliant, adhering to European standards EN50081-1 (EMI) and EN50082-1 (EMC), as well as the European Automotive Directive 95/54/CE.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
