Ritchie SH-0126 200 Kit 24V System Resistor w/Instructions

Your standard 12V Ritchie compass lighting can easily be adapted for use with 24V or 32V marine electrical systems using our SH-0126 200 Kit. This reliable resistor kit ensures optimal performance and longevity of your compass lighting, keeping your navigation clear and visible.

Product Features

• Designed to reduce voltage from 24V or 32V systems to 12V for Ritchie compass lighting
• Includes easy-to-follow installation instructions
• Durable construction suitable for marine environments
• Ensures consistent lighting performance

Kit Contents

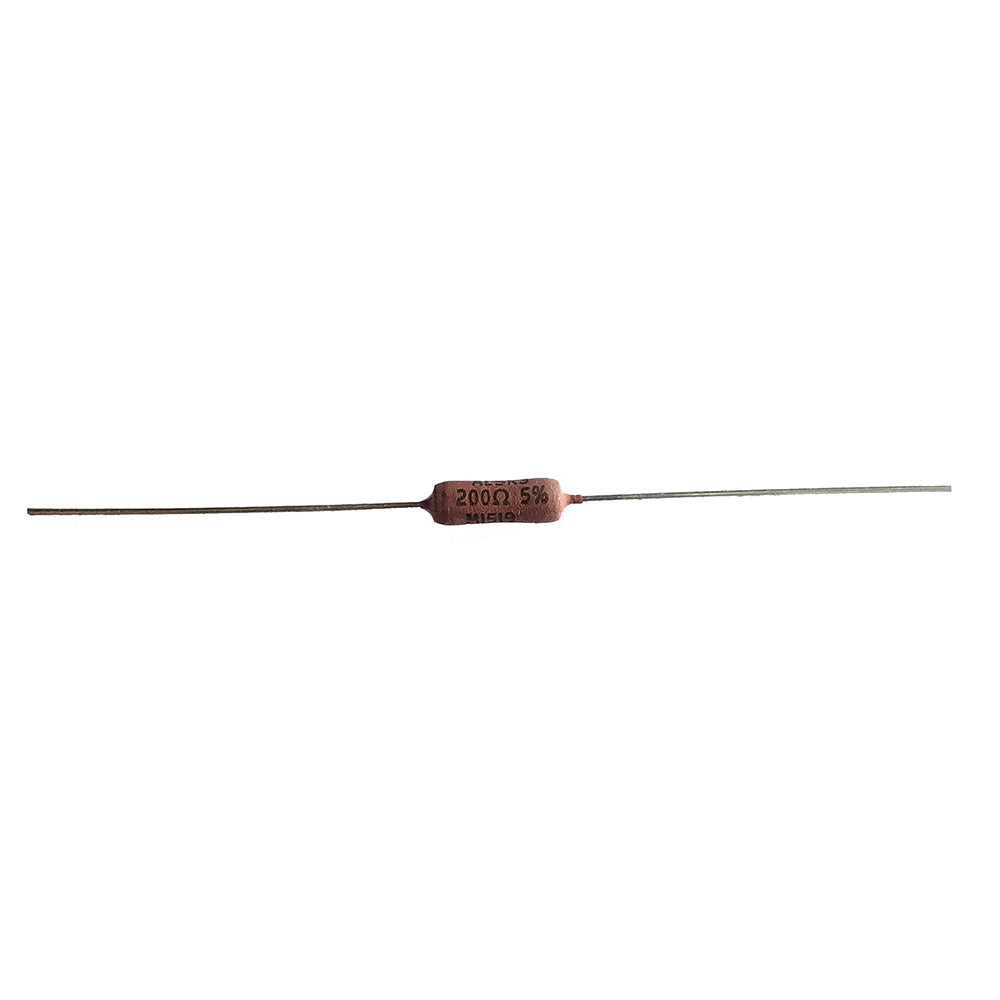

• 1 x Dropping Resistor
• 1 x Instruction Manual

Compatible Models

Model Number
BN-202
DNB-200
DNP-200
DNW-200
FN-201
FNW-201
All Globemasters (1996 to present)
SS-2000
SS-2000W
SS-5000
SS-5000W

Installation Instructions

The SH-0126 200 Kit comes with comprehensive instructions to guide you through the installation process. Follow these steps to properly install the dropping resistor and adapt your compass lighting to your boat's electrical system:

1. Disconnect the boat's battery to ensure safety.
2. Locate the compass lighting wiring.
3. Install the dropping resistor inline with the positive lead of the compass lighting circuit.
4. Secure all connections and ensure there are no exposed wires.
5. Reconnect the battery and test the compass lighting to ensure proper operation.

If you are unsure about the installation process, please consult a professional marine electrician to ensure the resistor is installed correctly and safely.

Why Choose the SH-0126 200 Kit?

Upgrading your Ritchie compass lighting with the SH-0126 200 Kit offers several benefits:

• Enhanced Compatibility: Seamlessly integrates with higher voltage marine electrical systems.
• Improved Reliability: Ensures consistent lighting performance, essential for safe navigation.
• Easy Installation: User-friendly instructions make the installation process straightforward.
• Durable Design: Built to withstand the harsh marine environment, providing long-term use.

Customer Support

Our team is dedicated to providing excellent customer support. If you have any questions or need assistance with your SH-0126 200 Kit installation, please reach out to our support team through our contact page.
