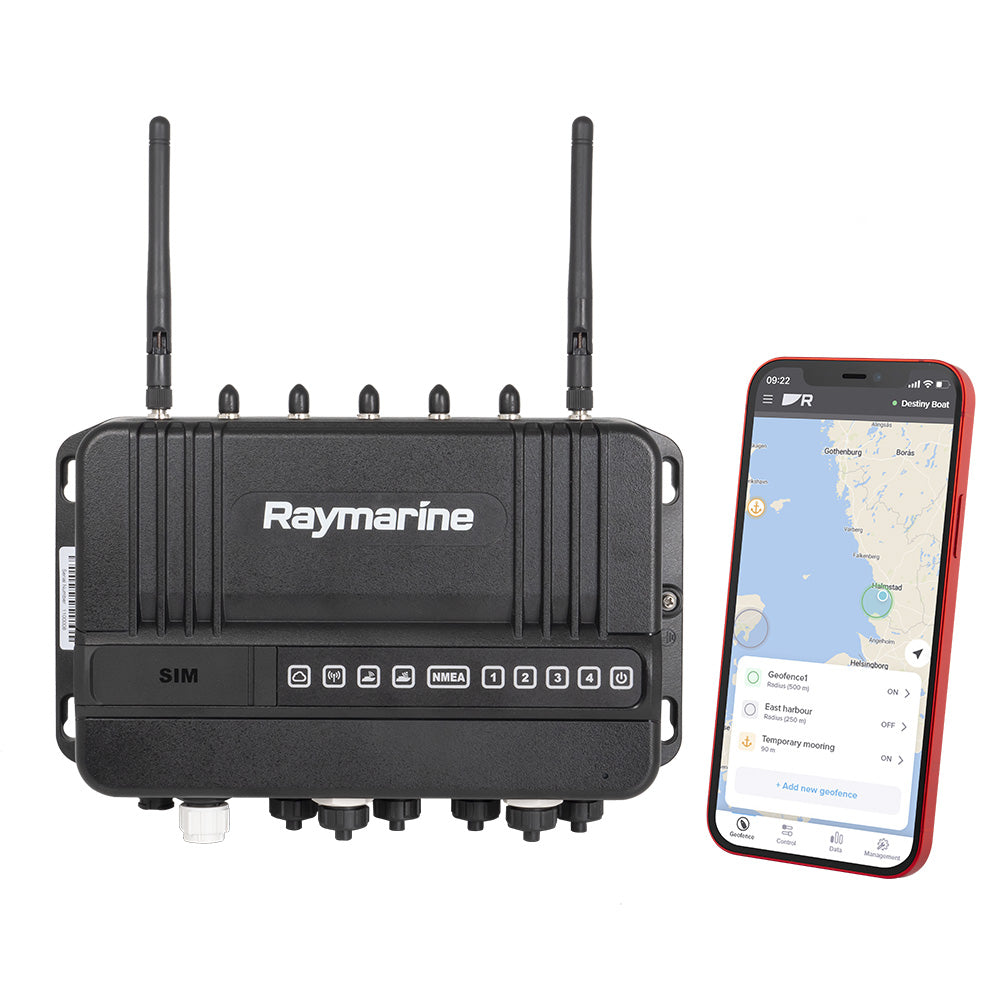

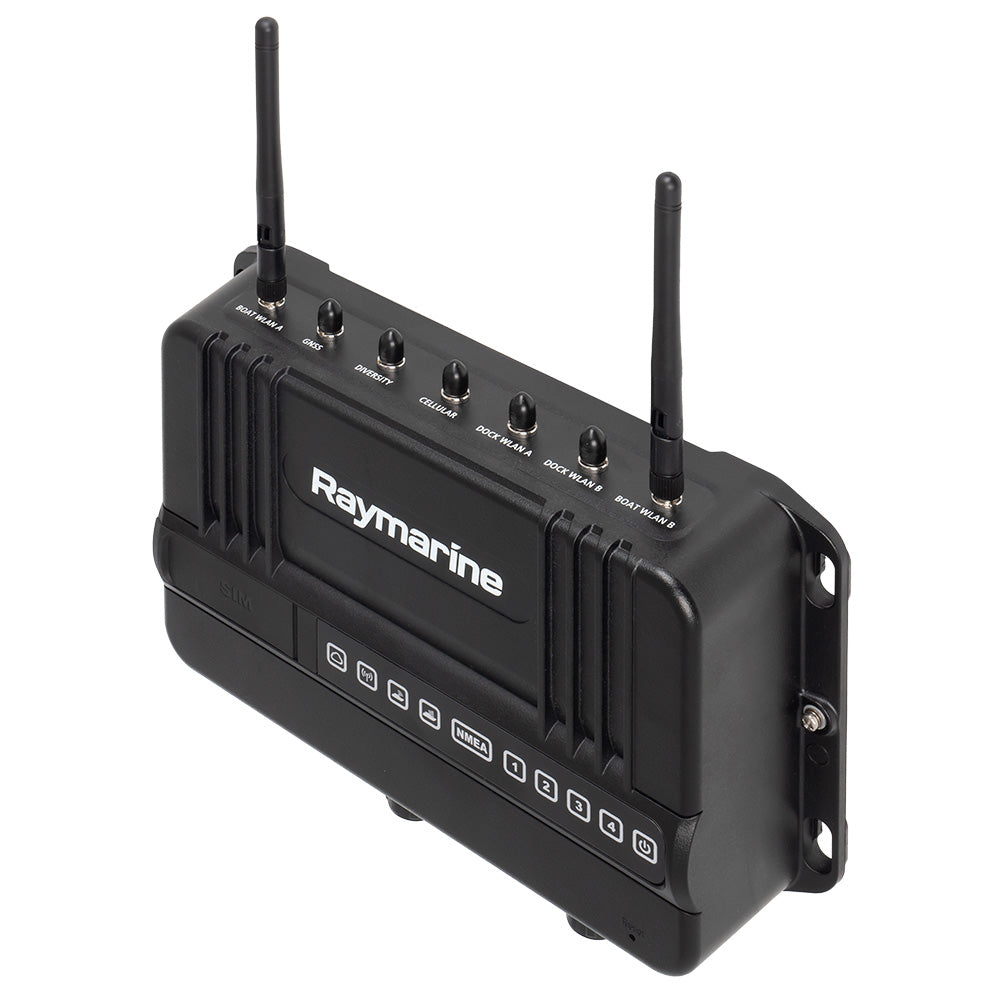

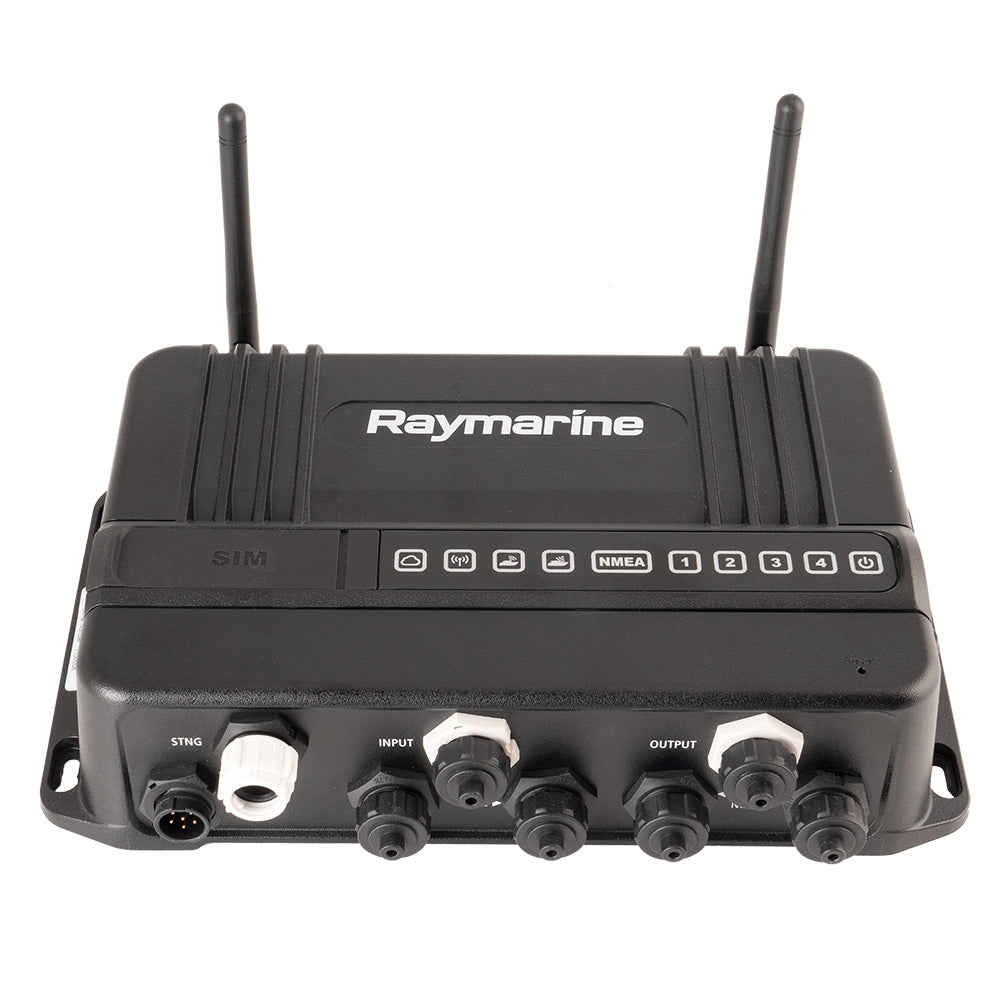

Raymarine YachtSense Link Marine Mobile Router

Experience uninterrupted connectivity on your vessel with the YachtSense™ Link Marine Mobile Router. Engineered for the marine environment, this advanced router ensures that your crew and family stay connected through reliable onboard networks and seamless switching between marina Wi-Fi and mobile broadband, no matter where you sail.

Comprehensive Connectivity

The YachtSense Link is a versatile marine mobile router that integrates Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi to create a unified network system. Whether you need to connect Axiom® displays, smartphones, tablets, or PCs, YachtSense Link provides a stable and secure connection for all your devices.

Seamless Network Switching

Never lose connection with YachtSense Link's automatic switching feature. It effortlessly transitions between marina Wi-Fi and mobile networks, ensuring that you remain connected whether you’re docked or cruising. This functionality is enhanced by dual SIM card support, allowing seamless connectivity to international mobile networks for global voyages.

Remote Access and Monitoring

Combine YachtSense Link with the Raymarine mobile app to gain remote access to your vessel’s network. This integration not only provides remote monitoring capabilities but also offers the added security of GeoFence vessel monitoring. Receive alerts and notifications if your vessel enters or exits predefined safety zones, enhancing your boat’s security.

Control and Automation

YachtSense Link features four low-voltage digital switching and monitoring channels, enabling you to control and monitor onboard electrical devices such as pumps, batteries, and lighting systems. The DIY setup is straightforward, using either a web browser or an Axiom display, making it easy to customize your vessel’s automation needs.

Stay Informed with Real-Time Data

Stay updated with real-time instrument and navigation data accessible both on board and remotely. YachtSense Link is equipped with four Raynet Ethernet ports for connecting Raymarine devices and a SeaTalkNG/NMEA2000 port, ensuring comprehensive data integration. The rugged IPX6 enclosure provides resistance against shocks, vibrations, and harsh marine conditions.

Technical Specifications

Power Specification

Environmental Specification

Physical Specification

Wireless Networks Specification

• 2.4 GHz (2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 13.28 dBm

• 2.4 GHz (2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm
• 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
• 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm

• LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
• LTE-TDD: B38/B39/B40/B41
• WCDMA: B1/B2/B4/B5/B6/B8/B19
• GSM: B2/B3/B5/B8

Low Power Consumption and GeoFence Support

YachtSense Link includes a low power consumption mode that supports GeoFence remote monitoring, ensuring efficient energy use while maintaining security oversight of your vessel’s location. Please note that a subscription is required for GeoFence services.

Durable and Reliable Design

Built to withstand the demanding marine environment, YachtSense Link features a rugged IPX6 enclosure that is resistant to water ingress, shocks, and vibrations. Its integrated GPS with a 4-in-1 antenna (GPS/GNSS, 3G, 4G, and Wi-Fi) ensures accurate and reliable positioning and connectivity in all conditions.

Download the Brochure (PDF) to learn more about the YachtSense™ Link Marine Mobile Router and how it can enhance your vessel’s connectivity and monitoring capabilities.
