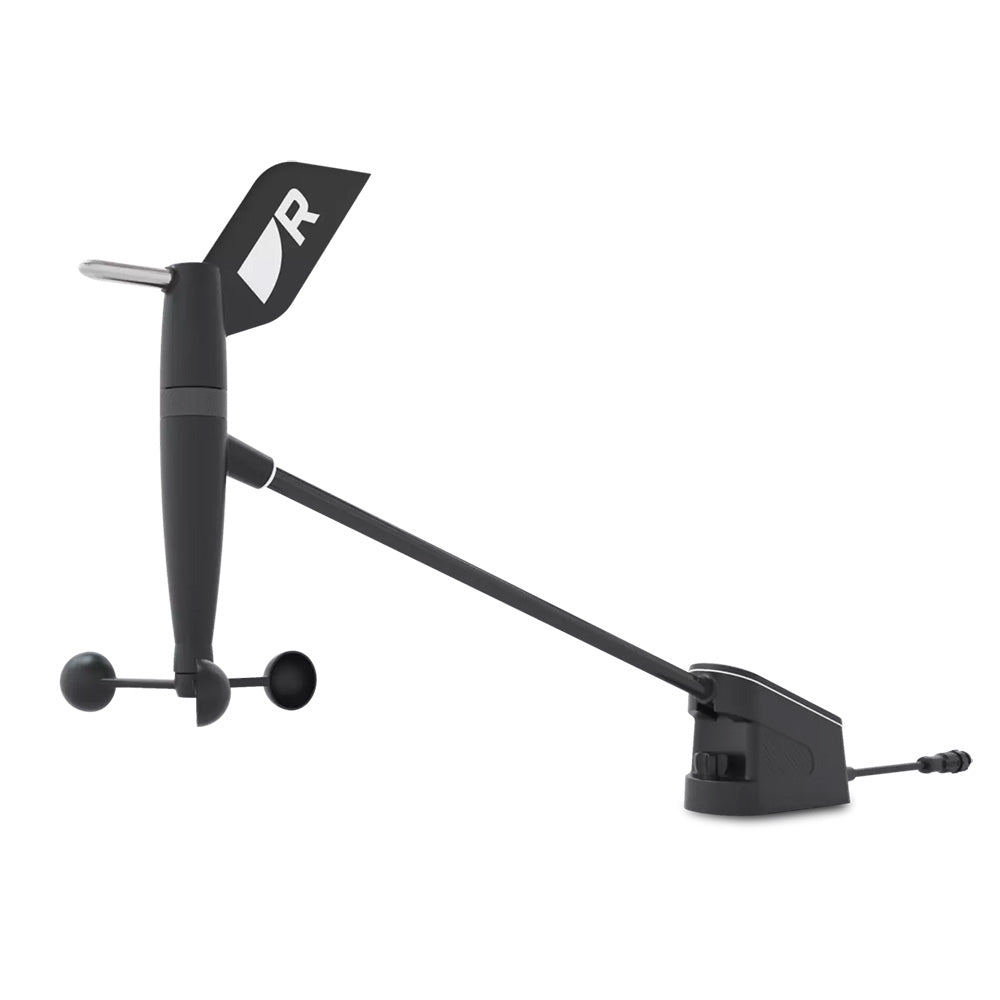

Raymarine RSW Wired - Smart Performance Wind Transducer - Short Arm w/30M Cable

The RSW Wired Smart Performance Wind Transducer is engineered for marine enthusiasts seeking precise and reliable wind speed and direction measurements. With its advanced Raymarine Smart Wind technology and a generous 30-meter cable, this transducer ensures seamless integration and optimal performance for your vessel.

Key Features

• Advanced Accuracy: Utilizes Raymarine Smart Wind technology to provide expert-level wind data without the need for additional processors or complex calibration.
• Seamless Installation: Designed for easy mounting and setup, allowing you to get onboard quickly without extensive technical knowledge.
• Durable Construction: Fine-tuned through wind tunnel testing to ensure consistent and reliable performance in various marine environments.
• Extended Cable Length: Comes with a 30-meter Smart Wind mast cable, providing flexibility in installation and optimal data transmission.
• Compatibility: Integrates effortlessly with Alpha Performance Displays and Axiom Chartplotters for enhanced sailing intelligence.

Installation & Setup

Installing the RSW Wired Smart Performance Wind Transducer is straightforward. The package includes all necessary mounting hardware, such as self-tapping screws for both the wind transducer and the wired gateway. Follow these simple steps to get started:

1. Mount the wind transducer at the masthead using the provided No.10 x 3/4" self-tapping screws.
2. Secure the wired gateway to a suitable location below deck with the No.7 x 3/4" self-tapping screws.
3. Connect the mast cable to the transducer and route it to the gateway.
4. Ensure proper insulation using the included heat shrink tube if shortening the mast cable is necessary.
5. Use the ring crimp terminal for an additional ground connection if the gateway is not mounted on a metal surface.

Technical Specifications

Category	Specification
Dimensions	Length: With cable: 657.762 mm (25.90 in) Without cable: 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in) Width: Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in) Height: Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 mm (1.21 in)
Power	Nominal Supply Voltage: 12 V DC (via SeaTalk NG) Operating Voltage Range: 9 V to 16 V DC Power Consumption: < 100 mW Fuse Rating: 5 A (SeaTalk NG backbone protection) NMEA 2000 LEN: 1 (based on nominal 9 V rating)
Environmental	Operating Temperature: -25°C to +55°C (-13°F to +131°F) Storage Temperature: -30°C to +70°C (-22°F to +158°F) Relative Humidity: Masthead: 100% Below Deck: up to 93% @ 40°C Waterproof Rating: Wind Transducer: IPx6/IPx7 Wired Gateway: IPx3 Max Wind Resistance: 115 mph (185 kph) Vibration Standard: EN 60945:2002 (exposed)

What's Included

• Wind Transducer
• Smart Wind-Wired Gateway
• Mast Cable, 30 m (98.43 ft) Reel
• SeaTalk NG to DeviceNet Adaptor Cable, 120 mm (4.72 in)
• No.10 x 3/4" Self Tapping Screws x 4
• No.7 x 3/4" Self Tapping Screws x 2
• 40 mm (1.57 in) Heat Shrink Tube
• Ring Crimp Terminal
• Comprehensive Documentation

Enhance Your Sailing Experience

The RSW Wired Smart Performance Wind Transducer provides sailors with trustworthy wind data, enabling smarter navigation and improved performance on the water. Whether you're a seasoned mariner or an avid boating enthusiast, this transducer integrates seamlessly with your existing Raymarine systems to deliver unparalleled accuracy and reliability.
