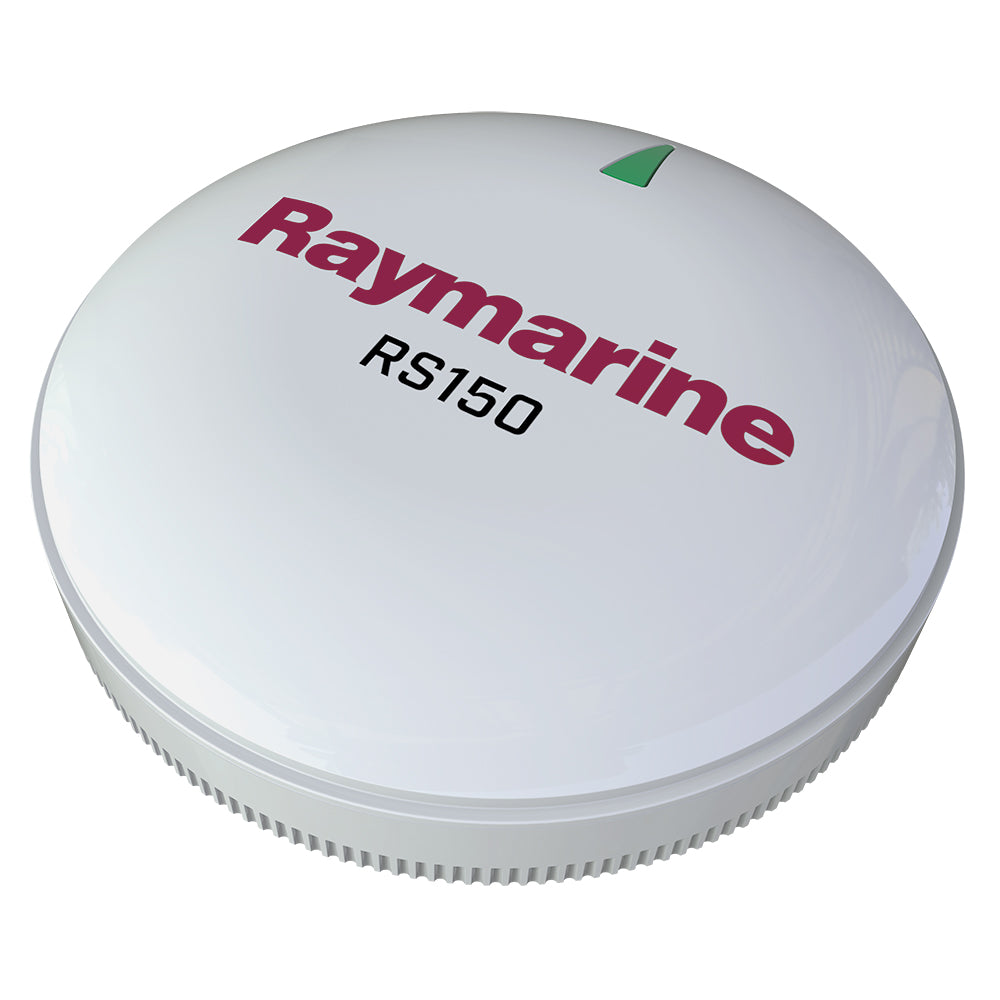

Raymarine RS150 GPS Sensor

The RS150 GPS Sensor is a high-performance, 72-channel GPS receiver designed for Raymarine navigation systems. Engineered for marine environments, the RS150 delivers rapid 10Hz position updates and superior accuracy, ensuring reliable navigation. With GNSS capabilities and support for the GLONASS satellite system, this sensor provides comprehensive global coverage for all your boating adventures.

Key Features

• 72-channel GPS and GLONASS receiver for enhanced satellite tracking
• Fast 10Hz position updates for real-time navigation accuracy
• Satellite Differential GPS-compatible with Space-Based Augmentation System (SBAS) support, including WAAS, EGNOS, MSAS, and GAGAN
• Low power consumption at just 30mA (1 LEN), ideal for prolonged use
• Compatible with SeaTalkng and NMEA2000 protocols using a DeviceNet adapter cable
• Flexible mounting options with a low-profile surface mount or optional pole mount
• High sensitivity for reliable signal acquisition down to -163dBm

Technical Specifications

Specification	Details
Nominal Supply Voltage	12V D.C. Powered by N2K bus
Operating Voltage Range	8 - 32V DC
Power Consumption	30 mA max (NMEA LEN = 1)
Operating Temperature	-13ºF to 131ºF (-25ºC to +55ºC)
Relative Humidity	Maximum 93%
Waterproof Rating	IPx6/7
Connection Protocols	SeaTalkng, NMEA 2000 (certified via DeviceNet adapter)
Sensitivity	High sensitivity, acquisition down to -163dBm
Number of Channels	72
Positioning Systems	GPS & GLONASS
Satellite Differential Type	WAAS (USA), EGNOS (Europe), MSAS (Japan), GAGAN (India)
Differential Acquisition	Automatic
Position Accuracy (95%)	<15 meters
Position Accuracy with SDGPS (95%)	<5 meters
Speed Accuracy (95%)	<0.3 knots
Time to First Fix (Cold Start)	<2 minutes (<45 seconds typical)
Time to First Fix (Hot Start)	<8 seconds with up to 72-hour battery hold-up
Geodetic Datum	WGS84

Product Dimensions and Packaging

• Type: Antennas
• Box Dimensions: 4"H x 7"W x 9"L
• Weight: 1.8 lbs
• UPC: 723193796917
