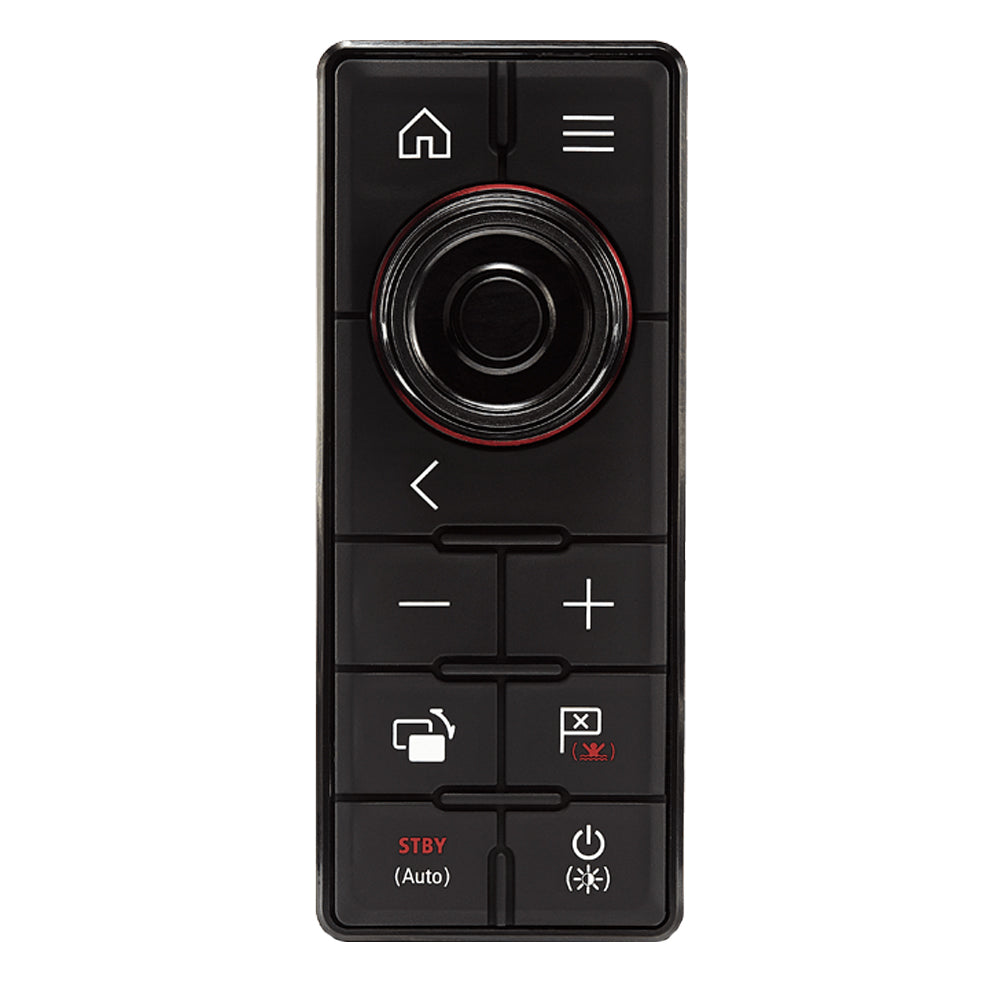

Raymarine RMK-10 System Remote Control Portrait Keypad

The RMK-10 System Remote Control Portrait Keypad is the ultimate solution for seamless navigation control on your marine vessel. Designed for anglers, sailors, and boating enthusiasts, this ultra-compact wired keypad allows you to manage your Raymarine Multifunction Displays (MFDs) effortlessly from any convenient location on your boat.

Key Features

• Comprehensive Control: Manage aSeries, cSeries, eSeries, eS Series, and gS Series MFDs with dedicated keys for home, menu, zoom in/out, window control, waypoint management, power/brightness, and Evolution autopilot control.
• Integrated Rotary Controller: Features the same multifunction rotary controller with an integrated cursor pad found on eS Series MFDs for intuitive navigation.
• Flexible Mounting Options: Choose between surface-mount or flush-mount installation with key mats available for horizontal or vertical setups, allowing placement in helm chairs, overhead electronics boxes, secondary monitors, or below-deck navigation tables.
• RayNet Connectivity: Utilize Raymarine’s high-speed RayNet networking to control single or multiple MFDs from a single RMK-10, ensuring seamless operation across all displays.
• HybridTouch™ Compatibility: When paired with aSeries or gS Series Multitouch displays, the RMK-10 offers full HybridTouch™ control, allowing you to operate the navigation system via touch, keypad, or a combination of both.
• Durable Design: Built to withstand marine environments with an IPX6 waterproof rating, ensuring reliable performance on deck or in below-deck installations.

Mounting Options

The RMK-10 is designed for versatile installation to suit your specific boating needs:

• Helm Chair Integration: Mount the RMK-10 in the armrest of your helm chair for easy access while keeping your hands free for smooth sailing.
• Overhead Electronics Boxes: Position the keypad in overhead compartments, eliminating the need to reach for the main MFD.
• Secondary Displays: Connect to secondary monitors or onboard LCD TVs via VGA or HDMI, enabling control from navigation tables, salons, or staterooms.

Technical Specifications

Power Specifications
PoE Class	Class 1
Nominal Supply Voltage	12 / 24 V DC
Operating Voltage Range	10.8V DC to 31.2V DC
Power Consumption	3.84W

Environmental Ratings

Environmental Specifications
Operating Temperature	-25ºC to +55ºC (-13ºF to 131ºF)
Storage Temperature	-30ºC to +70ºC (-22ºF to 158ºF)
Relative Humidity	Maximum 75%
Waterproof Rating	IPX6

Connectivity Options

Wired Connections
Network / Power	aSeries, cSeries, eSeries: 100 Mb/s gS Series: 1000 Mb/s plus PoE
Alternate Power	1 x power connector

Enhance Your Boating Experience

The RMK-10 Remote Control Portrait Keypad transforms how you interact with your vessel's navigation system. Whether you're navigating rough seas or enjoying a leisurely day on the water, the RMK-10 ensures that all your essential controls are within easy reach. Experience the blend of convenience, durability, and advanced technology that Raymarine is renowned for, and take full command of your maritime adventures.
