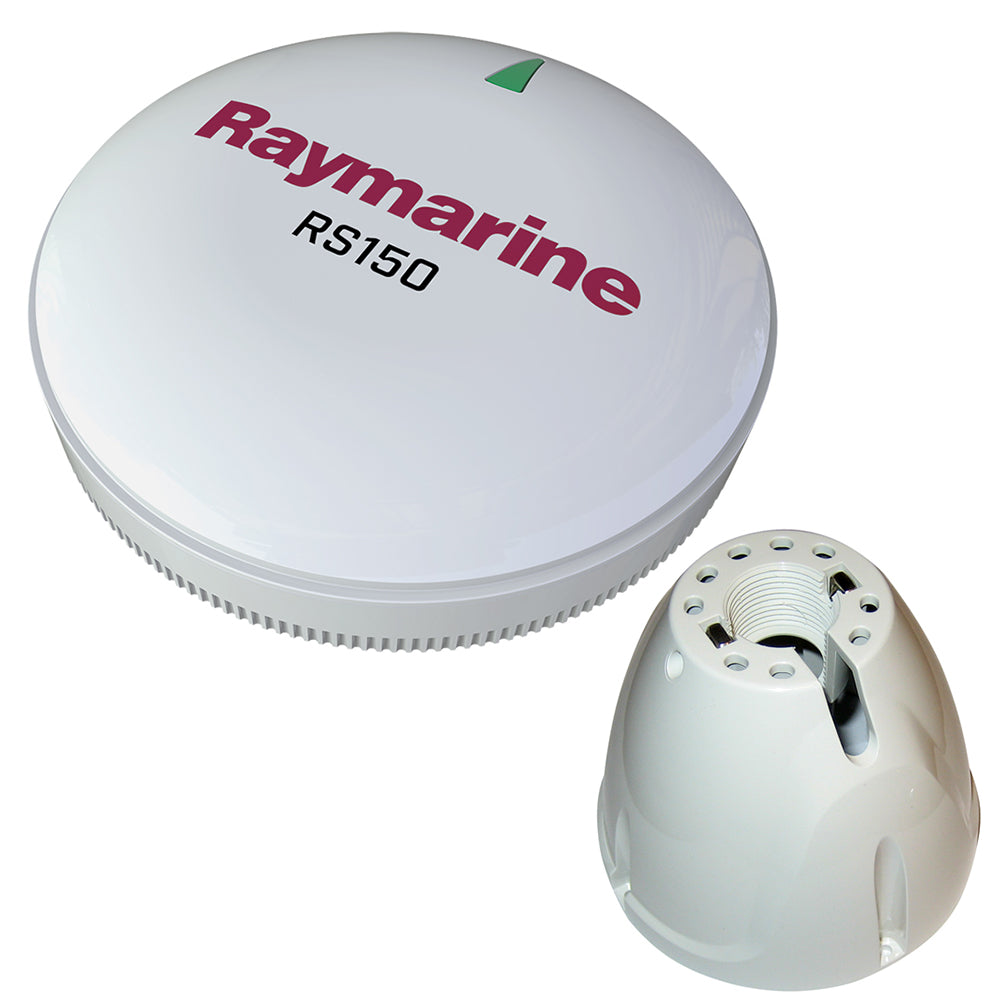

Raymarine RayStar 150 GPS Sensor w/Pole Mount

The RayStar 150 GPS Sensor with Pole Mount is a state-of-the-art navigation accessory designed for marine enthusiasts seeking precision and reliability. Engineered for Raymarine systems, this high-performance GNSS receiver ensures accurate positioning and seamless integration with your boating setup.

Key Features

• 72-channel GPS receiver for enhanced signal acquisition
• Fast 10Hz position updates for real-time navigation
• Supports satellite differential GPS with SBAS compatibility including WASS, EGNOS, MSAS, and GAGAN
• GNSS receiver with GLONASS support for global coverage
• Low power consumption at just 30mA (NMEA LEN = 1)
• Compatible with SeaTalkng and NMEA2000 networks using a DeviceNet adapter cable
• Versatile mounting options: low profile surface mount or optional pole mount

Technical Specifications

Parameter	Specification
Nominal Supply Voltage	12V D.C. (Powered by N2K bus)
Operating Voltage Range	8 - 32V DC
Power Consumption	30 mA max (NMEA LEN = 1)
Operating Temperature	-25ºC to +55ºC (-13ºF to 131ºF)
Relative Humidity	Up to 93%
Waterproof Rating	IPx6/7
Supported Connection Protocols	SeaTalk™ng, NMEA 2000 (certified via DeviceNet adapter)
Sensitivity	High sensitivity with acquisition down to -163dBm
Number of Channels	72
Positioning Systems	GPS & GLONASS
Satellite Differential Types	WAAS (USA), EGNOS (Europe), MSAS (Japan), GAGAN (India)
Differential Acquisition	Automatic
Position Accuracy (95%)	<15 meters
Position Accuracy with SDGPS (95%)	<5 meters
Speed Accuracy (95%)	<0.3 knots
Time to First Fix (Cold Start)	<2 minutes (<45 seconds typical)
Time to First Fix (Hot Start)	<8 seconds (with 72-hour hold-up battery)
Geodetic Datum	WGS84

Pole Mount for RS150 GPS Antenna

The RayStar 150 Pole Mount is specifically designed to complement the RS150 GPS Sensor, providing a secure and optimal positioning solution for your antenna. Whether you prefer a low-profile surface mount or an elevated pole mount, this accessory ensures peak performance and signal reception for your navigation system.

Pole Mount Specifications

Parameter	Specification
Type	Antennas
Box Dimensions	8"H x 9"W x 12"L
Weight	2.6 lbs
UPC	723193817513

Enhance your marine navigation experience with the RayStar 150 GPS Sensor and Pole Mount, offering unmatched accuracy, reliability, and ease of integration for all your boating adventures.
