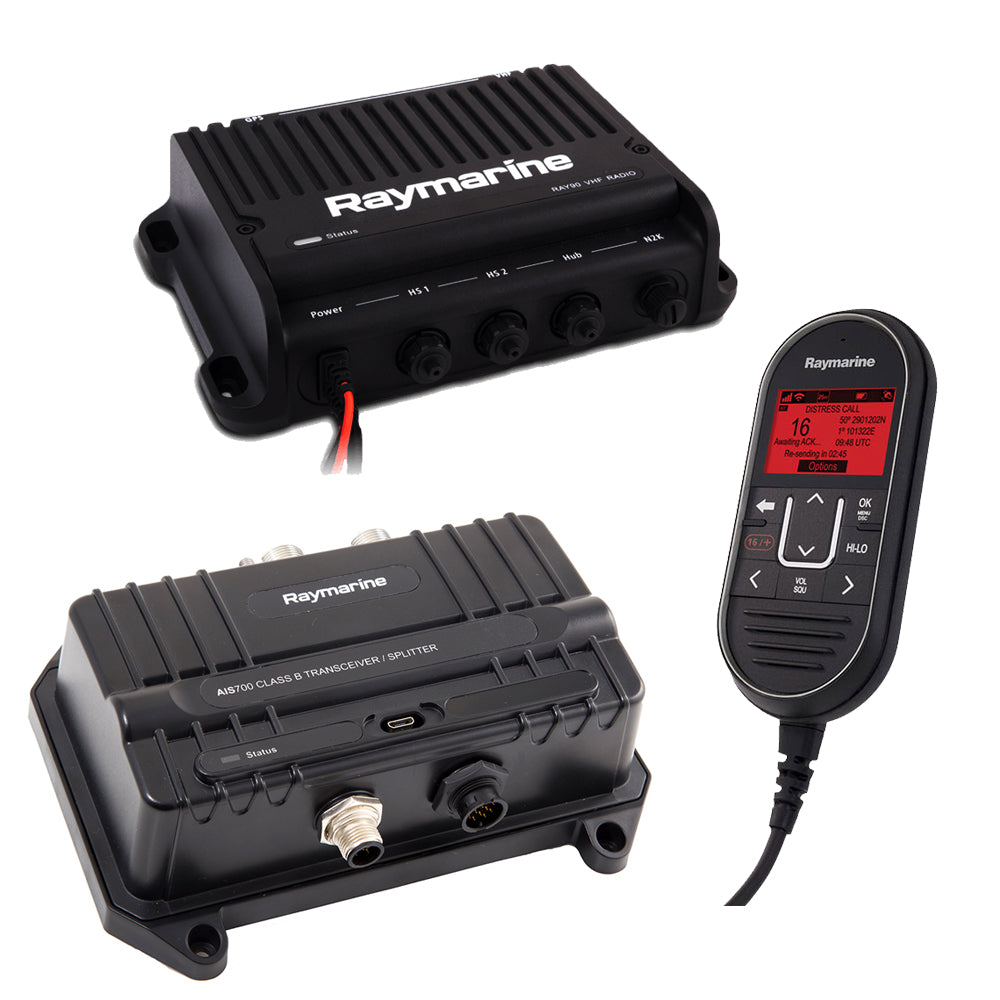

Raymarine Ray90 VHF Radio AIS700 Bundle
Raymarine Ray90 VHF Radio AIS700 Bundle is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
Enhance your vessel's communication and navigation capabilities with the Ray90 VHF Radio & AIS700 Bundle. This comprehensive package combines Raymarine's top-of-the-line VHF radio with a Class B AIS transceiver, delivering unparalleled performance, reliability, and safety on the water.
Ray90 VHF Radio
The Ray90 VHF Radio by Raymarine sets a new standard in marine communications. Designed with a sleek black-box transceiver, the Ray90 offers robust multi-station communication while maintaining a discreet profile. The ergonomically designed RayMic handset and remote speaker ensure full control with crystal clear audio, providing both power and flexibility for all your maritime communication needs.
Key Features
- Multi-station capable black-box VHF radio
- Wireless RayMic handset and active speaker available
- Includes wired handset and passive speaker
- System expandable to two handsets
- Built-in loudhailer and fog signal generator
- Optional external GPS integration
- Seamless NMEA2000 and NMEA0183 networking
Advanced Position Tracking
Monitor up to five nearby DSC-equipped vessels with Ray90’s position tracking feature. Automatically share vessel positions with your Raymarine MFD, allowing you to keep track of your cruising party, monitor vessels of interest, or manage your local fleet. In Europe, the Ray90 supports the ATIS system on navigable inland waterways, ensuring comprehensive coverage.
Loudhailer Capabilities
Communicate effectively on-deck and across the harbor with Ray90’s built-in loudhailer. For enhanced presence, connect an optional hailing horn to achieve 30 watts of audio output with 2-way talkback. In foggy conditions, the loudhailer can automatically sound necessary fog signals for both power and sailing vessels, ensuring safety in low-visibility scenarios.
Durable and Waterproof Design
The Ray90 transceiver is housed in a solid aluminum casing, providing excellent shock and vibration resistance along with superior heat dissipation. RayMic handsets feature super-bright backlighting for easy visibility in all conditions and oversized keys for a secure grip and quick access to frequently used functions.
System Expansion
The Ray90 system comes with one RayMic wired handset and a passive speaker kit. Expand your setup with an additional RayMic handset and a remote speaker. For environments with high ambient noise, opt for the optional active remote speaker. Whether you have a small dinghy or a large yacht, the Ray90 delivers the communication power and performance essential for safe and effective maritime operations.
What's Included
- Ray90/Ray91 VHF DSC Radio (includes fitted power and data cable)
- RayMic handset cradle
- RayMic handset
- RayMic handset adaptor cable (12-pin female to 12-pin male with RCA Audio)
- Passive speaker
- Passive speaker mounting gasket
- Passive speaker mounting screws (4)
- Documentation
- VHF radio mounting screws (4)
- Handset cradle mounting screws (4)
- DeviceNet to SeaTalkng® adaptor
AIS700 Class B AIS Transceiver
The AIS700 Class B Automatic Identification System (AIS) transceiver from Raymarine is engineered to work seamlessly with Raymarine’s multifunction navigation displays. AIS700 enhances your situational awareness by allowing your vessel to exchange vital navigation information, such as vessel name, identification, course, and speed, with nearby ships.
Important FCC Programming Information
As the FCC requires all units sold in the US to be programmed by a qualified technician, please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License, along with the vessel master or owner's signature on the completed programming form, is required.
Download the programming form here.
Features
- Full transmit and receive AIS for enhanced situational awareness and safety
- Latest SO-TDMA networking technology for longer range and faster performance
- Built-in antenna splitter for easy installation with existing VHF radio antenna
- Compatible with NMEA2000, NMEA0183, PC, and SeaTalkng
- Software or hardware switchable Silent Mode for enhanced security when needed
Silent Mode Functionality
AIS700 supports both hardware and software-enabled Silent Mode, allowing you to temporarily stop broadcasting your vessel's data while still receiving updates from surrounding traffic. This feature is ideal for transiting secure waters or competitive scenarios where you wish to keep your vessel’s location discreet. Re-enable normal AIS broadcasts effortlessly via Raymarine MFD controls or a hardware switch.
Compact and Easy Installation
The super-compact AIS700 is designed for unobtrusive mounting inside your helm, service locker, or other discreet locations. It integrates seamlessly with onboard electronics through NMEA2000 networking and includes a built-in NMEA0183 multiplexer for compatibility with older systems. Additionally, the AIS700 features a USB 2.0 connection for integration with computers or laptops running AIS-compatible navigation software and a Secure Digital (SD) memory slot for continuous AIS data recording.
What's Included
- AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
- GNSS (GPS) Antenna, gasket, and pole mount kit
- Power and data cable (2 meters)
- VHF Radio antenna interconnect cable (1 meter)
- DeviceNet to SeaTalk NG Cable (1 meter)
- Mounting Hardware
- Pro-AIS Programming Software CD-ROM
- Documentation kit
Specifications
Ray90 VHF Radio
Feature | Details |
---|---|
Remote Mic Capable | Yes |
NMEA 2000 | Yes |
Hailer | Yes |
GPS Included | No |
Function | Receive/Transmit |
Display Included | No |
Built-In GPS | No |
Antenna Included | Yes |
AIS | Yes |
AIS Class | B |
Box Dimensions | 12"H x 13"W x 25"L |
Weight | 13.2 lbs |
UPC | 723193854396 |
AIS700 Class B AIS Transceiver
Feature | Details |
---|---|
AIS Class | B |
Networking | NMEA2000, NMEA0183, SeaTalkng |
Silent Mode | Software or Hardware Switchable |
GPS Receiver | Built-in 72-channel with external antenna required |
USB Connectivity | Yes, USB 2.0 |
Memory Slot | Secure Digital (SD) |
Dimensions | Compact for easy mounting |
