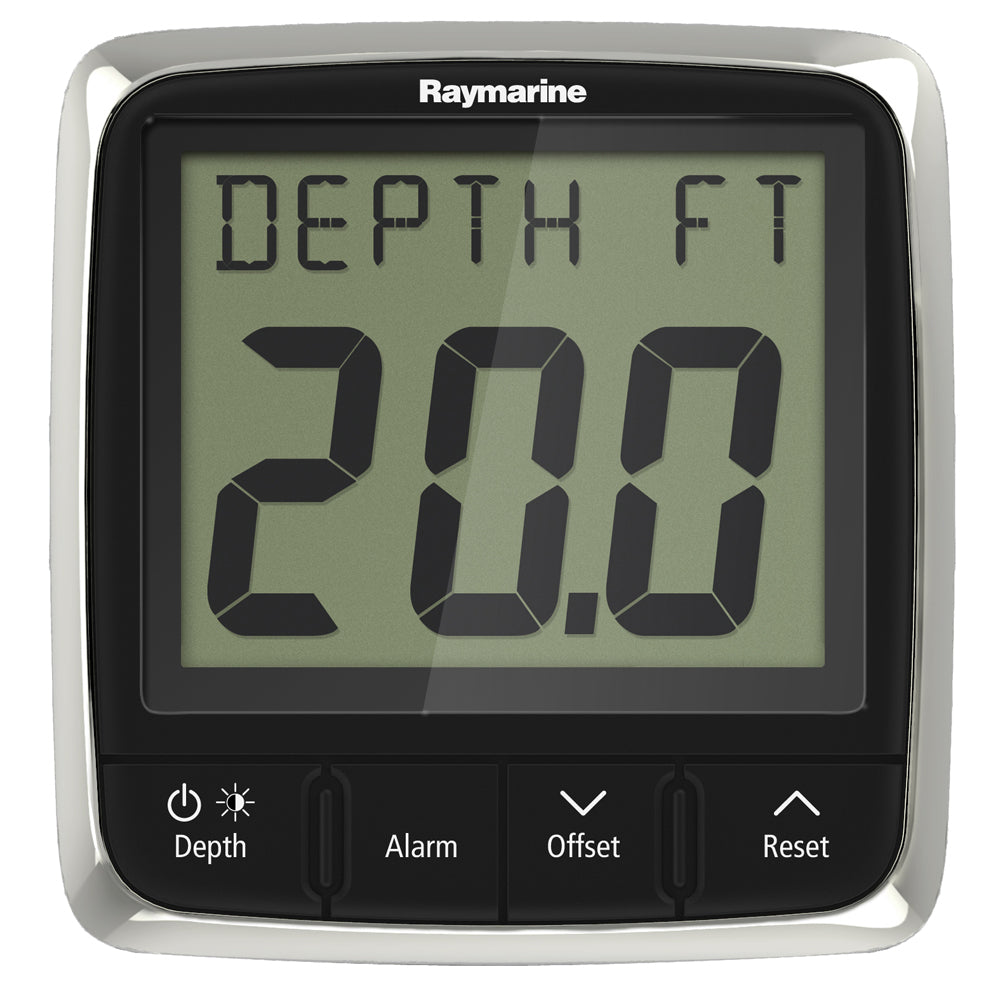

Raymarine i50 Depth Display

The Raymarine i50 SeaTalk^ng Depth Instrument delivers precise and reliable depth measurements, designed to enhance your boating experience with its sleek design and advanced connectivity. Whether you're a casual boater or a seasoned mariner, the i50 Depth Instrument offers the perfect blend of functionality, durability, and modern aesthetics to keep you informed and in control on the water.

Key Features

• Red Backlighting: Ensures outstanding visibility during nighttime navigation.
• Advanced Networking: Supports SeaTalk^ng 0 CANBUS and SeaTalk-1 for maximum flexibility and easy integration.
• Expandable Connectivity: Allows connection of additional i50 depth displays for comprehensive monitoring.
• Built-In Transducer Connection: Simplifies setup by integrating depth transducers directly into the instrument.
• Ultra-Modern Design: Complements Raymarine's a-Series, c-Series, and e-Series multifunction displays.
• High-Contrast LCD: Large, crisp displays with red backlighting for excellent readability in all lighting conditions.
• Energy Efficient: Consumes less than 1W as a repeater and 2.4W when hosting a transducer.
• Waterproof Construction: IPX6 rated to withstand harsh marine environments.
• Easy Installation: Low-profile surface mounting kit and optional bracket mounting available.
• Warranty: Covered by Raymarine's industry-leading 2-year warranty, extendable to 3 years with registration.

Compatibility and Networking

The i50 Depth Instrument is fully compatible with Raymarine's i70, p70, and p70R Color Instruments and Autopilots, allowing you to customize your marine electronics setup seamlessly. Its dual networking support for SeaTalk^ng 0 CANBUS and SeaTalk-1 ensures easy integration with both new and legacy systems, making it an excellent choice for upgrading older instruments.

Design and Installation

Featuring a square shape with dimensions of 4"H x 7"W x 10"L and a footprint of 110mm x 115mm, the i50 Depth Instrument is designed to fit perfectly alongside other Raymarine ST60+ instrumentation. The ultra-sleek design not only enhances the aesthetic of your boat's helm but also offers practical installation options with a low-profile surface mounting kit and a silicone rubber sun cover to protect against the elements. An optional bracket mounting kit is available separately for additional installation flexibility.

Performance and Efficiency

Engineered to operate efficiently from a 12V DC power source, the i50 Depth Instrument minimizes power consumption while delivering reliable performance. It draws less than 1W when functioning as a repeater and up to 2.4W when connected to a transducer. The high-contrast LCD displays ensure clear visibility of depth readings, maximum and minimum depths, and various alarms, including shallow and deep depth alarms as well as anchor alarms, keeping you informed and safe while navigating.

Specifications

Shape	Square
Transducer Type	Not Included
Instrument Function	Depth
Box Dimensions	4"H x 7"W x 10"L
Weight	2.15 lbs
UPC	723193730720
Waterproof Rating	IPX6
Power Consumption	<1W (Repeater), 2.4W (Hosting Transducer)

Additional Resources

For detailed information on installation, operation, and maintenance, please refer to the Owner's Manual (PDF).
