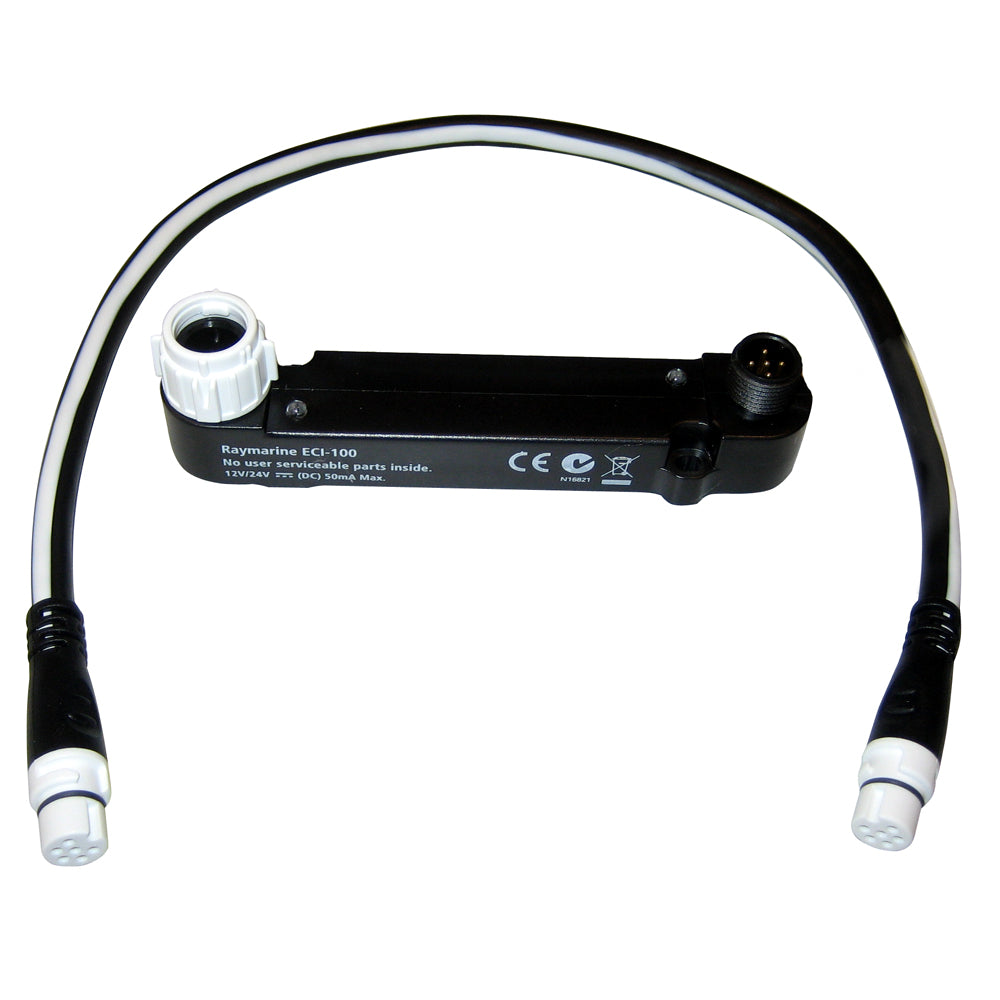

Raymarine ECI-100 Universal Engine & Control Interface

The ECI-100 Universal Engine and Control Interface is your all-in-one solution for seamlessly integrating engine instrumentation and drive-by-wire steering with Raymarine’s advanced autopilot and navigation systems. Designed for reliability and ease of use, the ECI-100 bridges the gap between your vessel’s engine data and cutting-edge marine electronics, enhancing your boating experience with comprehensive control and monitoring capabilities.

Benefits

• Single point of connection for engine data and drive-by-wire autopilot control, simplifying your setup.
• Cost-effective and straightforward solution eliminates the need for multiple engine and autopilot gateways.
• Enables Raymarine's Evolution 9-axis sensor and adaptive autopilot control for drive-by-wire propulsion without proprietary gateways.
• Access engine data displays and full autopilot control alongside Raymarine's top-tier radar, sonar, and navigation technologies on a single touchscreen display.
• Compatible with a range of displays from our space-saving aSeries to the flagship gS Series, all running LightHouse v8 or later.
• Customize displays easily to show engine performance data, fuel consumption, alarms, and more.
• Monitor engine information on your smartphone or tablet using Raymarine mobile apps for on-the-go access.
• Easy installation process makes engine and navigation integration achievable for vessels of virtually any size.

Engine Data Parameters

The ECI-100 Universal Engine and Control Interface monitors a comprehensive set of engine parameters to ensure you have all the necessary information at your fingertips:

Parameter	Display on Interface
Engine Speed	Yes
Engine Oil Temperature	Yes
Engine Temperature	Yes
Engine Oil Pressure	Yes
Engine Coolant Pressure	Yes
Engine Fuel Rate	Yes
Boost Pressure	Yes
Battery Potential	Yes
Transmission Oil Pressure	Yes
Transmission Oil Temperature	Yes
Total Engine Hours	Yes
Fuel Tank Level	Yes
Trip Fuel Used	Calculated by ECI-100
Alternator Potential	Yes
Engine Torque	Yes
Engine Percent Load	Yes
Transmission Gear	Yes
VIN	No
Software Number	No

Simple Integration, Powerful Performance

The ultra-compact ECI-100 connects effortlessly to the industry-standard NMEA2000 or SAE J1939 Engine Data Bus, widely used by major marine engine manufacturers. This ensures broad compatibility and reliable performance across various systems.

• Volvo Penta
• Yamaha Marine (Command Link Plus only)
• Caterpillar
• Yanmar Marine

Raymarine is dedicated to providing seamless integration with leading marine engines. For the latest engine compatibility information, visit Raymarine’s official website.

An industry-standard DeviceNet port allows the ECI-100 to connect to manufacturer-specific CAN bus cabling. The interface then links to NMEA2000 networks using the SeaTalk^ng cabling system. Each isolated port on the ECI-100 is independently powered, ensuring dependable and worry-free performance for both navigation electronics and engine systems.

SAE - Society of Automotive Engineers standard

Download the Brochure (PDF)
