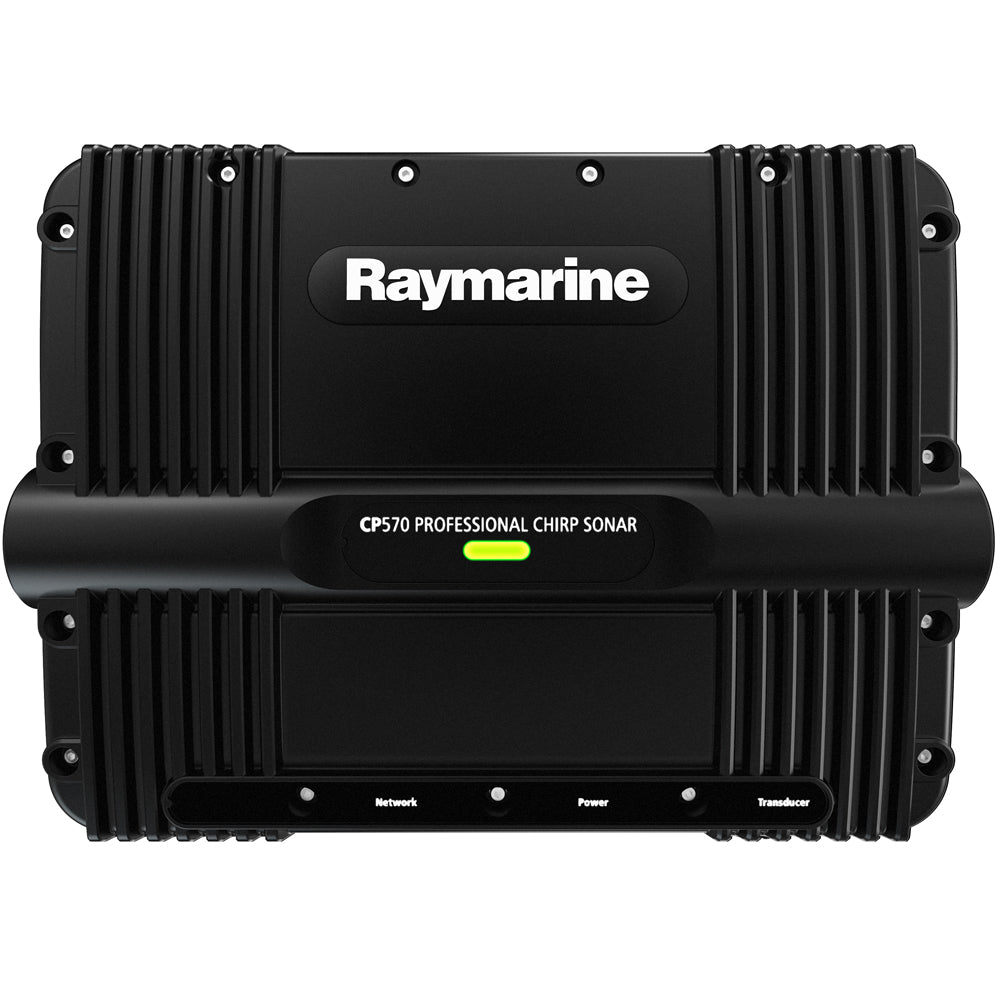

Raymarine CP570 Professional CHIRP Sonar Module

The CP570 Professional CHIRP™ Sonar Module is a high-performance sonar solution designed for serious anglers and competitive fishermen. Engineered to deliver exceptional target separation and high-resolution CHIRP sonar imagery, the CP570 seamlessly integrates with Raymarine multifunction displays, ensuring you never miss a beat on your fishing adventures.

Advanced CHIRP Sonar Technology

The CP570 utilizes Raymarine's exclusive wide spectrum CHIRP sonar technology, providing superior target definition and enhanced sensitivity. This advanced transceiver operates across a broad range of frequencies, allowing it to penetrate dense schools of baitfish, identify thermoclines, and accurately target game fish with unparalleled precision.

Key Benefits:

• Best-in-class target separation
• High-resolution sonar imagery
• Enhanced sensitivity for deeper and clearer underwater views

Superior Sonar Performance

Designed for offshore use and tough marine conditions, the CP570 intelligently filters out unwanted noise, ensuring reliable bottom tracking and crisp fish targets. With two fully independent sonar channels, anglers benefit from faster target identification and a combined output power of up to 4kW, making it ideal for both professional and tournament fishing.

Performance Highlights:

• Wide Spectrum CHIRP Sonar
• Dual independent CHIRP channels (25 to 250kHz)
• Maximum power output of 4kW
• Depth range up to 10,000' (3,000M)

Stunning Clarity and Detail

The CP570 delivers ten times the resolution of standard sonars, providing sharper and more defined fish targets. Its TruZoom™ magnification mode allows you to see additional target details without compromising resolution. Additionally, the ultra-fast ping rate processing ensures accurate bottom tracking even in extreme offshore conditions.

Features for Enhanced Visibility:

• TruZoom™: Magnifies views of fish targets, bottom structures, and baitfish without losing resolution.
• Automatic noise filtering for clear sonar images.
• Ultra-fast ping rate processing for precise tracking.

Easy Customization

Customize the CP570 to match your specific fishing preferences with optional transducers available in low, medium, and high CHIRP frequencies, and in standard or wide-beam configurations. The module automatically recognizes connected transducers and adjusts sonar parameters for optimal performance. Additionally, you can view and control each CHIRP channel independently, allowing for personalized sonar window configurations on Raymarine's LightHouse II powered multifunction displays.

Customization Options:

• Optional low, medium, and high CHIRP frequency transducers
• Standard or wide-beam transducer choices
• Independent control of each CHIRP channel
• Custom sonar window layouts

Key Features

• TruZoom™: Enhances target detail without loss of resolution.
• Automatic transducer identification with Airmar Xducer ID.
• Compatible with Airmar Wide Beam transducers.
• Waterproofing Standard: IPX6 rated rugged aluminum enclosure.
• Compatibility: Compatible with aSeries, cSeries, eSeries, and gS Series displays.
• Nominal Supply Voltage: 12/24 V DC.
• Power Consumption: 30.6W (Maximum).
• Connections: Power connection, RayNet network connection (10/100 Mb/s), and transducer connection.

Technical Specifications

Specification	Details
Sonar Type	Wide Spectrum CHIRP
Power	Max 4kW output using 2 independent CHIRP channels
Frequency & Channels	Dual independent CHIRP channels from 25 to 250kHz
Depth Range	Up to 10,000' (3,000M)
Supply Voltage	12/24 V DC
Power Consumption	30.6W (Maximum)
Connections	Power, RayNet (10/100 Mb/s), Transducer

For more detailed information, please refer to the Brochure (PDF).
