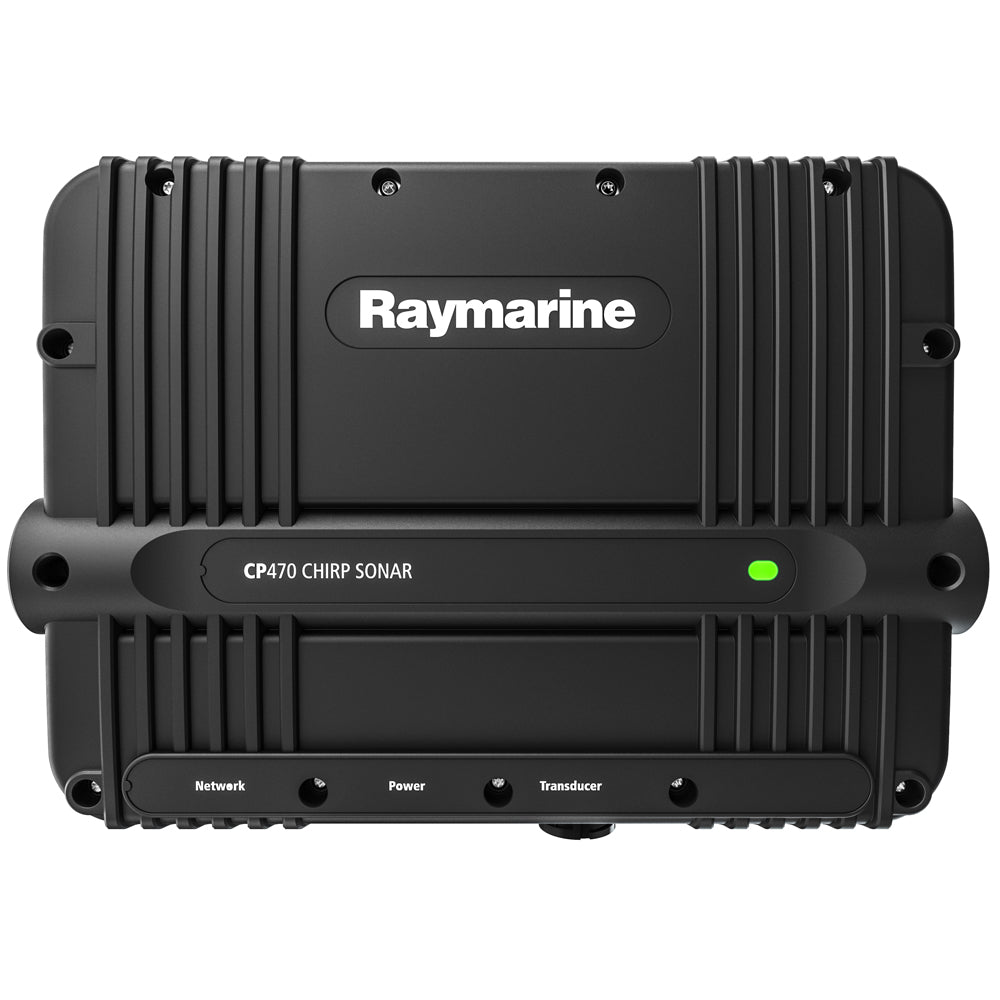

Raymarine CP470 CHIRP Sonar Module

The CP470 CHIRP Sonar Module is your ultimate tool for offshore and coastal fishing, delivering unmatched sonar performance and crystal-clear imagery to enhance your angling experience. Designed for serious anglers, this high-performance module seamlessly integrates with Raymarine multifunction displays, ensuring you never miss a beat beneath the waves.

Unrivaled CHIRP Sonar Technology

The CP470 CHIRP Sonar Module harnesses Raymarine's exclusive wide spectrum CHIRP technology, providing superior target separation and high-resolution sonar imagery. Whether you're navigating dense schools of baitfish, identifying thermoclines, or targeting game fish, the CP470 delivers precise and reliable results.

Key Features:

• Wide Spectrum CHIRP Sonar: Enhanced sensitivity and superior target definition for clear underwater views.
• Dual Adjustable Channels: Two independent CHIRP channels covering frequencies from 25 to 250kHz.
• Extended Depth Range: Track the sea floor down to 10,000' (3,000M) with exceptional accuracy.
• Advanced Noise Filtering: Intelligent filtering eliminates unwanted noise, ensuring only relevant targets are displayed.

Stunning Detail and Clarity

Experience sonar clarity like never before with the CP470's high-resolution imaging. Boasting ten times the resolution of standard sonars, this module provides sharper and more defined fish targets. The TruZoom™ magnification mode allows you to delve deeper into target details without compromising resolution, ensuring you make informed decisions on the water.

Customizable Sonar Experience

Tailor your sonar setup to match your fishing style with the CP470's versatile customization options. Choose from low, medium, and high CHIRP frequency transducers available in standard or wide-beam configurations. The module automatically recognizes connected transducers, adjusting sonar parameters for optimal performance.

Customization Options:

• Transducer Compatibility: Available in low, medium, and high frequencies with standard or wide-beam options.
• Independent Channel Control: Manage each CHIRP channel separately to create full or split-screen sonar views.
• Integration with Raymarine Displays: Seamlessly works with Raymarine's LightHouse II powered multifunction displays for comprehensive control.

Robust and Reliable Design

Built to withstand the harshest offshore conditions, the CP470 features a rugged aluminum enclosure with an IPX6 waterproof rating. This ensures durability and reliability even in rough marine environments.

Technical Specifications:

Feature	Details
Sonar Type	Wide Spectrum CHIRP
Power	1kW / 2kW depending on transducer
Frequency & Channels	Dual independent CHIRP channels from 25 to 250kHz
Depth Range	10,000' (3,000M)
Power Supply	12/24 V DC
Power Consumption	30.6W (Maximum)
Connections	Power | Network (RayNet, 10/100 Mb/s) | Transducer
Compatibility	aSeries | cSeries | eSeries | gS Series
Waterproofing	IPX6 waterproof rugged aluminum enclosure

Enhanced Connectivity and Integration

The CP470 offers seamless integration with your marine electronics. It features automatic transducer identification with Airmar Xducer ID and is compatible with Airmar Wide Beam transducers. The network connection supports RayNet, ensuring high-speed data transmission and reliable performance.

Connectivity Features:

• Airmar Xducer ID: Automatically identifies connected transducers for optimal performance.
• Wide Beam Compatibility: Supports Airmar Wide Beam transducers for broader coverage.
• RayNet Integration: High-speed network connection for seamless data flow.

Download the Brochure

For more detailed information, download the Brochure (PDF).
