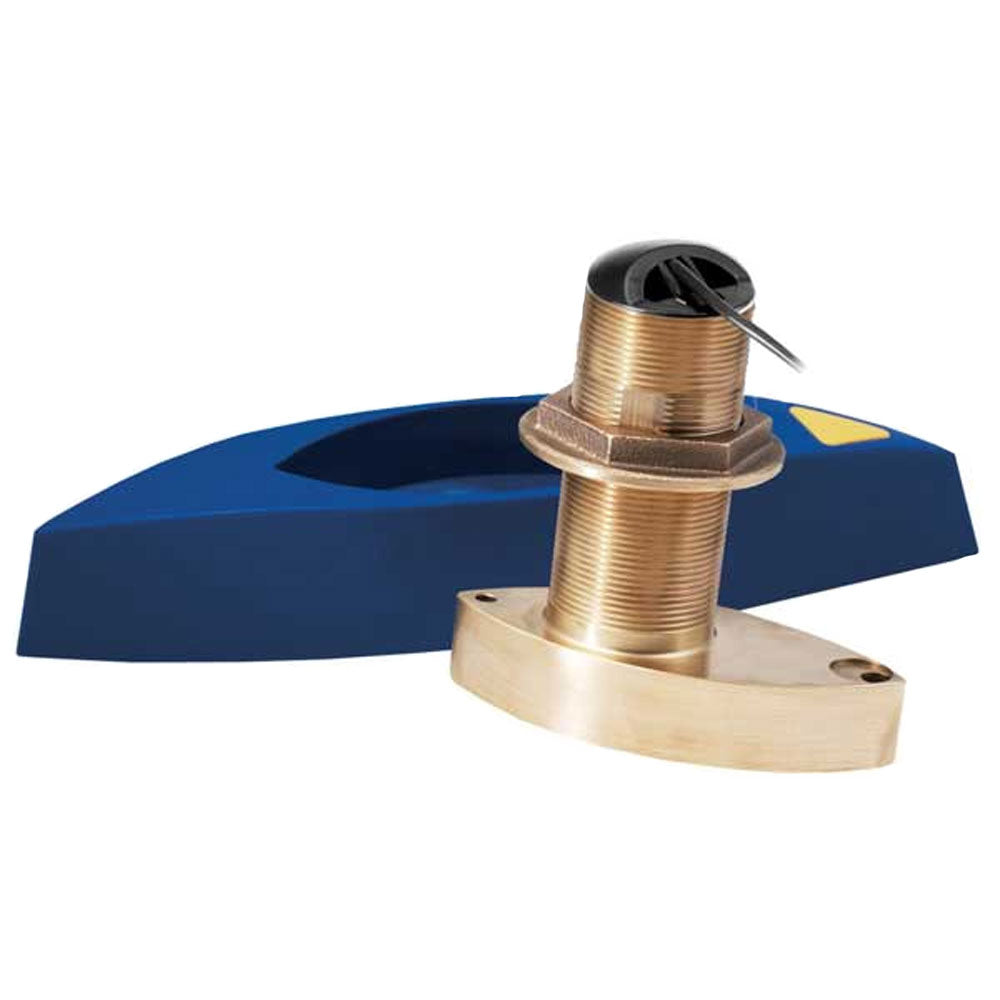

Raymarine B765LH Bronze Thru Hull f/CP450C

The Raymarine B765LH CHIRP Transducer delivers precise depth and temperature readings, engineered specifically for marine enthusiasts seeking reliable sonar performance. Its compact design is perfect for boats 30 feet or longer with fiberglass or wood hulls, ensuring superior functionality without compromising space.

Key Features

• Compatible with Raymarine CP450C ClearPulse CHIRP sonar
• Durable bronze housing with high-performance fairing
• Dual broadband ceramic assemblies for enhanced sensitivity and performance
• Wide frequency spectrum coverage for versatile fishing and navigation
• Fast-response water temperature sensor
• Compact size suitable for smaller boats without sacrificing performance

Technical Specifications

Specification	Details
Mounting Style	Thru-Hull
Chirp Capabilities	Low/High
Temperature Sensor	Yes
Box Dimensions	4"H x 12"W x 16"L
Weight	8.5 lbs
UPC	723193704196
Low-Frequency Range	40 kHz to 75 kHz
Low-Frequency Beam Width	32° to 21°
High-Frequency Range	130 kHz to 210 kHz
High-Frequency Beam Width	15° to 9°
Overall Bandwidth	115 kHz

Performance and Compatibility

The B765LH transducer is designed to cover the popular fishing frequencies of 50 and 200 kHz, along with the entire 115 kHz bandwidth, providing comprehensive sonar capabilities for various marine activities. Its high sensitivity ensures clear and accurate readings in diverse water conditions, making it an ideal choice for both recreational and professional boaters.

Installation

Installing the Raymarine B765LH CHIRP Transducer is straightforward with its thru-hull mounting style. Crafted from durable bronze, it is built to withstand harsh marine environments, ensuring longevity and reliable performance. Suitable for boats with fiberglass or wood hulls, this transducer seamlessly integrates into your vessel’s structure.

Additional Resources

Download the Brochure (PDF)
