Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300

The B60 Tilted Element™ 12° is engineered to deliver precise depth readings and enhanced performance for boats with 8° to 15° deadrise angles. Designed specifically for compatibility with Raymarine models DSM250, DSM300, DSM300G, DSM30, and CP300, this advanced sonar transducer ensures reliable and accurate marine navigation.

Enhanced Sonar Performance

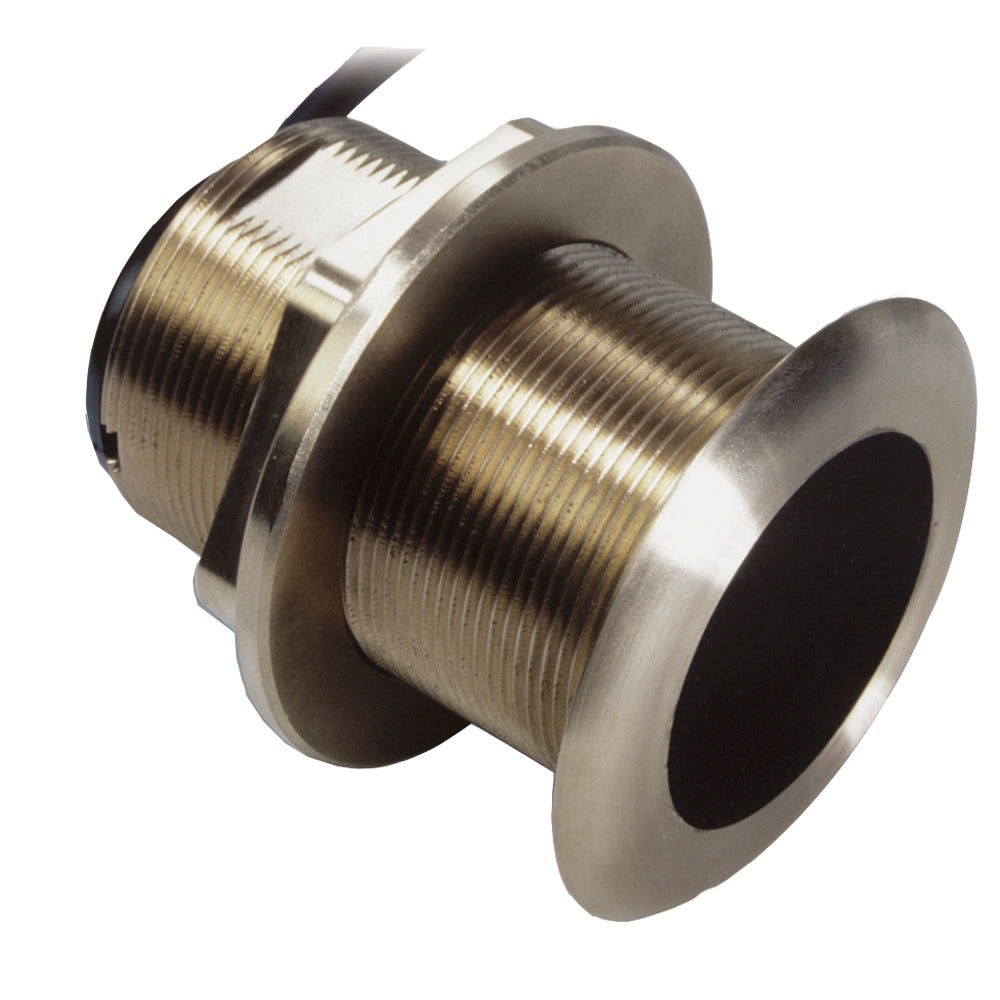

The bronze B60-12° transducer features a vertical beam configuration without a fairing, optimizing your sonar system's efficiency. The ceramic element inside the housing is precisely tilted at 12°, providing built-in deadrise compensation. This design innovation results in superior echo returns, enabling more accurate depth measurements and improving your overall fishing and navigation experience.

Streamlined Design for Minimal Drag

With a nearly flush housing that extends only 5 mm (3/16") outside the hull, the B60 Tilted Element™ 12° minimizes hydrodynamic drag. This sleek profile ensures that your vessel maintains optimal speed and fuel efficiency, while also reducing noise interference for clearer sonar signals.

Key Features

• Depth and Temperature Sensing: Provides accurate depth measurements and monitors water temperature.
• Frequency Range: Operates at 50/200 kHz, offering versatile performance for various marine conditions.
• Power Output: 600W RMS ensures strong and reliable sonar signals.
• Performance Level: Mid-performance transducer suitable for a wide range of boating applications.
• Material: Constructed from durable bronze for longevity and corrosion resistance.

Specifications

Feature	Details
Temperature Sensing	Yes
Speed Included	No
Mounting Style	Thru-Hull
Imaging	Standard
Chirp Technology	No
Cable Length	33 feet
Box Dimensions	4" H x 8" W x 11" L
Weight	5 lbs
UPC	723193660867

Easy Installation

The B60 Tilted Element™ 12° is designed for seamless installation through the hull of your vessel. Its compatibility with multiple Raymarine models ensures that you can integrate this transducer into your existing marine electronics setup without hassle.

Additional Resources

• Owner's Manual (PDF)
• Brochure (PDF)
