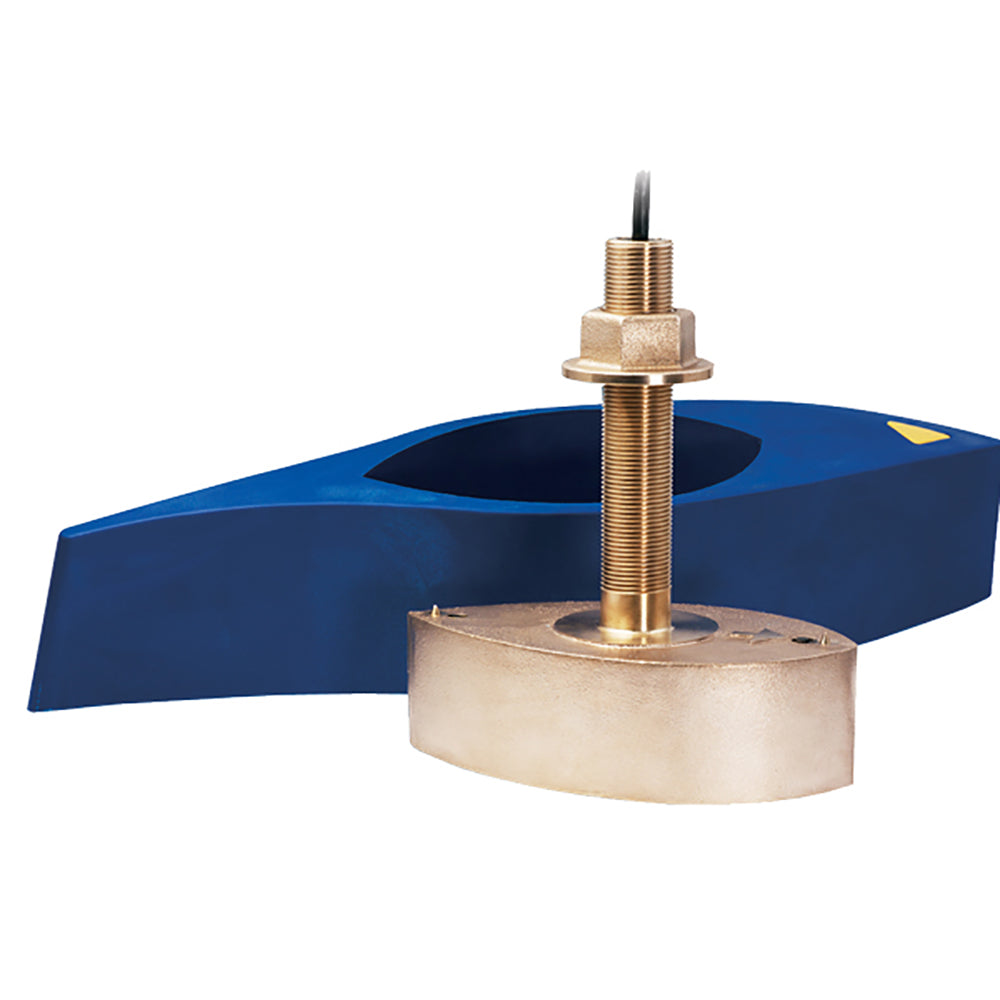

Raymarine B265LM Bronze CHIRP Thru-Hull Depth Temp

The B265LM Bronze CHIRP Thru-Hull Depth & Temperature sensor is an advanced marine instrument engineered for precise depth and temperature monitoring. Built with robust bronze materials, this sensor ensures long-lasting performance and corrosion resistance, making it ideal for both freshwater and saltwater applications. Its CHIRP (Compressed High-Intensity Radiated Pulse) technology delivers detailed and accurate sonar imaging, enhancing your boating experience by providing real-time insights into your underwater environment.

Key Features

• Depth and Temperature Monitoring: Accurately measures water depth and temperature, essential for safe and efficient navigation.
• Thru-Hull Installation: Designed for secure and seamless integration through your boat's hull.
• Hull Deadrise Compatibility: Suitable for hull deadrise angles ranging from 0º to 20º, accommodating various boat designs.
• CP450C Plug on Cable: Features a CP450C plug for easy and reliable connectivity to your marine electronics.
• Durable Bronze Construction: Made from high-quality bronze, offering superior resistance to corrosion and marine environments.
• Operating Frequencies: Low frequency range of 42-65 kHz and medium frequency range of 85-135 kHz, providing versatile sonar capabilities.
• Power Output: 1kW power ensures strong signal strength for accurate readings.
• Adjustable Beamwidth: Low setting offers a 25° to 16° beamwidth, while the medium setting provides a 16° to 11° beamwidth for customized sonar coverage.
• Hull Type Compatibility: Compatible with both fiberglass and wood hulls, offering flexibility in installation.

Technical Specifications

Specification	Details
Temperature Measurement	Yes
Speed Measurement Included	No
Imaging Capability	Standard
CHIRP Capability	Low/Medium
Mounting Style	Thru-Hull
Box Dimensions	7" H x 19" W x 26" L
Weight	24 lbs
UPC	723193704172
