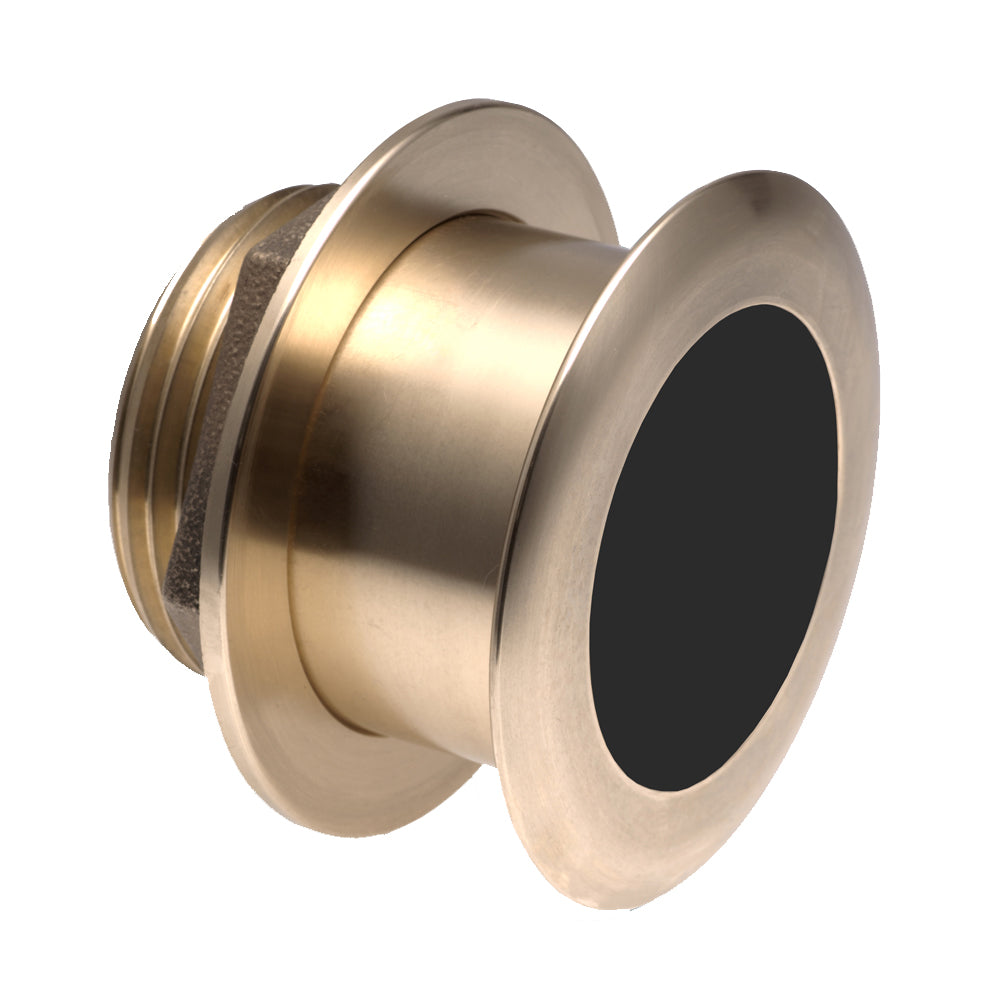

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW

The B175H-W 1KW Bronze Thru Hull 20° Tilted Element is a high-performance transducer designed for avid boaters and marine enthusiasts. Engineered with durability and precision in mind, this transducer delivers reliable depth and temperature readings, ensuring an enhanced fishing and navigation experience.

Key Features

• Power Output: 1kW RMS for robust performance
• Frequency Range: 150-250 KHz for clear and accurate sonar imaging
• Max Depth Capability: Up to 800 feet, ideal for deep-sea fishing
• Material Construction: Durable urethane housing for long-lasting use
• Deadrise Support: Designed for 16-24° deadrise hulls
• Approved Hull Materials: Compatible with fiberglass and wood hulls
• Cable Length: 6 feet (2 meters) included pigtail for flexible installation
• Mounting Style: Thru-hull installation for secure and stable positioning
• Temperature Monitoring: Integrated temperature sensor for comprehensive data
• Chirp Technology: High Wide chirp for enhanced sonar performance

Specifications

Attribute	Details
Power (RMS)	1kW
Frequency (KHz)	150-250
Max Depth (ft)	800
Material	Urethane
Supported Deadrise	16-24° Deadrise
Approved Hull Material	Fiberglass / Wood
Cable Length	6ft / 2m
Mounting Style	Thru-Hull
Imagining	Standard
Chirp	High Wide
Box Dimensions	9"H x 11"W x 12"L
Weight	9.8 lbs
UPC	723193796276

Installation

The B175H-W transducer is designed for thru-hull installation, ensuring a secure and stable fit on compatible hulls. The included 6-foot (2-meter) pigtail cable provides flexibility during installation, while a 10-meter extension cable (part numbers A80327 and A80328 for single B75/B175 operation) is required for a complete transducer setup. Ensure your hull material is either fiberglass or wood for optimal compatibility.

Compatibility

This transducer is approved for use with fiberglass and wood hulls, supporting deadrise angles between 16° and 24°. Its versatile design makes it suitable for a wide range of marine vessels, from small fishing boats to larger recreational watercraft.

Additional Information

All wide beam products, including the B175H-W, come equipped with a 2-meter pigtail off the transducer. For a complete installation, a transducer extension cable is necessary. Refer to part numbers A80327 and A80328 for the appropriate single B75/B175 operation cables. Enhance your boating experience with the B175H-W Bronze Thru Hull Transducer, combining durability, performance, and ease of installation to meet the demands of serious mariners.
