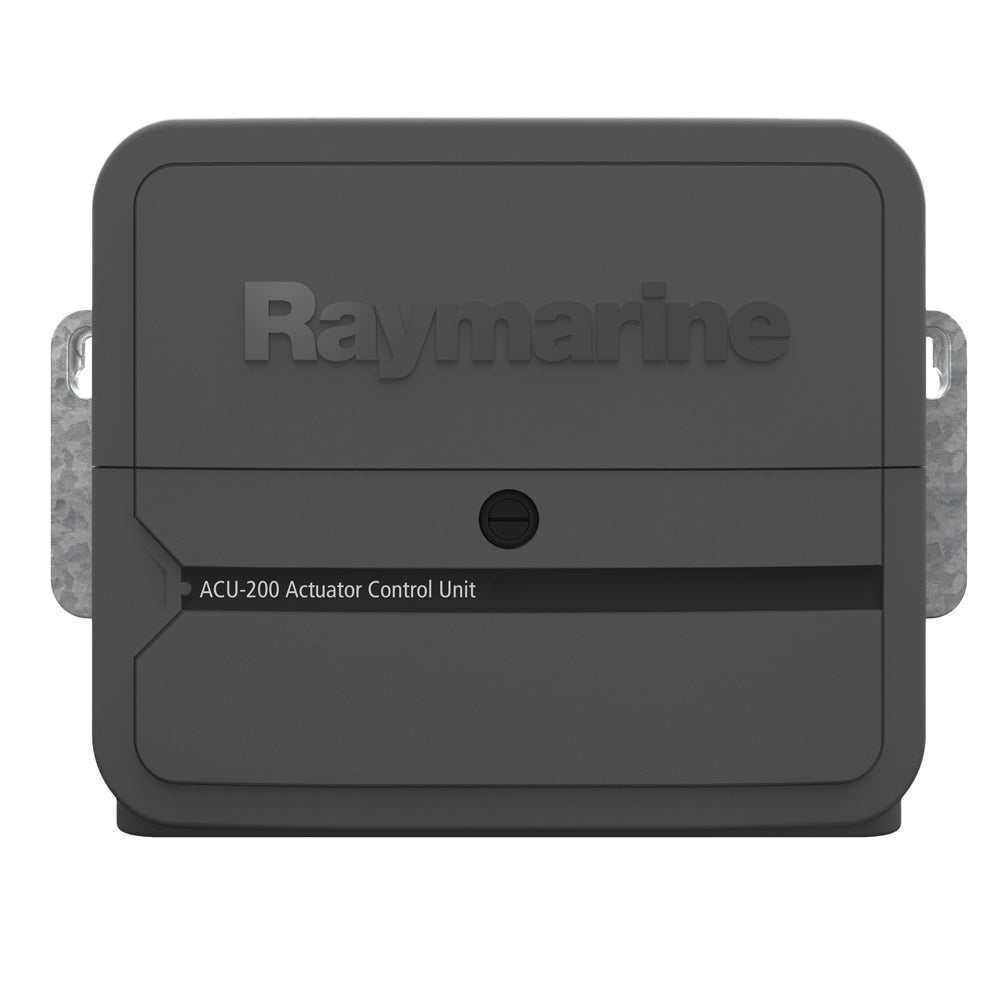

Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives
Raymarine ACU-200 Acuator Control Unit - Use Type 1 Hydraulic, Linear & Rotary Mechanical Drives is backordered and will ship as soon as it is back in stock.
Product Description
Product Description
The Autopilot Control Unit (ACU) is an essential component for seamless and reliable autopilot operations on your vessel. Designed for durability and performance, the ACU not only provides consistent drive power to your autopilot system but also supplies power to the SeaTalkng bus, ensuring efficient integration with your marine electronics. Whether you have a 12V or 24V steering system, our ACU offers the flexibility and power needed to keep your boat on course with ease.
Key Features
| Feature | Description |
|---|---|
| Drive Current Output | Maximum continuous 15 Amps at supply voltage |
| Drive Clutch Output | Up to 2.0 A continuous, selectable between 12V / 24V |
| Nominal Supply Voltage | 12 V or 24 V |
| Operating Voltage Range | 10.8V to 31.2V DC |
| Power Consumption (Standby) - Main Power Supply | 300 mA (12/24V) |
| Power Consumption (Standby) - SeaTalkng Power Supply | 20 mA (12V) |
| SeaTalkng LEN (Load Equivalency Number) | 1 |
| SeaTalkng Power Out | 3 Amp at 12V (fuse protected at 3 Amp) |
Included Connections
- M81105 Rotary Rudder Reference
- Sleep switch
- Power connection
- Drive motor connection
- Drive clutch connection
- Ground connection
Installation Environment
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
- Storage Temperature: -30°C to +70°C (-22°F to +158°F)
- Relative Humidity: Up to 93%
Durability and Dimensions
| Specification | Details |
|---|---|
| Waterproof Rating | Drip resistant |
| Dimensions (W x H x D) | 285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in) |
| Weight | 2.2kg (4.84 lbs) |
Compliance and Certification
- Europe: 2004/108/EC
- Australia and New Zealand: C-Tick, Compliance Level 2
Product Specifications
- Type: Parts
- Box Dimensions: 8" H x 12" W x 17" L
- Weight: 6.8 lbs
- UPC: 723193768914
