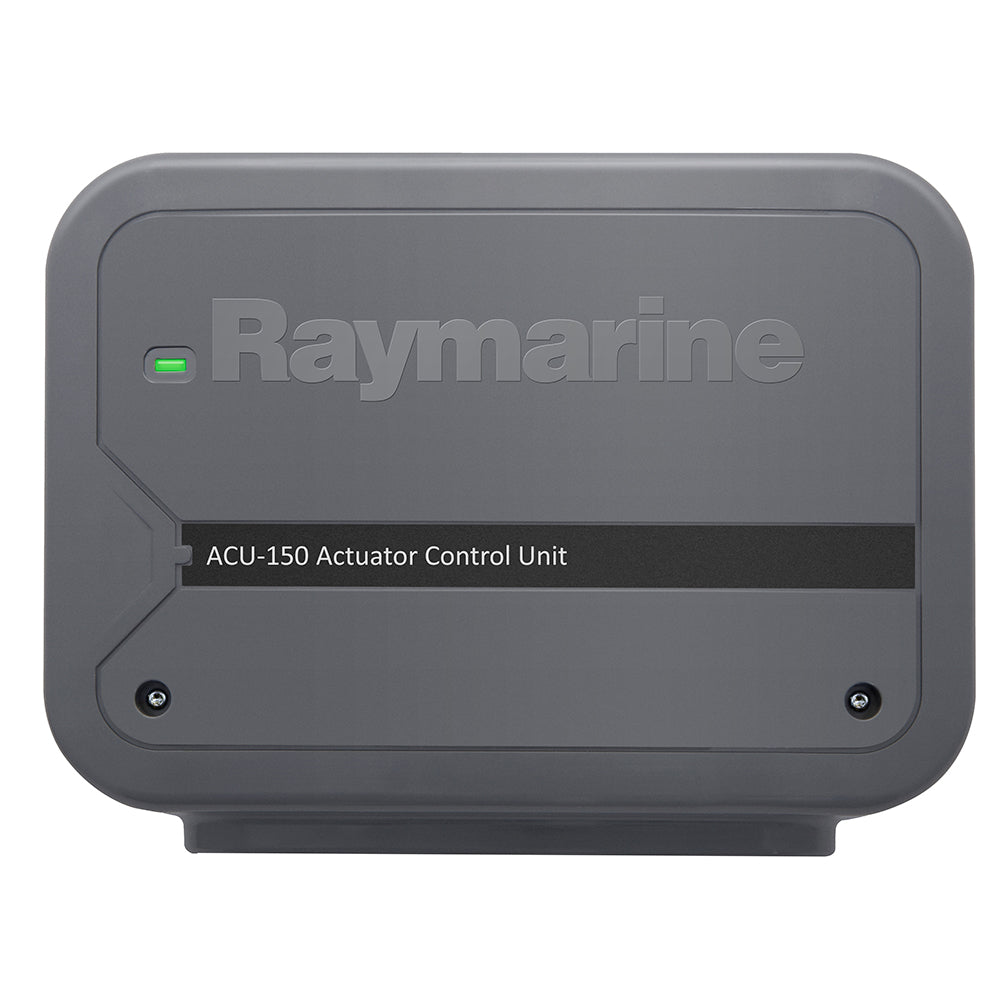

Raymarine ACU-150 Actuator Control Unit

The Raymarine ACU-150 Actuator Control Unit is an essential component of the Evolution® Autopilot system, delivering reliable power and precise control to your Raymarine Type-1 Hydraulic Drive Unit (M81120). Designed exclusively for 12-volt DC systems, the ACU-150 ensures seamless integration and optimal performance for your marine navigation needs.

Key Features

• Power and Control: Provides consistent power supply and control signals to the Type-1 Hydraulic Drive Unit, ensuring smooth and accurate autopilot operations.
• SeaTalk®ng Connectivity: Integrates effortlessly with the SeaTalk®ng network, enabling efficient communication with other Raymarine peripherals for a unified navigation system.
• Rudder Reference Compatibility: Offers connections for an optional Rudder Reference Unit (sold separately), enhancing autopilot precision and responsiveness.
• 12-Volt DC Operation: Specifically designed to operate on 12-volt DC systems, making it ideal for a wide range of marine vessels.

System Requirements

To establish a complete ACU-150 autopilot system, the following components are required:

• Type-1 Hydraulic Drive Unit (M81120)
• Evolution EV1 Sensor Core (E70096)
• Evolution Cable Kit (R70160)
• Autopilot Control Head:
  • p70s (E70328)
  • p70Rs (E70329)

Specifications

Type	Parts
Box Dimensions	4"H x 8"W x 12"L
Weight	2.15 lbs
UPC	723193816639
Voltage	12-Volt DC

Why Choose the Raymarine ACU-150?

The ACU-150 Actuator Control Unit is crafted for boating enthusiasts who demand reliability and precision in their autopilot systems. Its robust build and advanced connectivity options make it a standout choice for enhancing your vessel's navigation capabilities. Whether you're upgrading an existing system or installing a new one, the ACU-150 ensures optimal performance and seamless integration with other Raymarine products.
