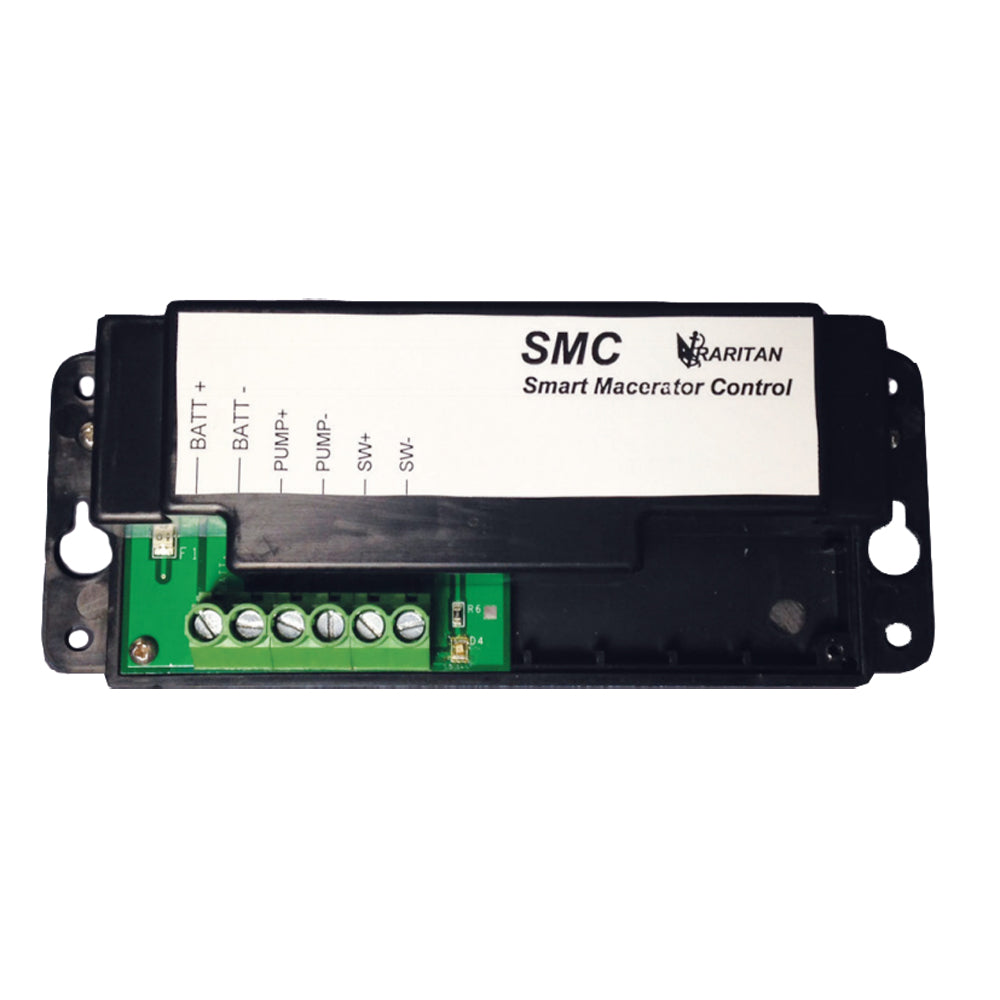

Raritan Smart Macerator Control - 12v

The Smart Macerator Control - 12V is an essential component for marine and boating applications, ensuring your vessel's macerator pump operates efficiently and safely. Designed to monitor motor and pump performance, it prevents dry runs and overloads, enhancing the longevity and reliability of your marine wastewater system.

Key Features

• Automatic Shutdown: If the pump fails to prime within 7 seconds or runs dry for more than 5 seconds, the control unit will automatically shut down the pump to prevent damage.
• Easy Reset: The Smart Macerator Control can be easily reset by toggling the switch off and on, eliminating the need to disconnect the power source entirely.
• Regular Maintenance Cycles: When continuously powered, the control unit activates the macerator pump for a few milliseconds every seven days. This cycle prevents the impeller from binding, ensuring smooth operation.
• Overcurrent Protection: If the pump draws more than 20 amps, the control system will promptly shut down the pump to protect against electrical overloads.

Specifications

Attribute	Details
Voltage	12V
Type	Miscellaneous
Box Dimensions	2" H x 6" W x 8" L
Weight	0.5 lbs
UPC	085462035616

Installation and Usage

Installing the Smart Macerator Control is straightforward, making it an ideal upgrade for your boat's wastewater system. Ensure that the control unit is securely mounted and connected to both the pump and power source according to the provided instructions. Regularly check the system to maintain optimal performance and address any issues promptly.

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

For detailed information and guidelines, please refer to the brochure:

Download Brochure (PDF)
