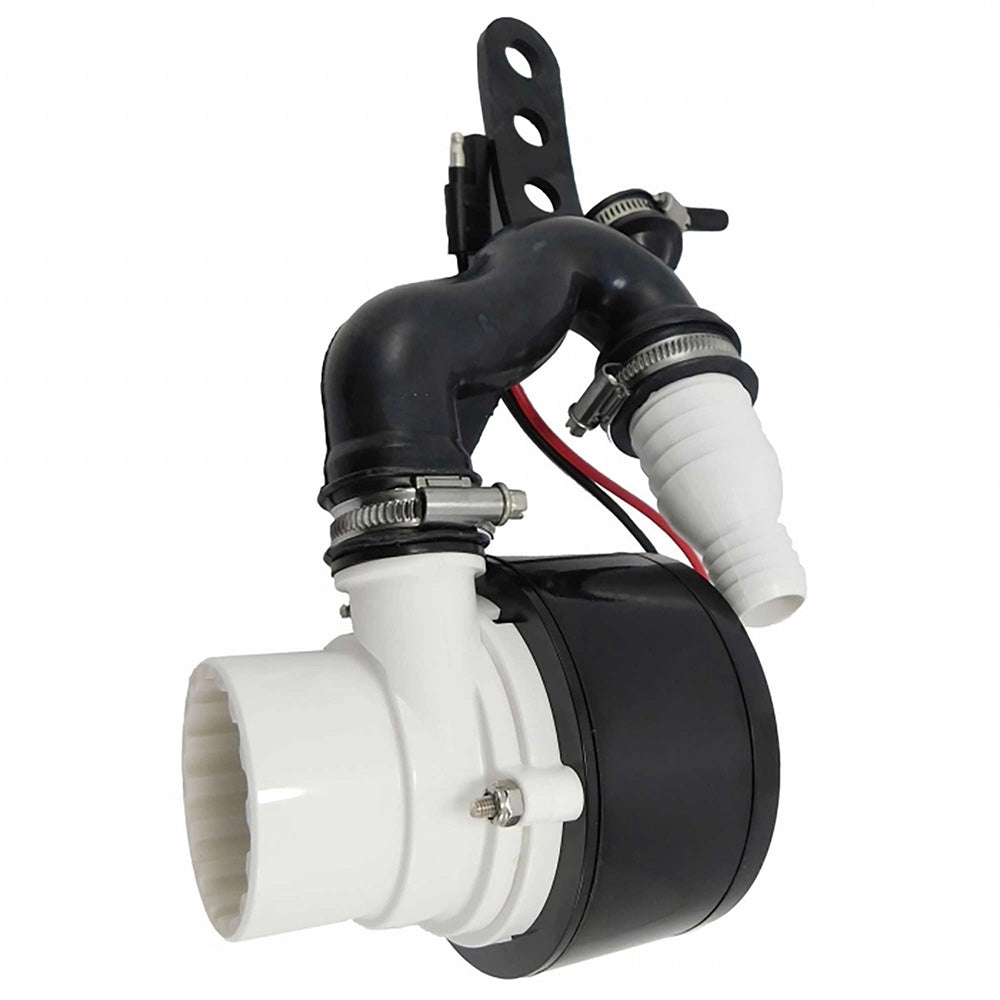

Raritan Marine Elegance Discharge Pump Assembly - 24V

Ensure reliable and efficient wastewater management on your vessel with Raritan’s Marine Elegance Discharge Pump Assembly. Designed specifically for marine applications, this 24V discharge pump delivers durable performance and seamless operation, keeping your boat’s plumbing system running smoothly.

Features

• 24V Discharge Motor: Provides powerful and consistent performance tailored for marine environments.
• Stainless Steel Components: Enhanced corrosion resistance for longevity in saltwater conditions.
• Comprehensive Assembly: Includes all necessary parts for easy installation and maintenance.
• Efficient Maceration: High-quality macerator blade and impeller ensure effective waste breakdown.

What’s Included

Part Number	Description	Quantity
M23A	#10 Lockwasher SS	5
1108A	10-32 SS Nut	1
161123	Macerator Blade	1
31-102	Motor Shaft Seal	1
221110	Discharge Pump Seal Plate	1
221105	O-Ring	1
161115	Impeller	1
221115	Discharge Pump Macerator Housing	1
31-114	Lock Nut 10-32 W/Nylon	3
221012 / 221024	Discharge Motor 12V or 24V	1
221141W	Discharge Hose	1
221135W	Joker Valve (Includes #24)	2
221145	Discharge Adapter Fitting	1
221146	Joker Valve Insert	1
221160	Discharge Hose Clamp (Small)	1
221165	Discharge Hose Clamp (Large)	1
VLVE	Vent Valve Assembly	1
FC001	Vent Valve Hose Clamp	1

Technical Specifications

• Voltage: 24V (Alternative option available in 12V)
• Material: Stainless Steel for enhanced durability
• Seals: Includes Motor Shaft Seal and Discharge Pump Seal Plate
• Macerator: Equipped with a high-performance blade and impeller
• Hose Clamps: Includes both small and large sizes for versatile installation

Installation Instructions

The Marine Elegance Discharge Pump Assembly is designed for straightforward installation on a variety of marine vessels. Ensure all included hardware is used correctly and refer to the provided installation manual for detailed steps. Proper installation is crucial for optimal performance and longevity of your pump system.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
