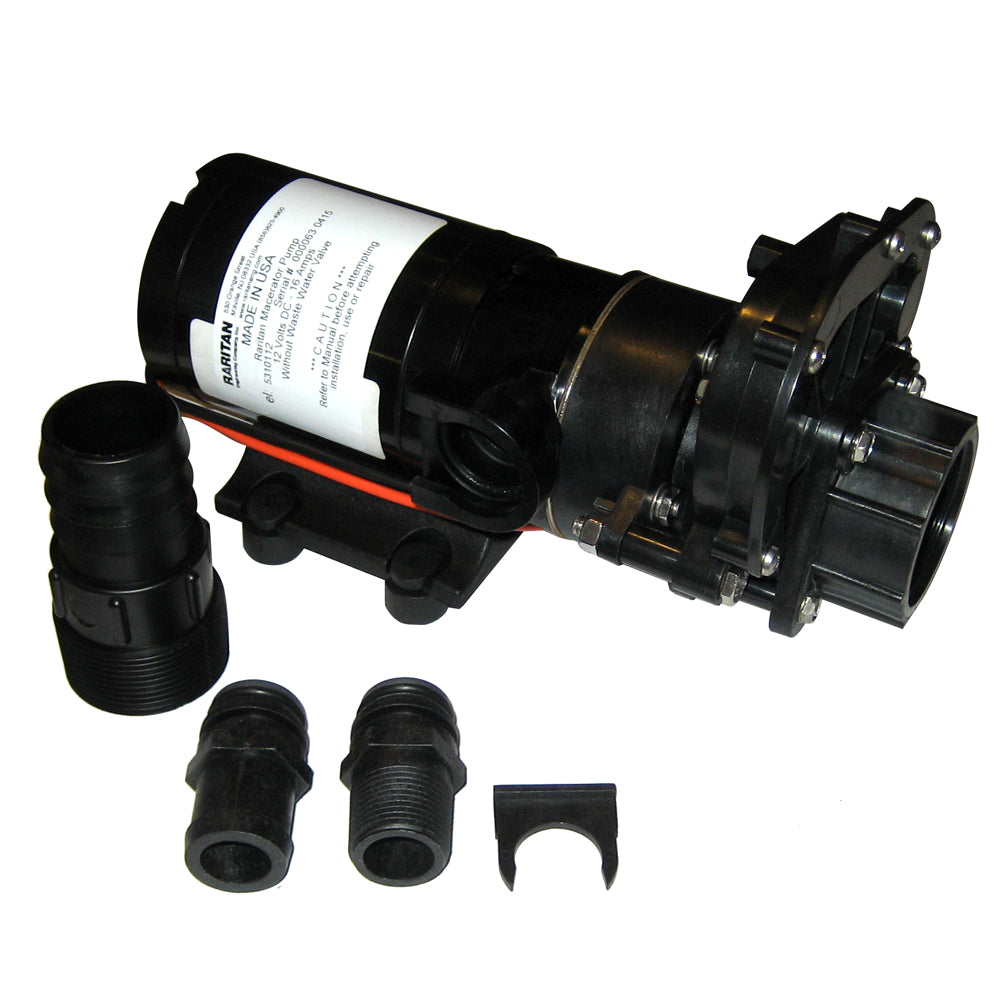

Raritan Macerator Pump - 12v w/Waste Valve

Macerator Pump - 12V with Barb Adapter is an essential component for any marine vessel, ensuring efficient and reliable management of waste and other liquids. Designed specifically for the demanding environment of boating, this pump offers superior performance and durability to keep your boat’s systems running smoothly.

Product Overview

Macerator pumps play a crucial role in various onboard tasks, most notably in emptying holding tanks and fish boxes. Raritan has engineered this macerator pump with two primary objectives: enhancing run-dry time and preventing pump burnout. Understanding that boaters may occasionally forget to turn off the pump, leading to dry running, Raritan has developed a robust solution to extend the pump’s lifespan and ensure dependable operation.

Featuring a sophisticated plastic housing and impeller combination, this pump resists burnout longer than any other macerator available on the market. Additionally, the Smart Macerator Control integrates advanced features to protect your pump and maintain its efficiency, even during extended periods of inactivity.

Smart Macerator Control

The Smart Macerator Control is a standout feature that enhances the pump’s reliability:

• Automatic Shut-Off: Detects when the pump is running dry and shuts it off immediately, preventing damage.
• Weekly Jogging: Periodically jogs the impeller to prevent deformation, ensuring the pump is ready to operate when needed.

Key Features

• Corrosion-Resistant Construction: All stainless steel bolts are used to avoid corrosion problems, ensuring longevity in marine environments.
• Leak Prevention: Equipped with a spring-loaded Viton shaft seal to prevent premature leaks.
• Enhanced Dry Running: Proprietary rubber impeller compound allows longer dry running time, protecting the pump from damage.

Specifications

Component	Details
Pump	Self-priming flexible rubber impeller with stainless steel wearplate
Impeller	Raritan Proprietary Nitrile compound
Blade	Stainless steel double cut
Seal	Viton Lip with 316 SS spring and case
Motor	Permanent magnet type, fully enclosed, stainless steel shaft, thermal protection for overload, powder-coated housing with sealed ball bearing
Ports	Inlet: 1-1/2" hose barb & 1-1/2" NPT Male Outlet: 3/4" MNPT
Lead Wires	14 GA, Red and black
Weight	5 lbs.
Approvals	Ignition protected, ISO 8846
Volts	12V
Type	Waste Pumps
Box Dimensions	7"H x 7"W x 11"L
Weight	5.8 lbs
UPC	085462035746

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Installation Guides

Ensure proper installation by referring to the provided guides:

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)

Product Video
