Raritan Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation

The Fresh Head Manual Marine Toilet offers reliable and environmentally-friendly sanitation for your boat or RV. Engineered for right-hand operation, this marine-sized toilet utilizes pressurized fresh water to deliver an odor-free flush, ensuring a clean and efficient system.

Product Overview

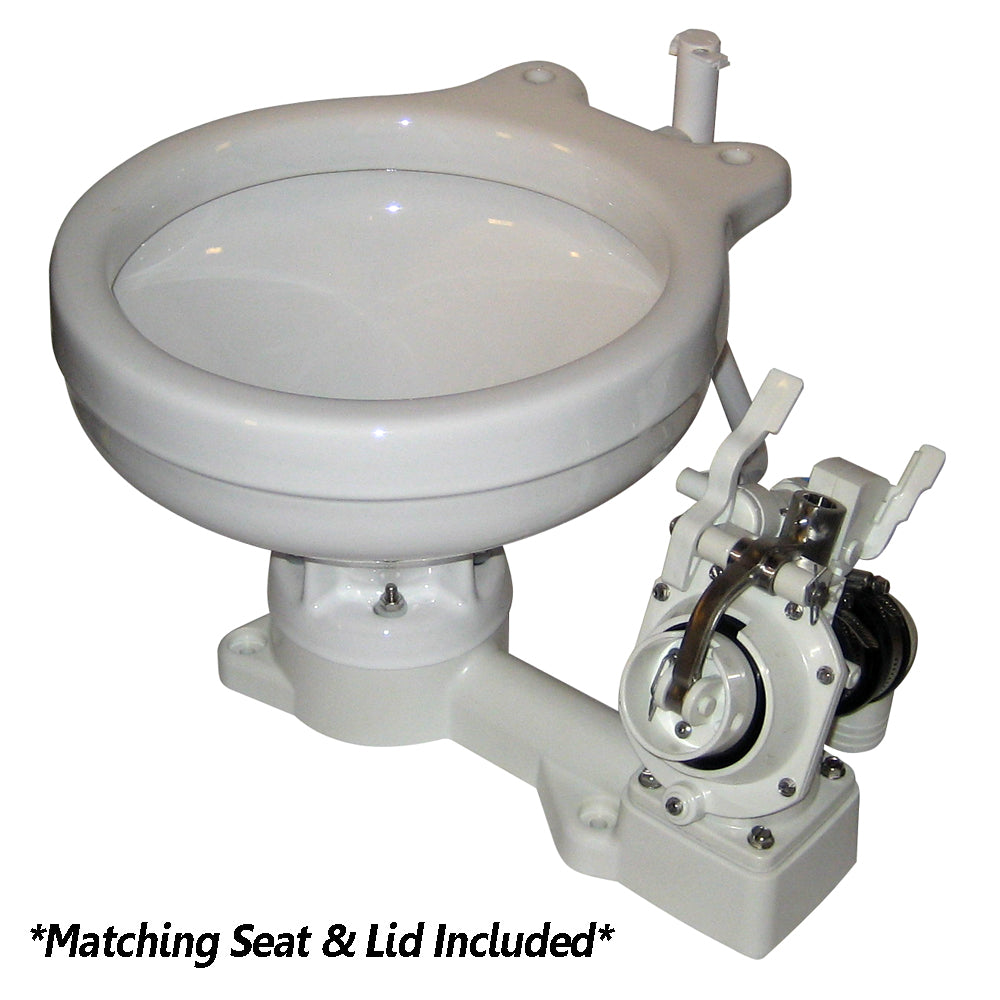

The Fresh Head is a manual marine toilet designed specifically for marine environments. By using pressurized fresh water, it prevents the decay of sealife in the bowl rim, eliminating unpleasant odors. The toilet features a diaphragm discharge pump with a telescopic handle, making flushing effortless. Additionally, the pump can be locked to prevent wastewater backflow, ensuring the integrity of your sanitation system.

Key Features

• First manual marine toilet utilizing pressurized fresh water, eliminating calcium deposits in discharge hose
• Direct replacement footprint for competitive models, simplifying installation
• No thru-hulls required when installed with a holding tank, enhancing installation flexibility
• Low water usage, promoting environmental responsibility
• Available with left-hand side pump option
• PHII toilets can be retrofitted by purchasing the retro-fit pump
• Lock feature prevents potential backflow and possible flooding

Advanced Flushing Mechanism

Equipped with a diaphragm type pump and telescopic handle, the Fresh Head ensures easy and customizable flushing. Users can control water usage per flush, optimizing water conservation. A dedicated lever allows pre-wetting the bowl, enhancing flush performance for solid waste.

Dependable by Choice

Raritan’s Fresh Head is trusted by powerboat, sailboat, houseboat, and RV owners worldwide due to its reliability, ease of installation, and minimal maintenance. The comprehensive product line includes household-style toilets, marine toilets, sanitation devices and systems, along with cleaning products, ice makers, water heaters, and rudder angle indicators.

Specifications

Feature	Details
Rinse Water For Inlet	1/2" FPT
Maximum Pressure	150 PSI (10 bar)
Minimum Flow Rate	3 GPM (11.3 L/min) @ 10 PSI (0.7 bar)
Discharge Hose Size	1-1/2"
Maximum Height	15 ft (4.5 m)
Water Consumption Per Use	1 pint (.47 L) liquid, 3.4 gallons (2.8 L) solid
Rinse Water	Fresh
Outlet Size	1-1/2"
Inlet Size	1/2"
Color	White
Type	Toilet
Size	Compact
Box Dimensions	16"H x 23"W x 24"L
Weight	31 lbs
UPC	085462035531

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Downloads

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
