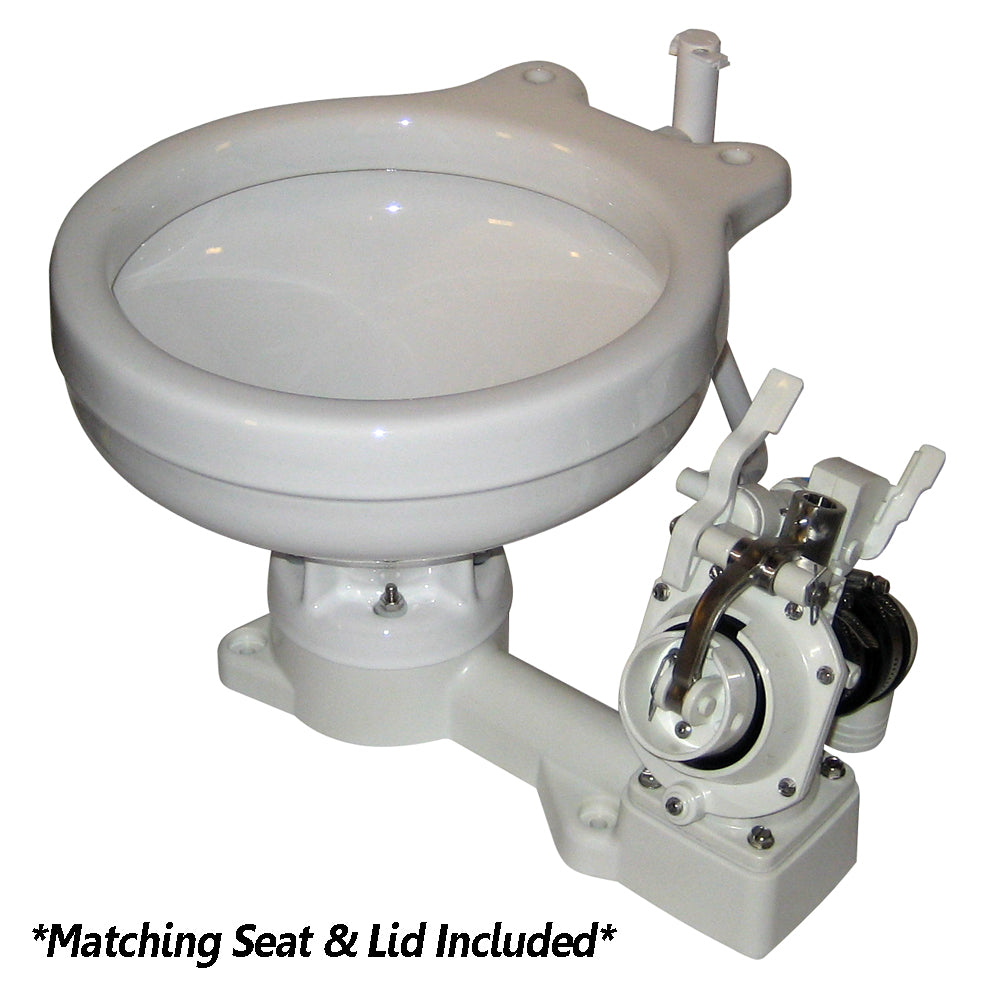

Raritan Fresh Head - Fresh Water Flush - Manual - Household Style - Right Hand Operation

The Fresh Head Fresh Water Flush Manual Marine Toilet offers boat owners a reliable and eco-friendly sanitation solution. Designed for household-style use with right-hand operation, this toilet ensures an odor-free experience by utilizing pressurized fresh water for flushing, preventing the buildup of sealife and calcium deposits.

Key Features

• First manual marine toilet to use pressurized fresh water, eliminating calcium deposits in the discharge hose
• Direct replacement footprint for easy installation on existing setups
• No thru-hulls required when installed with a holding tank, simplifying the installation process
• Low water consumption, conserving precious freshwater resources
• Available with a left-hand side pump option to suit different vessel configurations
• Compatible with PHII toilets via a simple retro-fit pump purchase
• Lock feature prevents potential backflow and flooding when not in use

Easy Operation

The Fresh Head is equipped with a diaphragm pump and a telescopic handle, making flushing effortless. Users can control the amount of water per flush, and a lever allows for pre-wetting the bowl to ensure a more effective flush every time. The built-in freshwater backflow prevention includes a vacuum break, while the lock-out feature secures the discharge to prevent unwanted backflow.

Specifications

Feature	Details
Rinse Water Inlet	1/2" FPT
Maximum Pressure	150 PSI (10 bar)
Minimum Flow Rate	3 GPM (11.3 L/min) @ 10 PSI (0.7 bar)
Discharge Hose	1-1/2" Hose
Maximum Discharge Height	15 ft (4.5 m)
Water Consumption Per Use	1 pint (.47 L) for liquid, 3.4 gallons (2.8 L) for solid
Outlet Size	1-1/2"
Inlet Size	1/2"
Gallons Per Minute	3 GPM
Color	White
Size	Household Size
Type	Toilet
Box Dimensions	14"H x 23"W x 24"L
Weight	34.6 lbs
UPC	085462035548

Why Choose Raritan?

Raritan products are trusted by powerboat, sailboat, houseboat, and RV owners worldwide for their reliability and environmental responsibility. Known for their simplicity in installation, operation, and maintenance, Raritan offers a comprehensive product line including household-style toilets, marine sanitation devices, cleaning products, icemakers, water heaters, and rudder angle indicators.

Compliance and Safety

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
