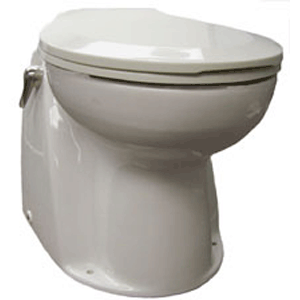

Raritan Atlantes Freedom w/Vortex-Vac - Household Style - White - Wall Switch - Integral Pump - 12V

The Atlantes Freedom® with Vortex-Vac is a cutting-edge marine toilet designed to provide reliable and efficient performance on any vessel. Its innovative design integrates all components within the bowl, offering a user-friendly and aesthetically pleasing solution for boat owners seeking both functionality and elegance.

Innovative Design and Functionality

The Atlantes Freedom® was pioneering in its approach to marine toilet design by incorporating all essential components directly within the bowl. This streamlined design not only enhances the toilet's appearance but also simplifies maintenance and cleaning. A standout feature is the metal handle mounted on the side of the bowl, making the marine bathroom experience less intimidating for those unfamiliar with boat toilets. This intuitive handle design ensures that flushing is as simple as pushing a button, providing ease of use for all guests.

Vortex-Vac Technology

Equipped with the advanced Vortex-Vac technology, the Atlantes Freedom® efficiently removes waste using a vacuum action created by an integral 12V pump. Unlike traditional vacuum toilets that rely on a remote vacuum generator pump running for extended periods, the Vortex-Vac system operates with lower power consumption and greater effectiveness. The timed flush cycle optimizes water usage by sequentially bringing in water, discharging waste, and refilling the bowl, ensuring minimal water usage while maintaining high performance.

Standard Features

• One-piece china bowl for durability and easy cleaning
• Anti-clog "Power Shred" discharge system to prevent blockages
• Household-style design for a familiar and comfortable user experience
• Smart Toilet Control (STC) with an integrated water saver feature
• Remote intake pump for flexible installation options
• Powerful bronze cutting blades designed to shred most objects effectively

Benefits of the Atlantes Freedom®

• Vortex-Vac Technology: Ensures efficient waste removal with lower power consumption.
• Simple and Flexible Installation: Easily installs above or below the waterline on any vessel.
• Low Power Consumption: Designed to be energy-efficient, ideal for marine applications.
• Three Modes of Operation: Choose between Fill, Dry Flush, or Fill and Flush to suit your needs.
• Clog-Free Performance: Maintains freedom from clogs with a robust discharge system, suitable for both marine and commercial use.
• Easy to Clean and Maintain: Smooth, minimal lines make cleaning quick and hassle-free.
• Durable Diaphragm Intake Pump: Can run dry without damage, enhancing reliability.
• Advanced Control System: Features microprocessor control and a solid-state circuit breaker, eliminating the need for fuses or relays.

Raritan Programmable Smart Toilet Control

The Raritan Smart Toilet Control offers fully programmable flush options, allowing users to customize their toilet experience with ease. Adjust flush settings directly on the control panel without the need to remove any components.

• Normal Flush: Initiates a timed flush sequence that ensures maximum bowl rinse and refill, leaving water in the bowl for optimal hygiene.
• Water Saver: Uses half the water of a normal flush while still ensuring effective waste removal and bowl refill.
• Water Only: Adds water to the bowl without discharging contents, perfect for pre-wetting the bowl or controlling water levels to conserve usage.
• Empty Only: Evacuates the bowl contents without using water. The discharge pump operates only while the button is pressed, providing precise control.

Specifications

Attribute	Details
Color	White
Gallons Per Minute	3 GPM
Inlet Size	3/4"
Operation Method	Electric
Outlet Size	1-1/2"
Rinse Water	RAW
Suction Lift	4' ft.
Voltage	12V
Type	Toilet
Size	Household Size
Box Dimensions	19"H x 19"W x 26"L
Weight	60 lbs
UPC	085462029936

Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)
