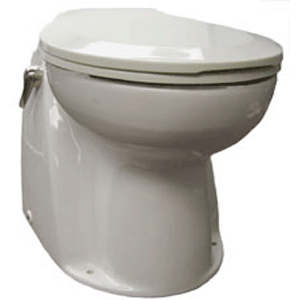

Raritan Atlantes Freedom w/ Vortex-Vac - Household Style - White - Freshwater Solenoid - Smart Toilet Control - 12v

The Atlantes Freedom™ is a state-of-the-art marine toilet designed to offer both functionality and aesthetic appeal for your boat’s bathroom. Combining innovative Vortex-Vac technology with a user-friendly metal handle, the Atlantes Freedom™ ensures a seamless and efficient bathroom experience, whether you’re navigating the high seas or docked at a marina.

Key Features

• One-piece china bowl for durability and easy cleaning
• Anti-clog "Power Shred" discharge system to handle waste effectively
• Household-style design for a familiar and comfortable user experience
• Smart Toilet Control (STC) with a water-saving feature to optimize usage
• Freshwater solenoid for reliable water flow management
• Powerful bronze cutting blades designed to shred most objects, preventing clogs

Advanced Vortex-Vac Technology

The Atlantes Freedom™ utilizes the same cutting-edge Vortex-Vac technology found in the Marine Elegance series, but with a more substantial bowl footprint. This technology employs a vacuum action generated by the onboard pump, efficiently moving waste from the bowl without relying on a remote vacuum generator. This results in:

• Reduced water usage compared to traditional vacuum toilets
• Elimination of the need for a continuously running vacuum generator pump
• Effective waste removal through a timed flush cycle that optimizes water usage

Benefits

• Efficient Vortex-Vac technology ensures quick and reliable waste removal
• Simple and flexible installation adaptable to various marine environments
• Low power consumption, ideal for marine applications
• Three modes of operation: Fill, Dry Flush, or Fill and Flush to suit different needs
• Resistant to clogs with a marine-size bowl, suitable for both residential and commercial vessels
• Easy to clean and maintain with minimal design elements
• Diaphragm intake pump can operate without water, enhancing reliability
• Microprocessor control with a solid-state circuit breaker for enhanced performance
• Free from fuses or relays inside the unit, reducing maintenance
• Versatile installation options above or below the waterline to fit any vessel

Raritan Programmable Smart Toilet Control

The Raritan Smart Toilet Control offers a fully programmable flush system, giving users complete control over their toilet’s operation. This advanced control system allows you to:

• Normal Flush: Initiates a timed flush sequence that includes intake and discharge modes, ensuring thorough bowl rinsing and refilling.
• Water Saver: Utilizes half the water of a normal flush while still ensuring the bowl refills properly.
• Water Only: Adds additional water to the bowl without discharging waste, ideal for pre-use wetting or maintaining bowl water levels.
• Empty Only: Evacuates the bowl without using water, allowing for efficient waste removal on demand.

Specifications

Specification	Details
Color	White
Gallons Per Minute	3 GPM
Inlet Size	1/2"
Operation Method	Electric
Outlet Size	1"
Rinse Water	Fresh
Suction Lift	4 feet
Volts	12V
Type	Toilet
Size	Household Size
Box Dimensions	19"H x 19"W x 26"L
Weight	60 lbs
UPC	085462029820

Additional Resources

• Quick Guide (PDF)
• Owner's Manual (PDF)
• Brochure (PDF)

Product Overview Video

Safety Information

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
