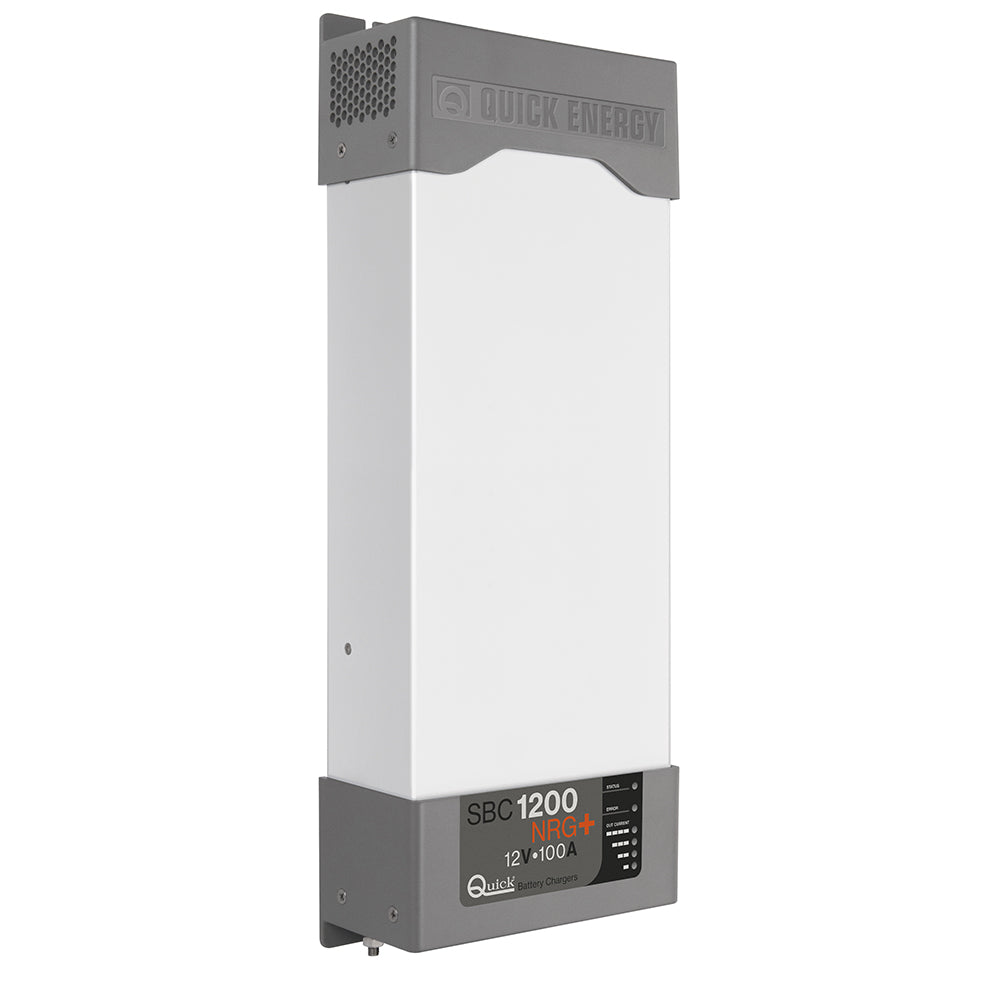

Quick SBC 1200 NRG+ Series Battery Charger - 12V - 100A - 3-Bank

The SBC 1200 NRG+ Series Battery Charger is a robust 12V, 100A, 3-bank charger engineered specifically for marine and boating applications. Drawing from extensive nautical experience, the NRG+ series offers exceptional performance and reliability, ensuring your vessel's batteries are charged efficiently and safely.

Why Choose the SBC NRG+ Battery Charger?

• Three-Stage IUoU Charging: Optimizes battery health and longevity with precise charging phases.
• High Efficiency: Delivers rapid and reliable charging, reducing downtime on your vessel.
• Multiple Outputs: Charge multiple battery groups simultaneously with built-in MOSFET charge separators.
• Versatile Battery Compatibility: Supports open or sealed liquid electrolyte, Gel, AGM, Optima®, and Li-Ion batteries.
• Integrated Output Fuses: Enhances safety by protecting each output individually.
• Stable Performance: Supplies full power even with low AC mains voltage, ensuring consistent charging.
• Expandable Configuration: Connect up to three chargers in parallel for shared current through digital control.
• Low Residual Fluctuation: Maintains stable power delivery with minimal output fluctuations.
• Universal AC Input: Compatible with a wide range of power sources, including generators, with input of 264 ÷ 83 Vac and 45 ÷ 66 Hz.
• Power Factor of 1: Ensures efficient energy usage for optimal performance.
• Comprehensive Protection: Features short circuit, overloading, output overvoltage, and overheating protection.
• Wide Temperature Range: Operates reliably in diverse marine environments with varying ambient temperatures.
• Efficient Cooling: Variable speed cooling fan adjusts to maintain optimal thermal conditions.
• User-Friendly Interface: LED indicators display status, errors, and output current for easy monitoring.
• Advanced Display Options: Optional backlit LCD terminal with multi-language interface for enhanced usability.
• Temperature-Compensated Charging: Adjusts charge based on battery temperature with one sensor included and additional sensors available.

Technical Specifications

Feature	Details
Input Voltage	120/230V AC
Portable	No
Charging Banks	3
Output Voltage	12V
Output Current	100A
Dimensions	6" H x 13" W x 23" L
Weight	12.9 lbs
UPC	8057090147834

For detailed instructions and additional information, please refer to the Owner's Manual (PDF).
