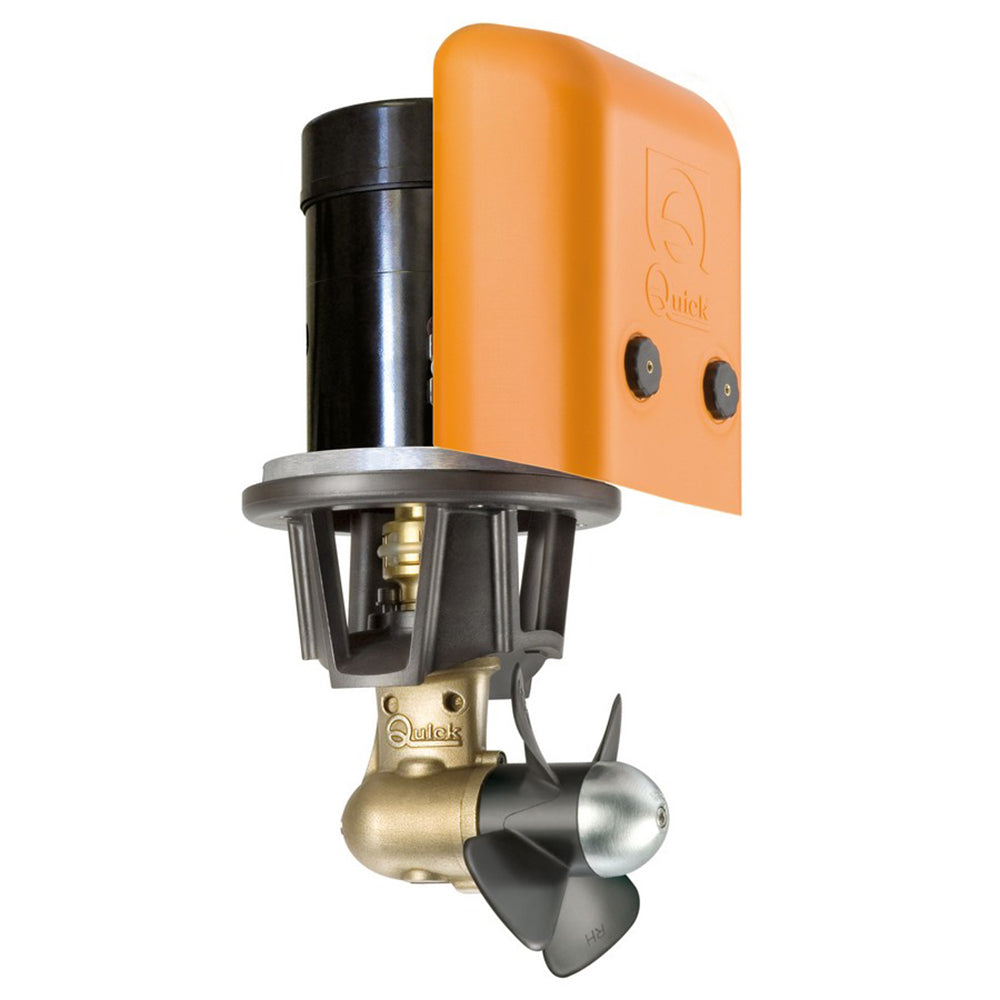

Quick Bow Thruster BTQ 140-40 40KGF - 12V - D140 - 2.2kW

Enhance your vessel's maneuverability and safety with the Bow Thruster BTQ 140-40. Engineered for optimal performance, this 12V bow thruster delivers a robust 2.2kW power output and a thrust rating of 40KGF, ensuring precise control in various marine conditions.

Exceptional Thrust and Efficiency

The BTQ 140-40 features high-performance 4-blade propellers crafted from durable composite materials, ensuring longevity and resistance in all marine environments. The counter-rotating system enhances thrust performance while minimizing electrical current absorption, providing efficient operation under varying conditions.

Advanced Features

• Dual-Directional Gearbox: Designed to maintain consistent propeller behavior regardless of the operating direction, ensuring reliable performance both port and starboard.
• Hydrodynamic Gearleg: The bronze propeller gearleg incorporates a hydrodynamic profile that significantly reduces turbulence, promoting smoother and quieter operation.
• Maintenance-Free Design: Built with highly resistant components and a lifetime lubrication seal, the BTQ 140-40 requires no regular maintenance, offering peace of mind to boat owners.
• Replaceable Anodic Protection: Features anodic aluminum protection that is easily replaceable. Even in cases of total anode corrosion, the propeller remains securely attached to the pod, preventing loss.
• Quick Design Elastic Joint: An exclusive feature that optimizes the alignment between the motor and gearbox. This elastic joint acts as an even tension device, protecting the bow thruster system from shocks and ensuring superior operational stability.

Superior Motor Technology

The BTQ 140-40 is equipped with motors made from new-generation materials, guaranteeing consistent output and maximum performance. These motors are built to withstand the harsh conditions typical of marine applications, ensuring reliable thrust when you need it most.

Enhanced Safety Systems

Safety is paramount with the BTQ 140-40. The TMS remote circuit breaker system automatically shuts off power to the motor if relays overheat, preventing potential damage. Additionally, the motor temperature sensors manage overheating through sophisticated software integrated into the touch or joystick panels, eliminating the need for separate thermic sensors and ensuring the bow thruster operates safely at all times.

Technical Specifications
