Quick Bow Thruster BTQ 140-30 30KGF - 12V - D140 - 1.5kW

The BTQ 140-30 30KGF Bow Thruster is engineered to provide exceptional maneuverability and reliability for your vessel. Designed for both recreational and professional marine applications, this 12V, 1.5kW bow thruster ensures optimal thrust and minimal energy consumption, enhancing your boating experience in all conditions.

Unmatched Performance and Efficiency

The BTQ 140-30 features 4-blade composite propellers that deliver maximum thrust while significantly reducing current absorption. These robust propellers are built to withstand harsh marine environments, ensuring longevity and consistent performance. The innovative counter-rotating system enhances thrust capabilities, allowing seamless operation in both forward and reverse directions. Each propeller is specifically designed for the left and right sides, guaranteeing balanced and reliable performance regardless of the maneuvering direction.

Key Features

• Dual Direction Gearbox: The intelligently designed gearbox ensures that the propeller behavior remains consistent and unaffected when operating in either direction, providing smooth and reliable thrust.
• Hydrodynamic Propeller Gearleg: Crafted from bronze, the propeller gearleg features a hydrodynamic profile that minimizes turbulence, enhancing efficiency and reducing wear.
• Low-Maintenance Design: Built with highly resistant components, the bow thruster requires no regular maintenance. The specialized lubrication seal is designed to last the lifetime of the thruster, ensuring uninterrupted performance.
• Durable Anodic Aluminum Protection: The anodic aluminum protection can be easily replaced. In the event of total corrosion of the anode, the propeller remains securely fixed to the pod, independent of the anode’s condition.
• Exclusive Quick Design Elastic Joint: This unique feature optimizes the alignment between the motor and gearbox. It acts as an even tension device, protecting the operating system from shocks and impulses, thereby enhancing the overall durability and performance of the bow thruster.

Advanced Motor Technology

The BTQ 140-30 is equipped with state-of-the-art motors constructed from new-generation materials. These materials are selected to consistently deliver the required output and maintain maximum performance, even under the most demanding marine conditions. This ensures that your bow thruster remains reliable and efficient throughout its service life.

Superior Safety Features

Safety is a paramount concern with the BTQ 140-30 Bow Thruster. In the event of relay failure or melting, the TMS remote circuit breaker system automatically cuts off power to the motor from any location equipped with TDC panels or TSC emergency mushroom panels. Additionally, the motors are equipped with temperature sensors that operate independently of external thermic sensors, ensuring that maximum power is always available when needed. Overheating protection is managed by sophisticated software integrated into the touch panel or joystick panel, providing an extra layer of security and reliability.

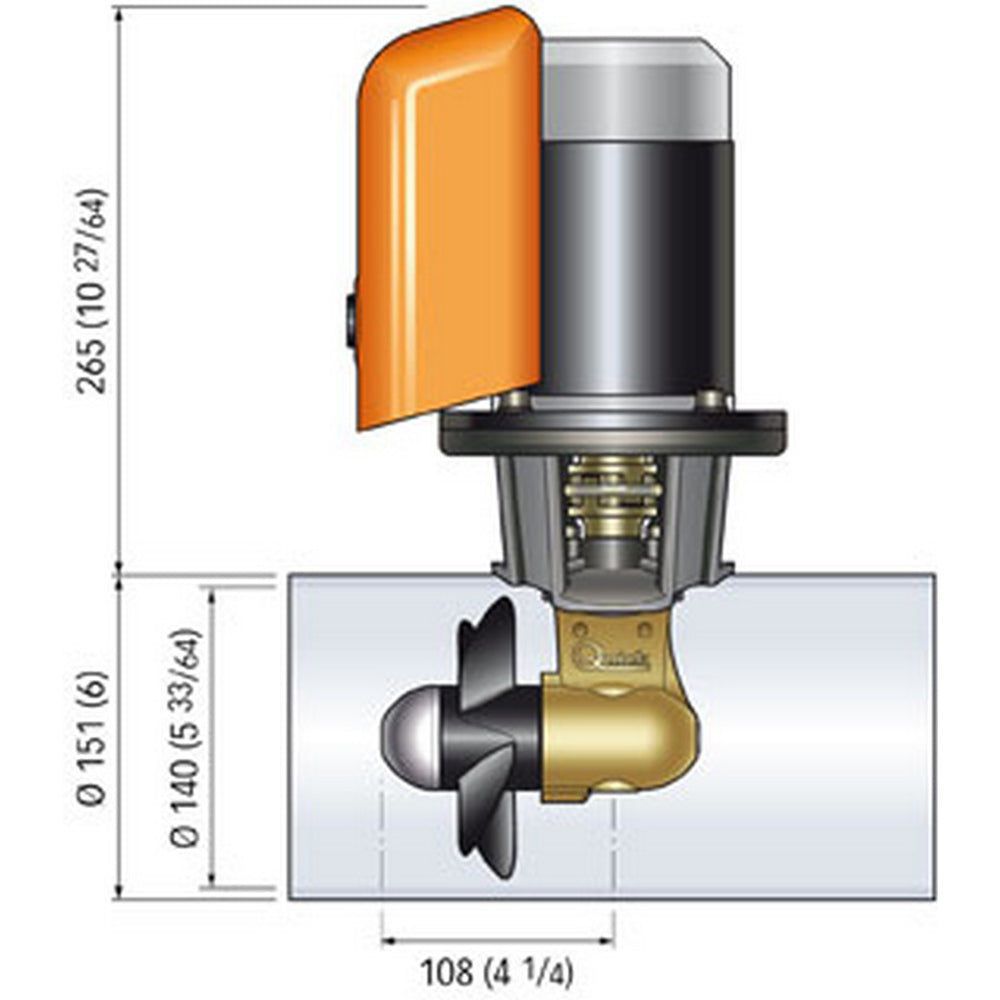

Technical Specifications

Upgrade your vessel with the BTQ 140-30 Bow Thruster and experience enhanced maneuverability, reliability, and safety on the water.
