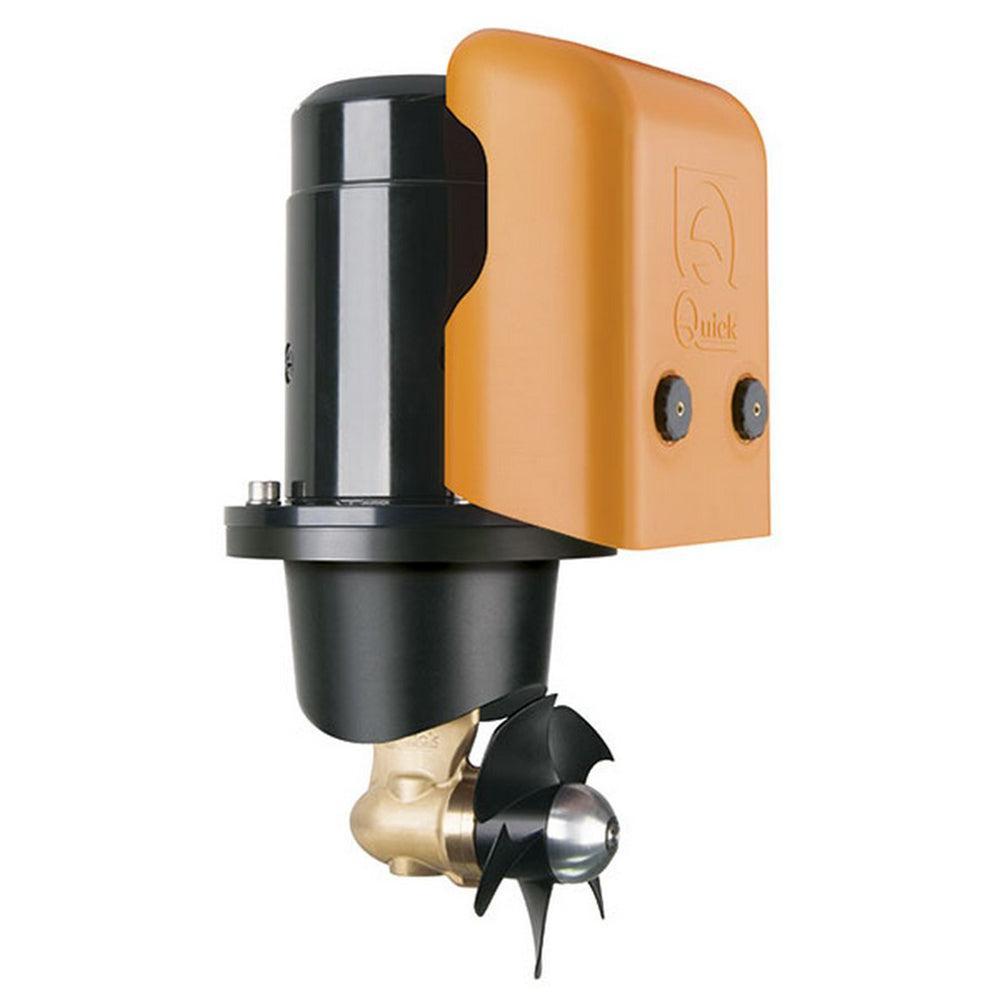

Quick Bow Thruster BTQ 110-25 25KGF - 12V - D110 - 1.3kW

The BTQ 110-25 Bow Thruster is a high-performance marine propulsion system designed to enhance your vessel's maneuverability and control. Equipped with a powerful 1.3kW motor and durable composite 4-blade propellers, this bow thruster delivers reliable performance in various marine conditions while optimizing energy efficiency.

Product Specifications

Advanced Propeller Design

The BTQ 110-25 features 4-blade composite propellers that ensure maximum thrust performance while reducing current absorption. Crafted from durable composite materials, these propellers resist harsh marine environments and provide consistent performance. The counter-rotating system enhances thrust efficiency, and the propellers are specifically designed for both left and right sides to maintain optimal performance in both directions.

Key Features

• Dual-Directional Gearbox: Engineered to maintain consistent propeller behavior regardless of the direction of operation.
• Hydrodynamic Gearleg: The bronze gearleg features a hydrodynamic profile that minimizes turbulence, enhancing overall efficiency.
• Low Maintenance: Constructed with highly resistant components that provide a lifetime lubrication seal, eliminating the need for regular maintenance.
• Replaceable Anodic Protection: Easily replace anodic aluminum protection. The propeller remains securely attached to the pod even if the anode is fully corroded.
• Quick Design Elastic Joint: An exclusive elastic joint optimizes the alignment between the motor and gearbox, acting as an even tension device to protect the system from shocks, ensuring superior operational stability.

Powerful and Reliable Motors

Our bow thrusters are equipped with new-generation motors built from advanced materials to consistently deliver the necessary output and performance, even under the most demanding marine conditions. Designed for longevity and efficiency, these motors ensure your vessel remains highly maneuverable at all times.

Enhanced Safety Features

The BTQ 110-25 incorporates top-tier safety mechanisms to protect both your vessel and the thruster system. In the event of relay failure, the TMS remote circuit breaker system promptly shuts off power to the motor from any TDC panels or TSC emergency mushroom panels. Additionally, the motor temperature sensors operate independently of the thermic sensors, allowing the thruster to provide maximum power when needed. Overheating protection is managed by the sophisticated software within the touch panel or joystick panel, ensuring reliable and safe operation.
