PTM Watersports VX-140 Center Console Mirror w/Tube Mount - White

The VX-140 Center Console Mirror with Tube Mount - White is an essential upgrade for your marine vessel, providing superior visibility and durability to enhance your boating experience. Engineered specifically for hardtops, this mirror ensures you have a clear and wide-ranging view, essential for safe navigation on the water.

Product Overview

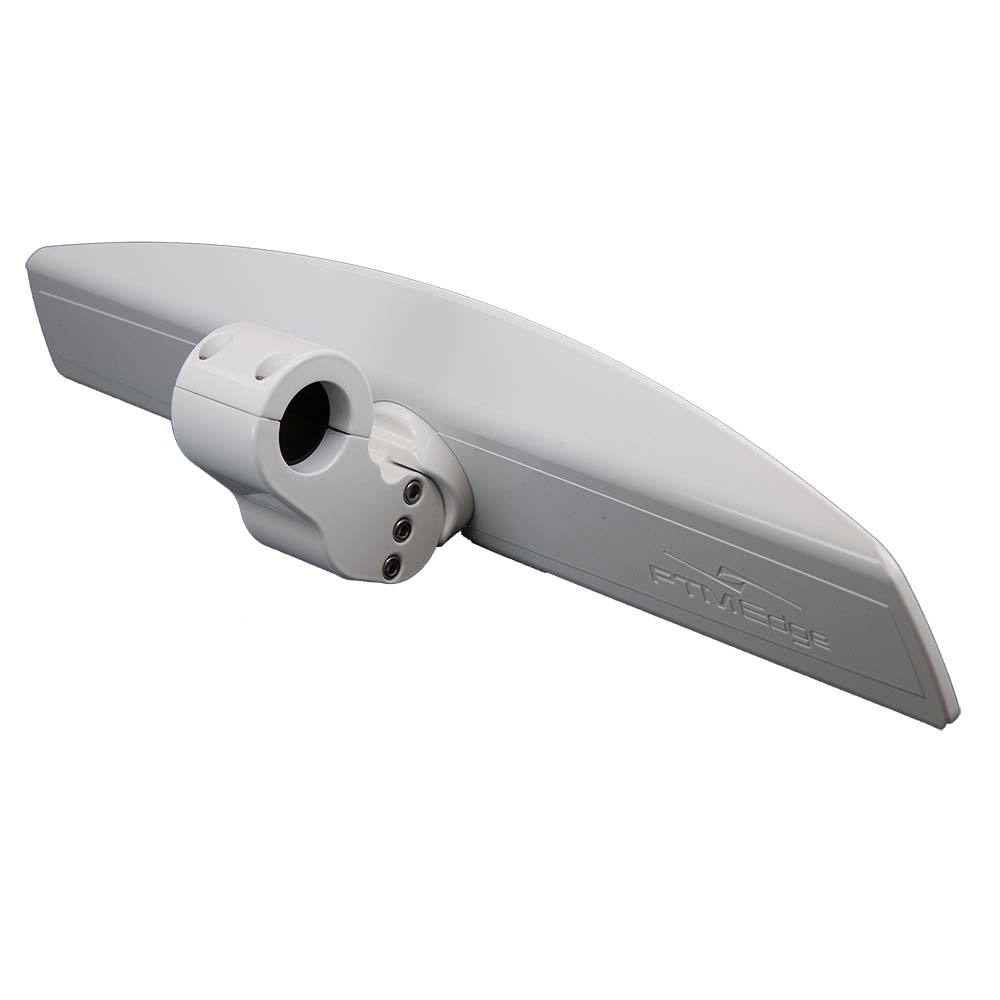

The VX-140 Center Console Blade Mirror seamlessly combines the high-definition VX-140 Blade Mirror with a sturdy billet aluminum bracket. This design allows for secure mounting to a structural tube on your hardtop, ensuring stability and longevity even in harsh marine environments.

Key Features

• High-Definition Mirror: The HD, prescription-grade mirror measures 4.5″ x 20″, offering a sharp and clear reflection for optimal visibility.
• Wide Viewing Range: With a 140-degree viewing angle, this mirror minimizes blind spots, enhancing your situational awareness while navigating.
• Durable Construction: Both the mirror and bracket are white powder-coated, providing excellent resistance against saltwater corrosion and ensuring years of reliable performance.
• Secure Mounting: Designed to fit a 1" nominal pipe with an actual outside diameter of 1.315", the billet aluminum bracket guarantees a firm and stable installation on your hardtop's structural tube.
• Complete Installation Kit: All necessary mounting hardware is included, simplifying the installation process and ensuring a hassle-free setup.

Specifications

Dimension	4.5″ (Height) x 20″ (Width)
Viewing Angle	140 degrees
Mounting Pipe Size	1" nominal (actual OD 1.315")
Material	Billet Aluminum Bracket, Powder-Coated Finish
Color	White
Compatibility	Designed for structural tubes on hardtops

Installation Instructions

Installing the VX-140 Center Console Mirror is straightforward. Follow these steps to ensure a proper and secure fit:

1. Identify a suitable structural tube on your hardtop with an actual outside diameter of 1.315".
2. Position the billet aluminum bracket onto the tube, ensuring it sits flush and is aligned correctly for optimal viewing.
3. Use the included mounting hardware to secure the bracket firmly to the tube.
4. Attach the VX-140 Blade Mirror to the bracket, adjusting the angle as needed to achieve the desired viewing range.
5. Double-check all connections to ensure stability and security.

Note: If the pipe or tube measures exactly 1", the mount may not affix firmly. Ensure the correct pipe size for a secure installation.

Package Contents

• 1 x VX-140 Blade Mirror
• 1 x Billet Aluminum Bracket
• All necessary Mounting Hardware

Important:

• Cover not included
• Sold individually

For detailed installation guidance, please refer to the Quick Guide (PDF).
